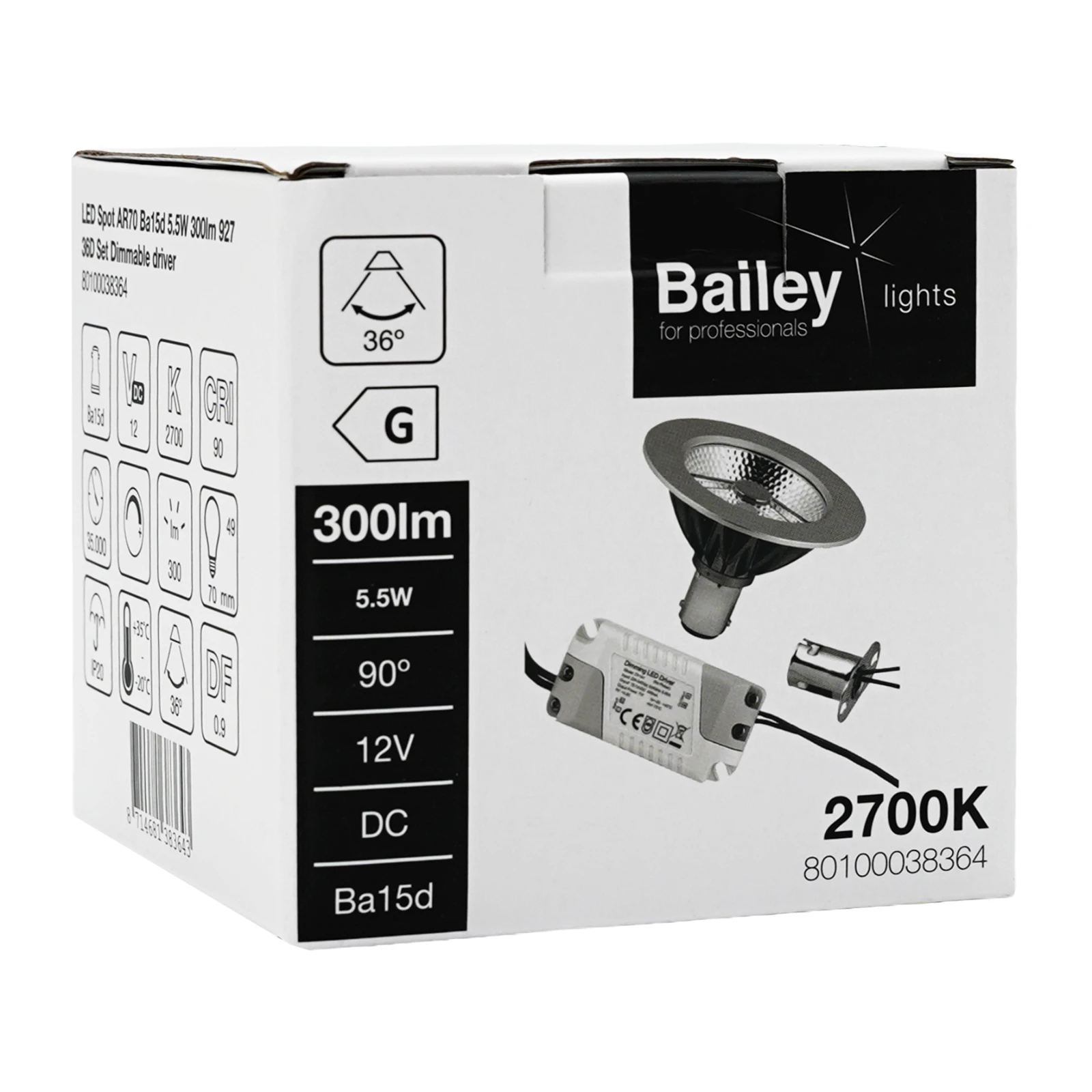

LED AR70 Ba15d 5.5W 300lm (35W) 927 36° Set Dimmable driver

Article number: 80100038364

BAI BaiSpot LED Reflector AR70 Ba15d 5.5W 2700K 36° 300lm (35W) Dimmable 70x49mm Incl driver (IN 230V-240V OUT 12V) System 7W and Ba15d holder Max. 1 lamp pér LED dimmer.

The so-called LED spotlights from the BaiSpot series are characterized by a much longer lifespan and significantly less energy consumption than their halogen predecessors. Due to their compact design they are easily interchangeable. This lamp is ideal for use in typical AR70 applications such as general lighting in shops, catering, and public buildings. Including dimmable driver (90x39x24mm) with an input voltage of 230V (output 12V) and Ba15d holder. With anti-glare to prevent unpleasant glare. This spot is further distinguished by its high CRI value (colour fastness index) of >90. Max. one lamp per LED dimmer (check dimminglist). Ambient temperature range: -20°C to +35°C

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

Click here for Eprel specifications

General ETIM properties

ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED AR70 Ba15d 5.5W 300lm (35W) 927 36° Set Dimmable driver
Brand
Bailey
Productseries
BaiSpot LED LV
Producttype
AR70 Dim set
GTIN
8714681383643
Manufacturer articlenumber
80100038364

ETIM specifications

Socket
BA15d
Luminous flux [lm]
300 - 300
Nominal voltage [V]
220 - 240
Lamp power [W]
5.5 - 7
Colour temperature [K]
2700 - 2700
Diameter [mm]
70
Length [mm]
49
Dimmable
Yes
Lamp shape
Reflector
Beam angle [°]
36 - 36
Colour
White
Type of glass/cover
None
Lamp designation
Other
Colour rendering index CRI
90-100
Voltage type
AC
Filament lamp
No
Luminous intensity [cd]
580
Rated luminous flux according to IEC 62612 [lm]
300
Power factor
0.9
Lamp efficacy [lm/W]
55
Nominal current [mA]
440 - 440
Colour of light according to EN 12464-1
Warm white < 3300 K
Housing colour
Grey
Average nominal lifetime [h]
35000
Degree of protection (IP)
IP20
Energy Efficiency Index (EEI)
0.22
Energy efficiency class
G
Colour consistency (McAdam ellipse)
SDCM5
Min. number of switching cycles
15000
Weighted energy consumption in 1000 hours [kWh]
7
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
Other
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
Yes
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
No
Energy efficiency class according to EU regulation 2019/2015
G
With twilight switch
No
Downloads
Dimmer compatibility list
BAI_DCL_80100038364.pdf
