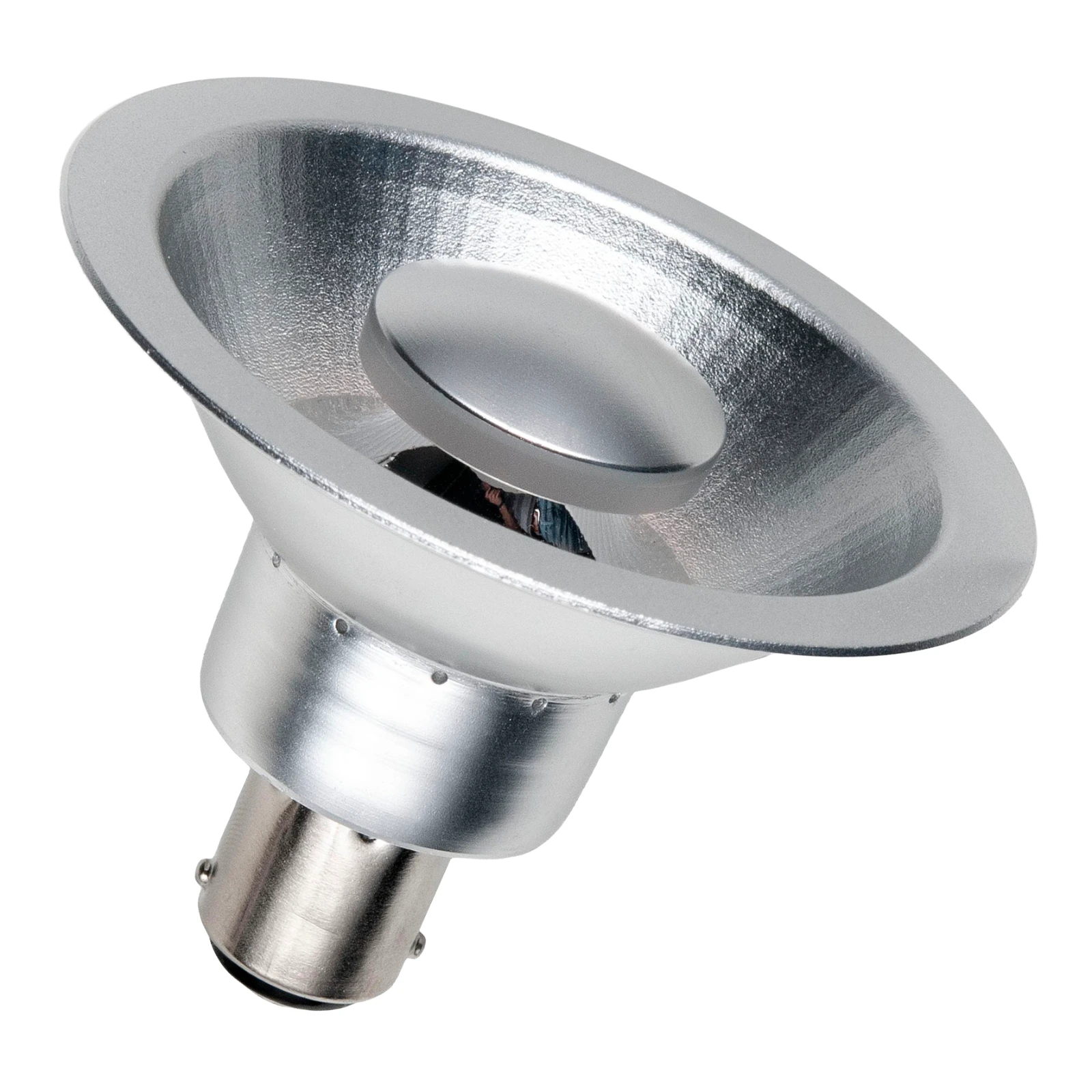

LED AR70 Ba15d DIM 12V 9W 430lm (35W) 927 35°
Article number: 142916
BEE LED AR70 Ba15d 12V AC/DC 9W 927 35° 430lm (35W) Dimmable 70x55mm
The graceful "anti-glare" bridge ensures that you are not dazzled by the LED. This lamp is ideal for use in typical AR70 applications such as general lighting in shops, restaurants and public buildings.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED AR70 Ba15d DIM 12V 9W 430lm (35W) 927 35°
Brand
Bailey
Productseries
LED Spot BEE
Producttype
AR70
GTIN
8714681429167
Manufacturer articlenumber
142916
ETIM specifications
Socket
BA15d
Luminous flux [lm]
387 - 473
Nominal voltage [V]
10 - 14
Lamp power [W]
8.5 - 9.5
Colour temperature [K]
2700 - 2700
Diameter [mm]
70
Length [mm]
55
Dimmable
Yes
Lamp shape
Reflector
Beam angle [°]
35 - 35
Colour
White
Type of glass/cover
None
Lamp designation
Other
Colour rendering index CRI
90-100
Voltage type
AC/DC
Filament lamp
No
Luminous intensity [cd]
3400
Rated luminous flux according to IEC 62612 [lm]
473
Power factor
0.9
Lamp efficacy [lm/W]
53.68
Nominal current [mA]
679 - 850
Colour of light according to EN 12464-1
Neutral white 3300-5300 K
Housing colour
Grey
Average nominal lifetime [h]
25000
Degree of protection (IP)
IP20
Energy Efficiency Index (EEI)
0.242
Energy efficiency class
G
Colour consistency (McAdam ellipse)
SDCM3
Min. number of switching cycles
30000
Weighted energy consumption in 1000 hours [kWh]
9
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
Yes
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
No
Energy efficiency class according to EU regulation 2019/2015
G
With twilight switch
No
