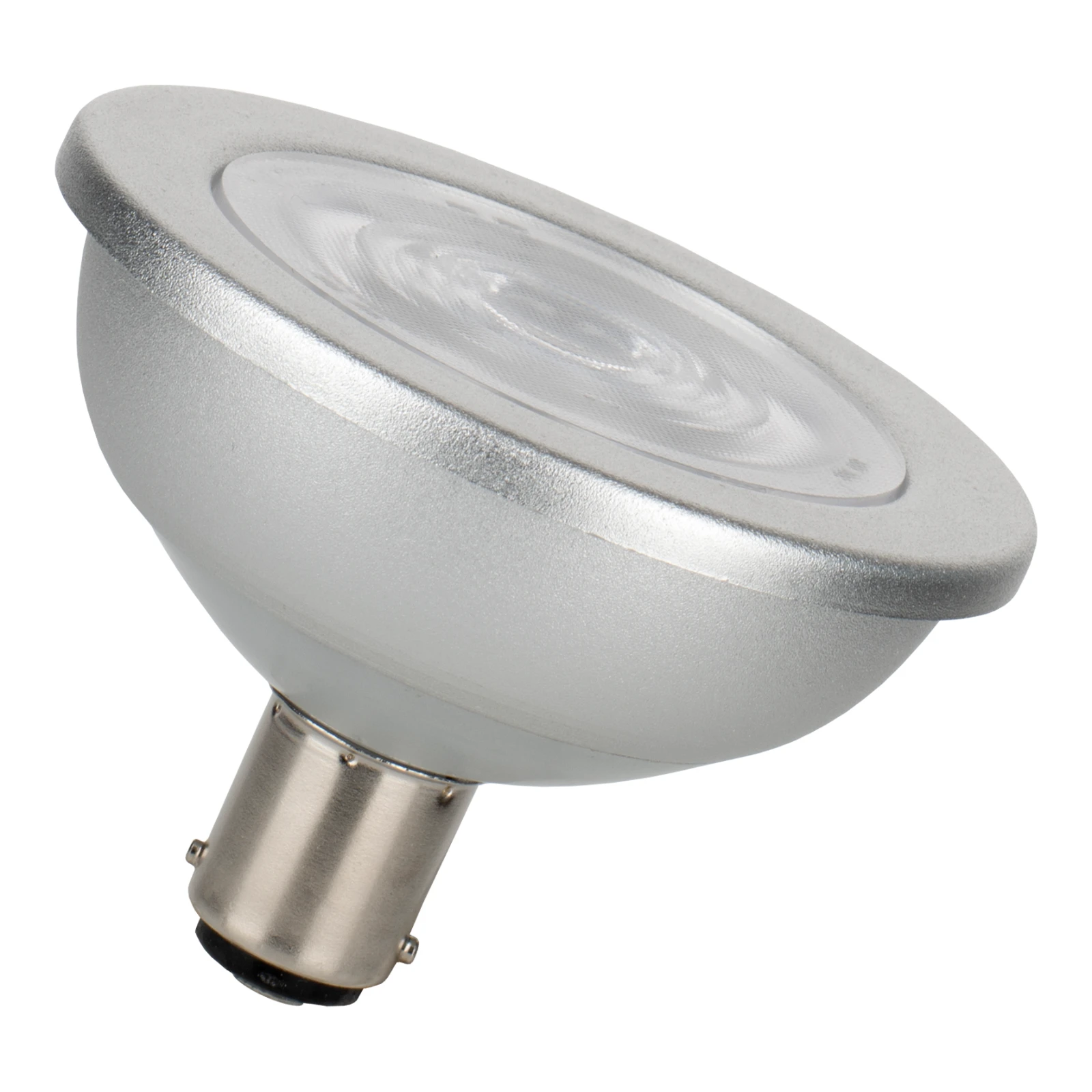

LED Spot AR70 Ba15d 12V DIM 8W (50W) 610lm 827 35°

Article number: 143325

BAI BaiSpot LED Reflector AR70 Ba15d 8W 2700K 35° 610lm (50W) Dimmable 12V AC/DC 70x51mm Alt. 41990FL LED-lamp

The so-called LED spotlights from the BaiSpot series are characterized by a much longer lifespan and considerably lower energy consumption than their halogen predecessors. Due to the compact design, they are easily interchangeable. This lamp is ideal for use in typical AR70 applications such as general lighting in shops, catering, and public buildings. With the right dimmer, these lamps are dimmable. Consult the dimmer list on the Bailey site for this. We recommend the Bailey Wonderwall wall dimmer. Ambient temperature range: -20°C to +40°C

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

Click here for Eprel specifications

General ETIM properties

ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED Spot AR70 Ba15d 12V DIM 8W (50W) 610lm 827 35°
Brand
Bailey
Productseries
BaiSpot LED LV
Producttype
AR70 DIM
GTIN
8714681433256
Manufacturer articlenumber
143325

ETIM specifications

Socket
BA15d
Luminous flux [lm]
610 - 610
Nominal voltage [V]
12 - 12
Lamp power [W]
8 - 8
Colour temperature [K]
2700 - 2700
Diameter [mm]
70
Length [mm]
51
Dimmable
Yes
Lamp shape
Reflector
Beam angle [°]
35 - 35
Colour
White
Type of glass/cover
Prism
Lamp designation
Other
Colour rendering index CRI
80-89
Voltage type
AC/DC
Filament lamp
No
Luminous intensity [cd]
2300
Rated luminous flux according to IEC 62612 [lm]
610
Power factor
0.7
Lamp efficacy [lm/W]
76
Nominal current [mA]
160 - 160
Colour of light according to EN 12464-1
Warm white < 3300 K
Housing colour
Grey
Average nominal lifetime [h]
30000
Degree of protection (IP)
IP20
Energy Efficiency Index (EEI)
0.18
Energy efficiency class
G
Colour consistency (McAdam ellipse)
SDCM6
Min. number of switching cycles
15000
Weighted energy consumption in 1000 hours [kWh]
8
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG1
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
Yes
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
No
Energy efficiency class according to EU regulation 2019/2015
G
With twilight switch
No
