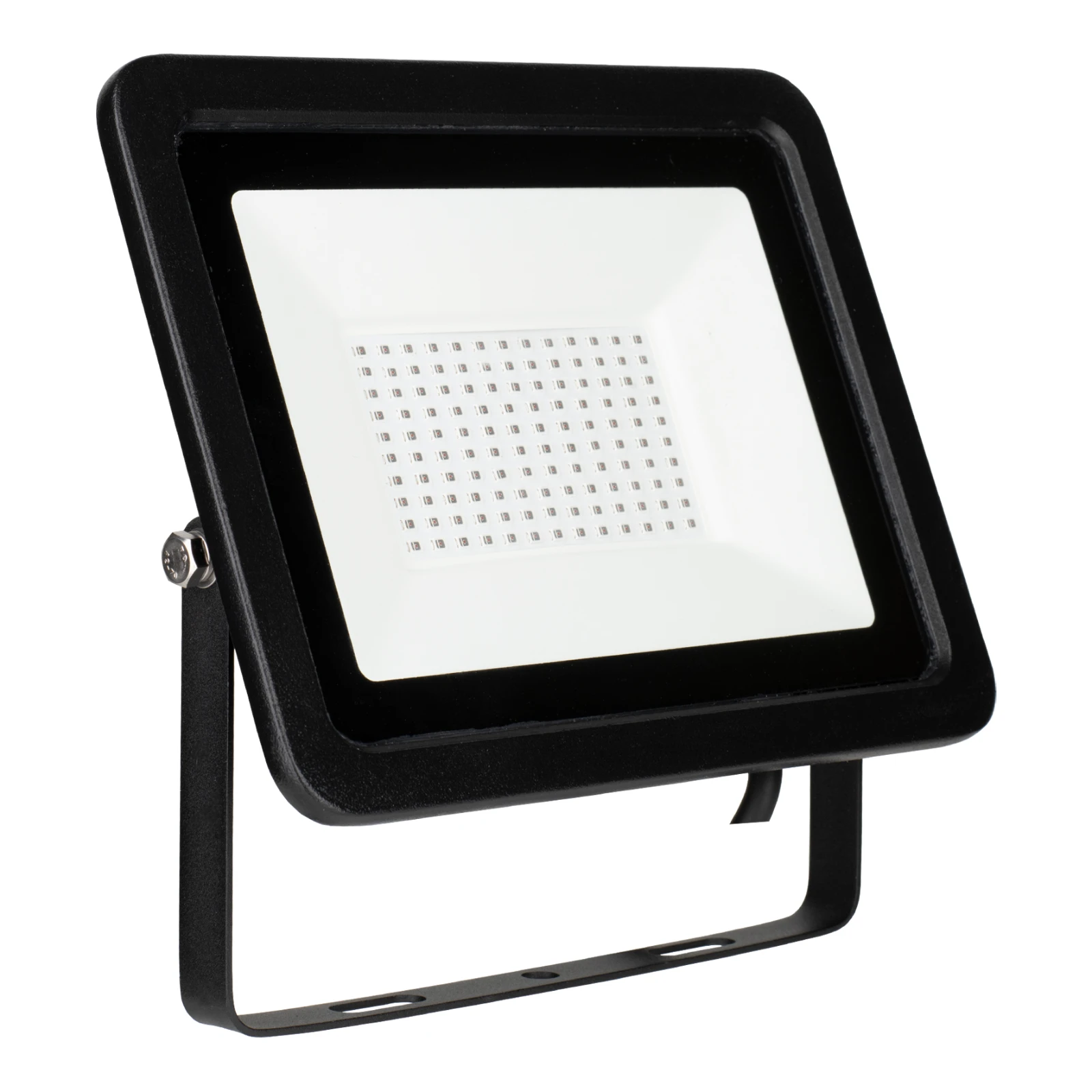

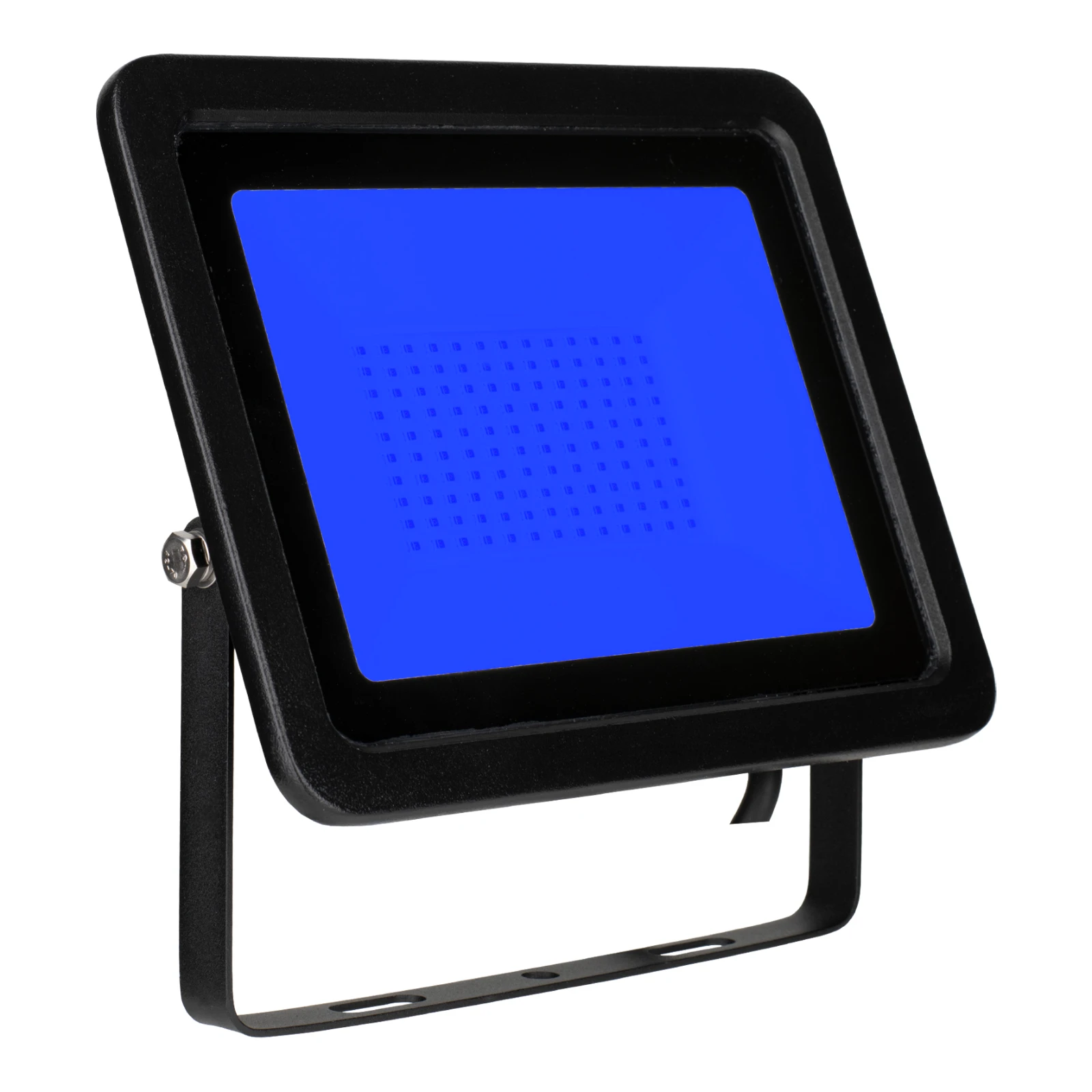

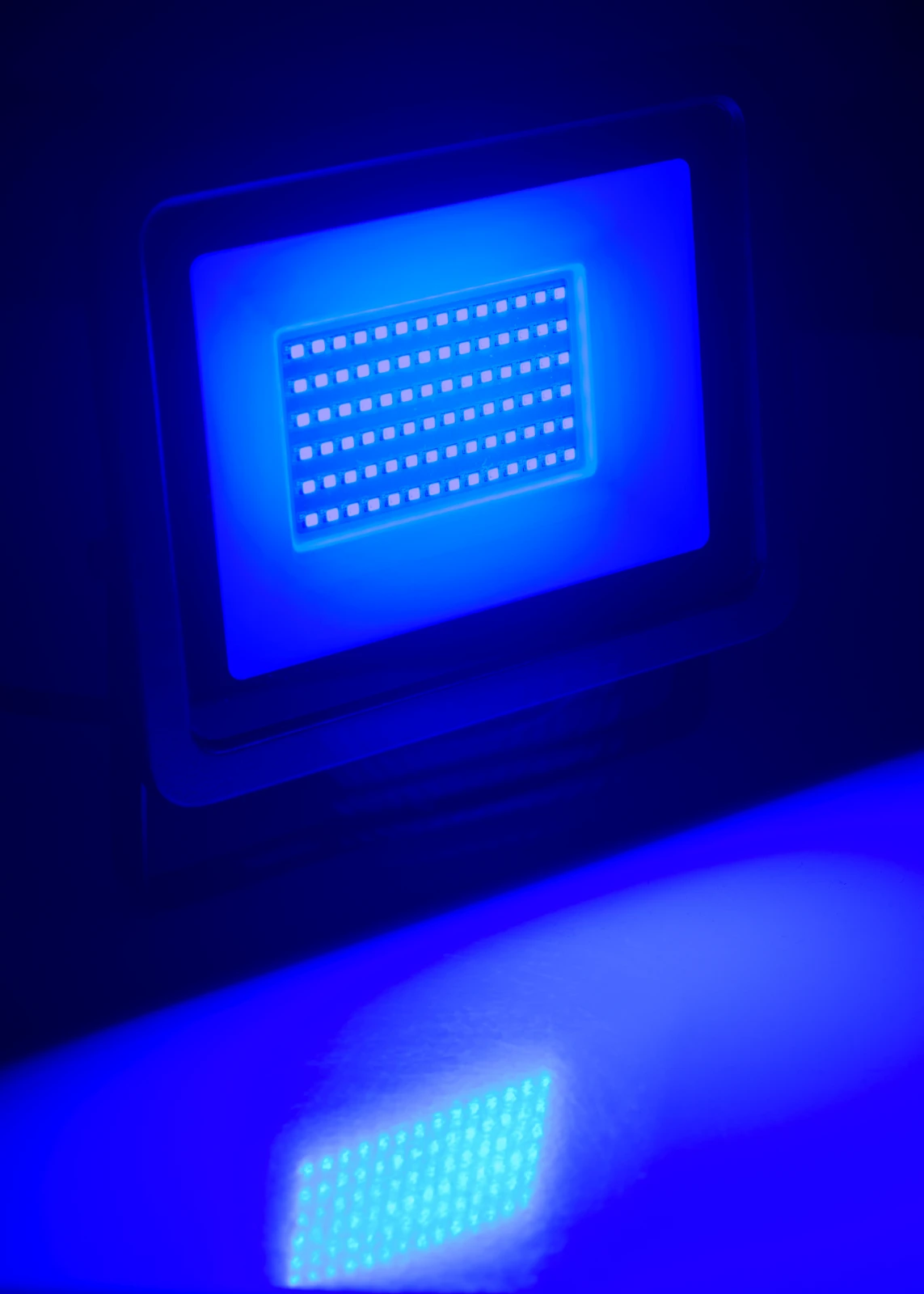

LED Floodlight Colour 50W Blue IP65
Article number: 145750
BAI BaiColour LED Floodlight Colour 50W Blue 1000lm IP65 Alu housing black Clear glass 120° 0.5m cable LED Floodlight

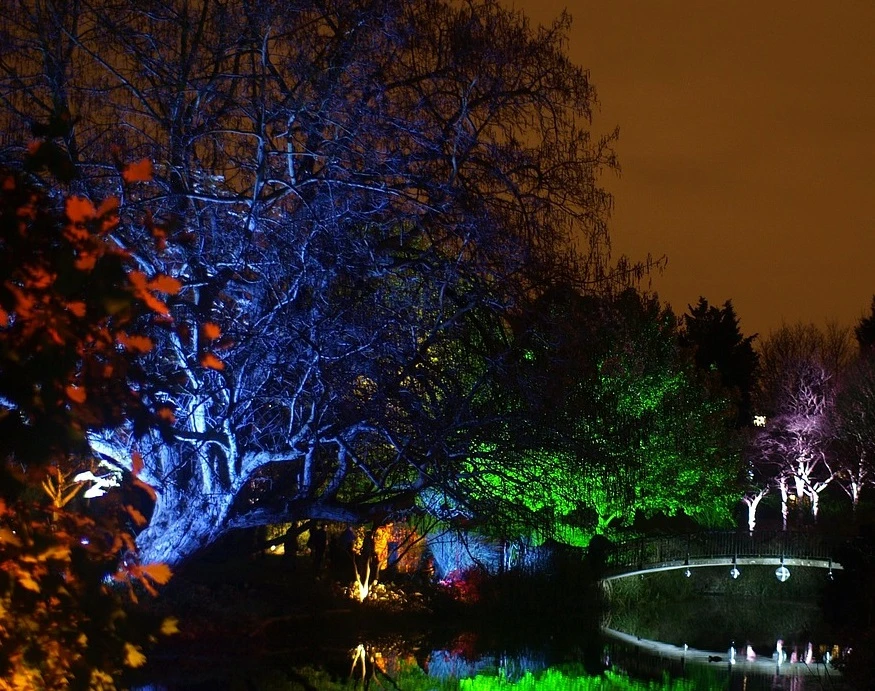

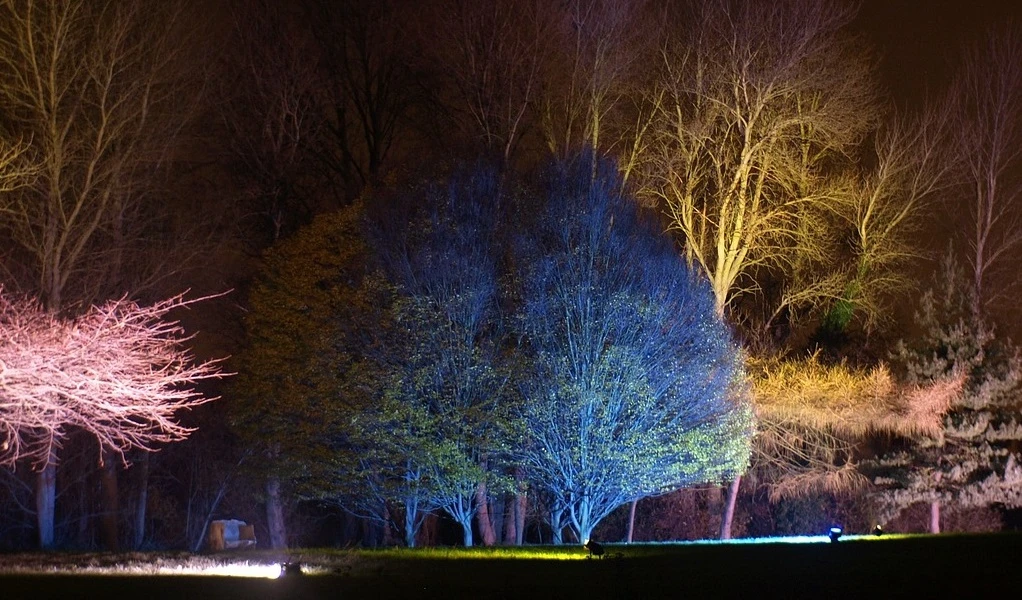

Ideal for holidays, festivals, terraces, beer garden, amusement parks or for other festive decorations. Ambient temperature: -35°C to +45°C.
Please read the manual before use. As surge protection till 10kV we advise our item number 140440.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Luminaires
ETIM class
Downlight/spot/floodlight
Name
LED Floodlight Colour 50W Blue IP65
Brand
Bailey
Productseries
LED Floodlight colour
Producttype
Blue
GTIN
8714681457504
Manufacturer articlenumber
145750
ETIM specifications
Luminous flux [lm]
1000 - 1000
Max. system power [W]
50
Colour temperature [K]
10000 - 10000
Nominal voltage [V]
220 - 240
With movement sensor
No
Lamp holder
None
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Adjustability
Swivelling
With light sensor
No
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
Grey
Material cover
Glass transparent
Surface brushed
No
Voltage type
AC
LED nominal current at constant current [mA]
300 - 300
Type of control gear
LED operating device current-controlled
With control gear
Yes
Exchangeable control gear
No
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Reflector
Matt
Light distributor
Reflector
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Energy efficiency class of the built-in lamp
Other
Rated lifetime L70/B50 at 25 °C [h]
30000
Rated life time L80/B10 at 25 °C [h]
30000
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) [%]
90
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) [%]
87
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) [%]
76
Degree of protection (IP)
IP65
Degree of protection (NEMA)
4
Impact strength
IK08
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1 [°C]
-35 - 45
Suitable for lamp power [W]
50 - 50
Colour of light
Blue
Emergency power supply system
None
Rated luminous flux according to IEC 62722-2-1 [lm]
1000
Constant light output (CLO)
Yes
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Width [mm]
160
Height/depth [mm]
34
Length [mm]
206
Type of wiring
Suitable for loop-through wiring
Conductor cross section [mm²]
1
Connection type
Free conductor end
Power factor
0.9
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Luminaire efficacy [lm/W]
20
Dimmable
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Number of poles
3
Suitable for workplace according to EN 12464-1
No
Compatible with Apple HomeKit
No
Dimming Sine Wave Reduction
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
With presence detector
No
IFTTT support available
No
Containing product according to 2019/2020/EU
No
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP65
Rated luminous flux according to IEC 62722-2- 1 [lm]
1000 - 1000
Luminaire efficacy [lm/W]
20 - 20
Compatible with Casambi
No
UK Building Regs Part B fire rated - 30 minutes
No
UK Building Regs Part B fire rated - 60 minutes
No
UK Building Regs Part B fire rated - 90 minutes
No
