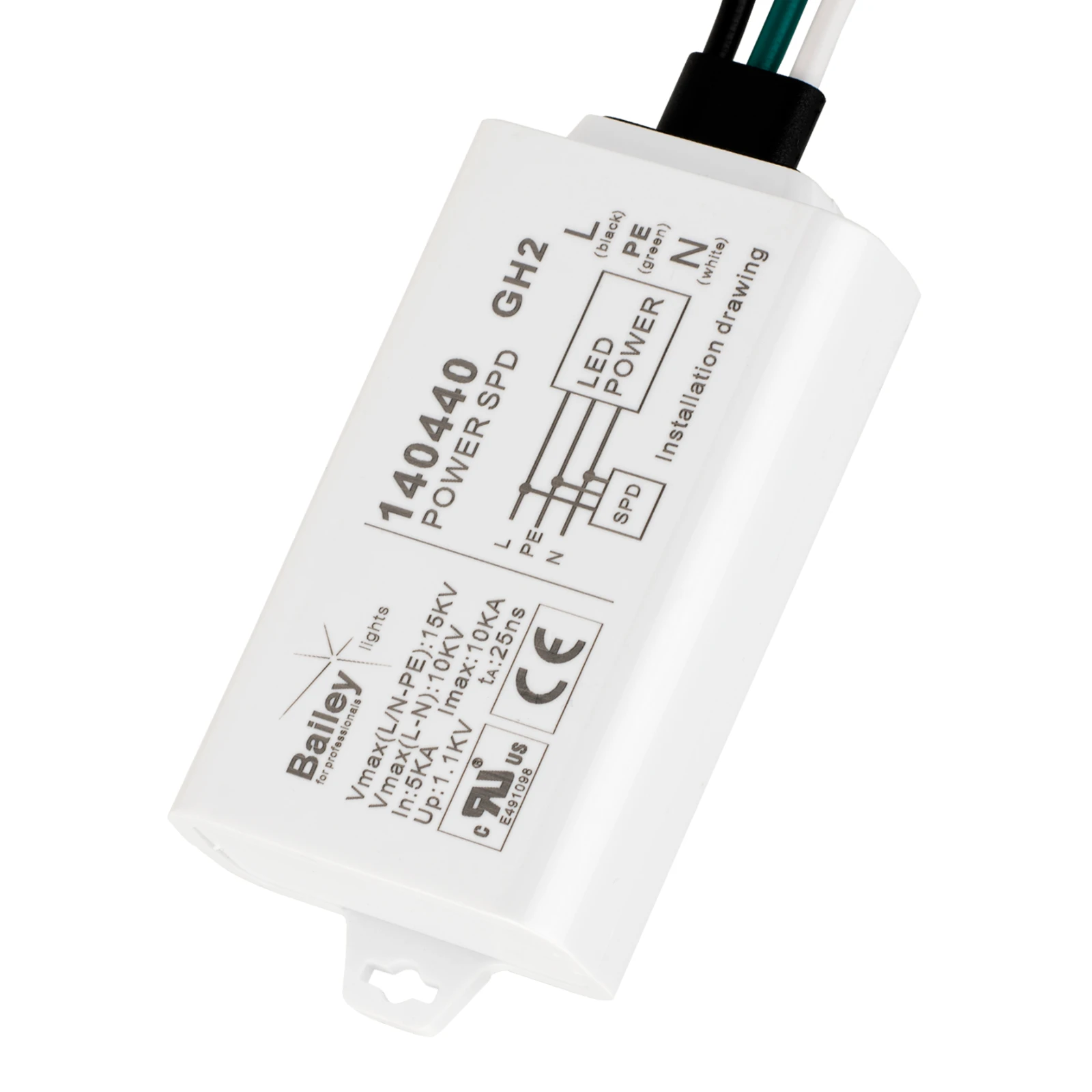

Surge Protection Device (SPD) 10KV 110-277V IP65
Article number: 140440
BAI Surge Protection Device LED Vmax (L-N) 10KV 100-277V/AC IP65 Up:1.1KV Ta:25ns 3x1.5mm²
SPD (Surge Protection Device/module). Serves as an extra protection against induced overvoltage, lightning strikes or certain switching operations, this overvoltage protection module can be connected, so that you can protect the lamp or fixture up to 10kV. Rated Voltage: 110-277Vac, Vmax (L-N) 10KV, IP65, Up: 1.1KV, Ta: 25ns, 3x1.5mm2.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Earthing, lightning and surge protection
ETIM class
Surge protection device for power supply systems
Name
Surge Protection Device (SPD) 10KV 110-277V IP65
Brand
Bailey
Productseries
Accessories
Producttype
Surge protection device
GTIN
8714681404409
Manufacturer articlenumber
140440
ETIM specifications
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
Yes
Number of conductors (without earthing)
2
Nominal discharge surge current (8/20) [kA]
5
Max. discharge surge current (8/20) [kA]
10
Nominal voltage AC [V]
277
Max. continuous voltage AC [V]
300
Voltage protection level [kV]
1.1
Voltage protection level L-N [kV]
5
Voltage protection level N-PE [kV]
10
Integrated short-circuit protection
No
Integrated short-circuit protection selective to fuse gG [A]
0
Integrated backup fuse
No
Leakage-current free
No
Mounting method
Other
Max. conductor cross section flexible (fine-strand) [mm²]
1.5
With remote signalling contact
No
Signalling at the device
None
Category type 2
No
Degree of protection (IP)
IP65
