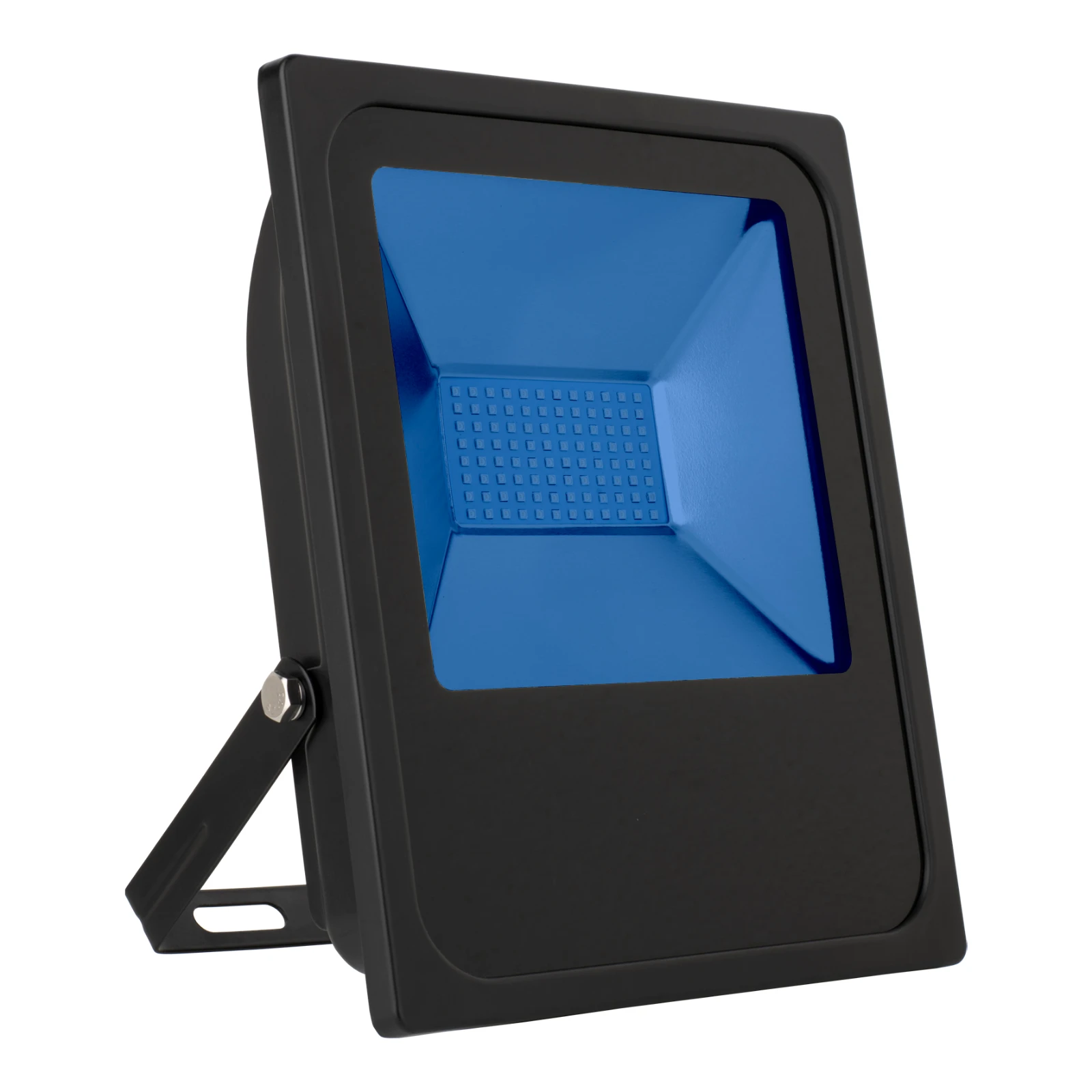

LED Floodlight Colour 50W Blue 100V-240V IP65

Article number: 145476

BAI BaiColour LED Floodlight 50W Blue 100-240V IP65 IK06 Alu housing black 120D 0.5m cable 285x240x60mm LED Floodlight

The Floodlight is also called a spotlight or construction lamp. The Led version consumes little power and lasts a long time so that they are more durable than the traditional predecessors. Can be mounted on both wall and ceiling. The housing is made of cast aluminum. The baiColour series brings a single-color spotlight for decorative lighting where the glass is clear glass and the LED chips are colored. Comes with 50 cm connection cable. Suitable for ambient temperatures from -20°C to +45°C. Consult specifications and warranty for installation.

No longer available!

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

General ETIM properties

ETIM group
Luminaires
ETIM class
Downlight/spot/floodlight
Name
LED Floodlight Colour 50W Blue 100V-240V IP65
Brand
Bailey
Productseries
LED Floodlight colour
Producttype
Blue
GTIN
8714681454763
Manufacturer articlenumber
145476

ETIM specifications

Luminous flux [lm]
500 - 500
Max. system power [W]
52
Colour temperature [K]
5000 - 5000
Nominal voltage [V]
100 - 240
With movement sensor
No
Lamp holder
None
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Adjustability
Swivelling
With light sensor
No
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Housing material
Glass
Surface protection
Powder coating
Housing colour
Black
Material cover
Glass transparent
Voltage type
AC
LED nominal current at constant current [mA]
1500 - 1500
Type of control gear
Low-loss ballast compensated
With control gear
Yes
Exchangeable control gear
No
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Reflector
High-gloss
Light distributor
Reflector
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Total harmonic distortion
10
Rated lifetime L70/B50 at 25 °C [h]
30000
Rated life time L80/B10 at 25 °C [h]
20000
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) [%]
90
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) [%]
60
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) [%]
50
Degree of protection (IP)
IP65
Degree of protection (NEMA)
4
Impact strength
IK06
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1 [°C]
25 - 25
Suitable for lamp power [W]
50 - 50
Colour of light
Blue
Emergency power supply system
None
Flickering value Pst LM
1
Constant light output (CLO)
Yes
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Stroboscope effect value SVM
0.8
Width [mm]
240
Height/depth [mm]
60
Length [mm]
285
Type of wiring
Ending
Connection type
Other
Power factor
0.9
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
None
Luminaire efficacy [lm/W]
10
Photobiological safety according to EN 62471
RG0
Dimmable
No
Unified Glare Ratio (UGR)
0
Covering of the luminaire with thermally insulating material possible
No
Number of poles
3
Suitable for workplace according to EN 12464-1
Yes
Nominal current [mA]
1500 - 1500
Compatible with Apple HomeKit
No
Dimming Sine Wave Reduction
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
With presence detector
No
IFTTT support available
No
Operation by Bluetooth
No
Total harmonic distortion (THD) [%]
10
Compatible with Casambi
No
UK Building Regs Part B fire rated - 30 minutes
No
UK Building Regs Part B fire rated - 60 minutes
No
UK Building Regs Part B fire rated - 90 minutes
No
Downloads
Manual
Manual_LedFloodlight_BaiColour50W-01.pdf

Successor
LED Floodlight Colour 50W Blue IP65

145750
