LED HID FIL T38 E27 17W 3200lm 727 Clear IP20 AC 220V-260V

Article number: 146453

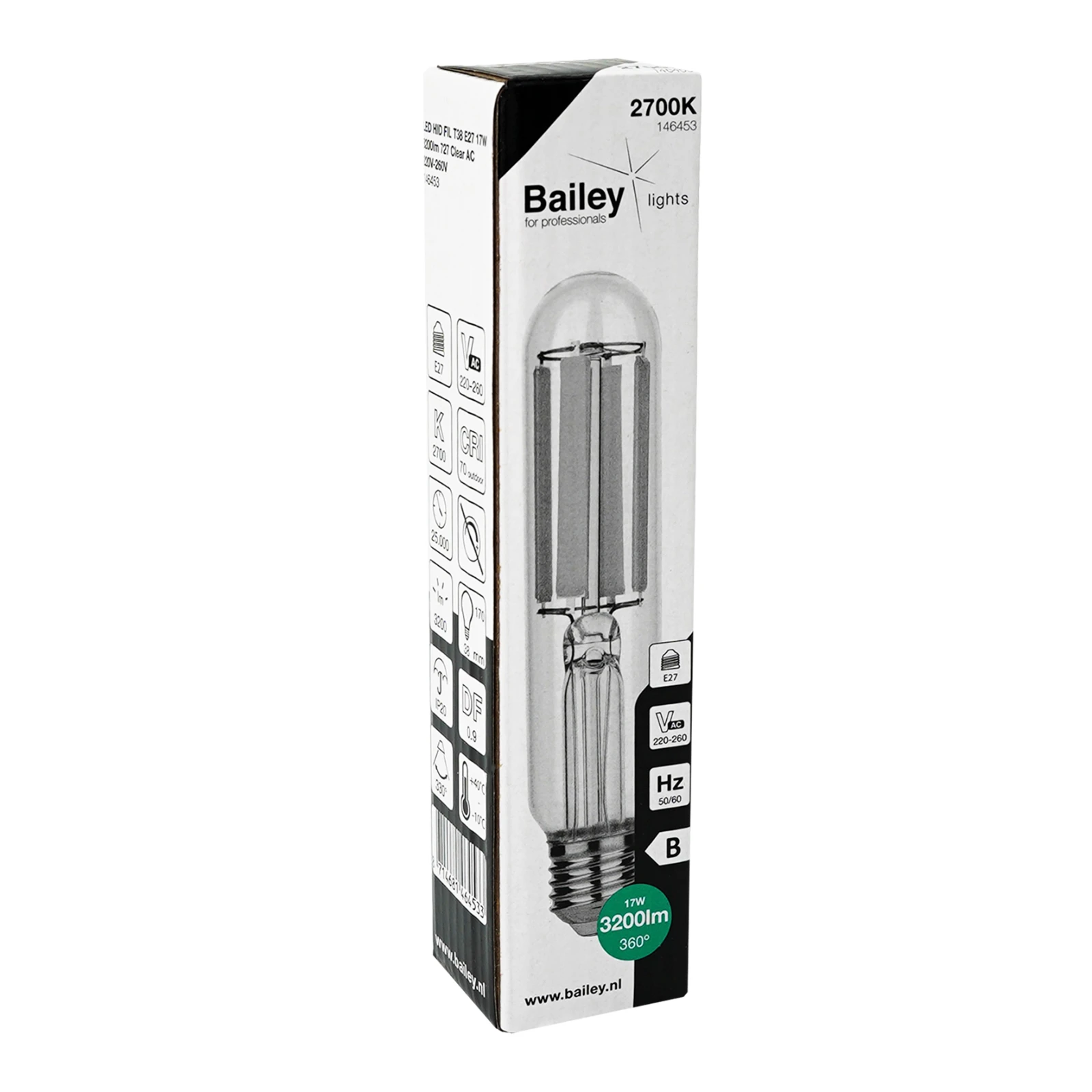

BAI LED HID Filament Tube E27 17W (50W) 3200lm 2700K CRI70 Clear AC 220V-260V 330° 38X170mm IP20 Alt. NAV-T SON-T LED-Lamp

The LED HID tubular filament lamps are lamps with a high power and a high light output. These LED lamps can serve as a replacement for traditional gas discharge lamps (such as NAV-T and SON-T) under most circumstances. They are similar in shape and look. They light all around and approximately have the same light appearance. But are a lot more durable in use. Traditionally used in luminaires that illuminate paths and areas. The fixture must be suitable for outdoor use and must not become too hot (up to 40°C max.). Ambient temperature: -10°C to +40°C.

Please read the manual before use.

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

Click here for Eprel specifications

General ETIM properties

ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED HID FIL T38 E27 17W 3200lm 727 Clear IP20 AC 220V-260V
Brand
Bailey
Productseries
LED HID Filament
Producttype
T38
GTIN
8714681464533
Manufacturer articlenumber
146453

ETIM specifications

Socket
E27
Luminous flux [lm]
3200 - 3200
Nominal voltage [V]
220 - 260
Lamp power [W]
17 - 17
Colour temperature [K]
2700 - 2700
Diameter [mm]
38
Length [mm]
170
Dimmable
No
Lamp shape
Tube, single-ended
Beam angle [°]
330 - 330
Colour
White
Type of glass/cover
Clear
Lamp designation
T38
Colour rendering index CRI
70-79
Voltage type
AC
Filament lamp
Yes
Rated luminous flux according to IEC 62612 [lm]
3200
Power factor
0.9
Lamp efficacy [lm/W]
188
Nominal current [mA]
130 - 130
Colour of light according to EN 12464-1
Warm white < 3300 K
Housing colour
Colourless
Average nominal lifetime [h]
25000
Degree of protection (IP)
IP20
Energy efficiency class
B
Colour consistency (McAdam ellipse)
SDCM6
Min. number of switching cycles
10000
Weighted energy consumption in 1000 hours [kWh]
17
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
Yes
Energy efficiency class according to EU regulation 2019/2015
B
With twilight switch
No
Material of light bulb
Glass
Downloads
Manual
IM_LED-HID-Filament-01.pdf
