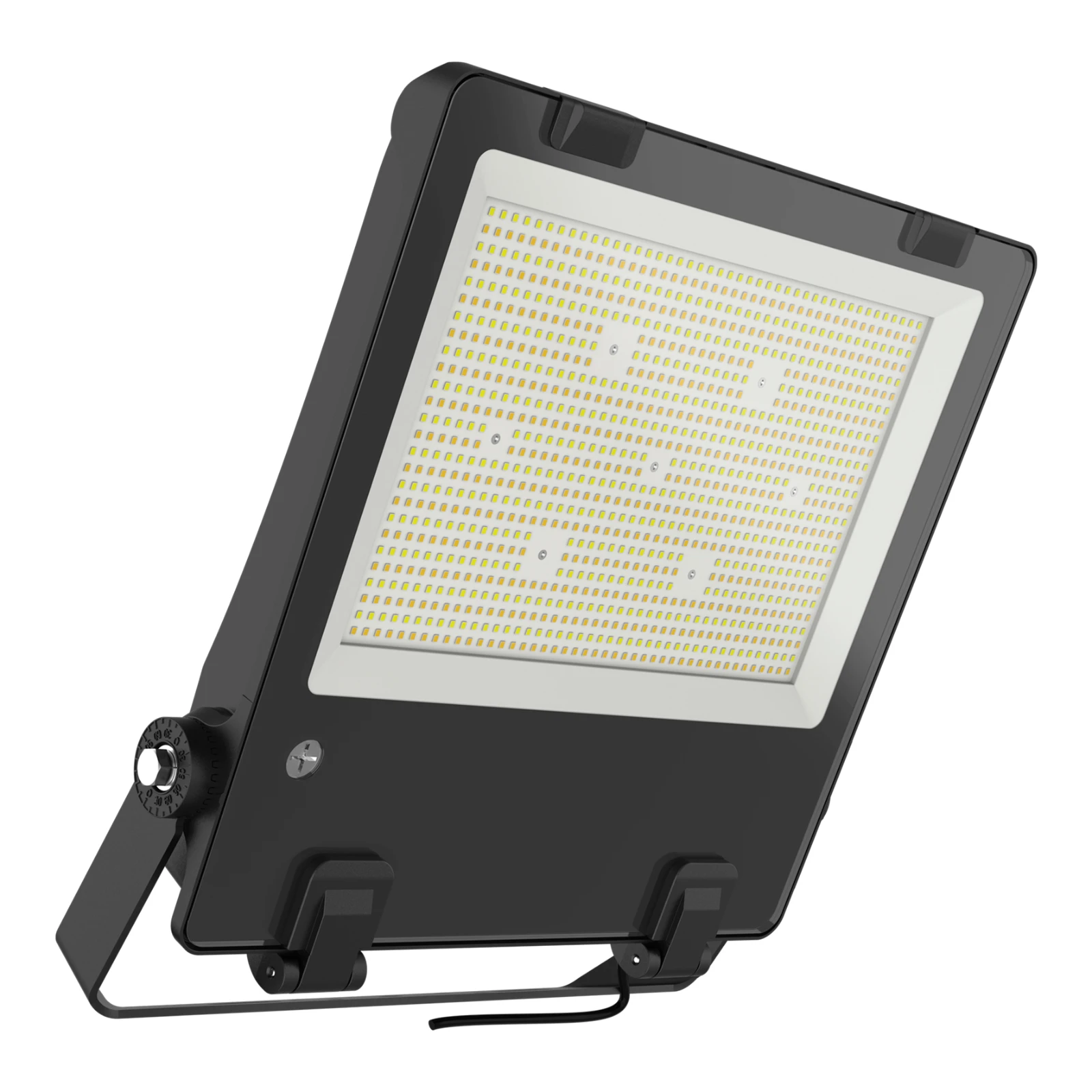

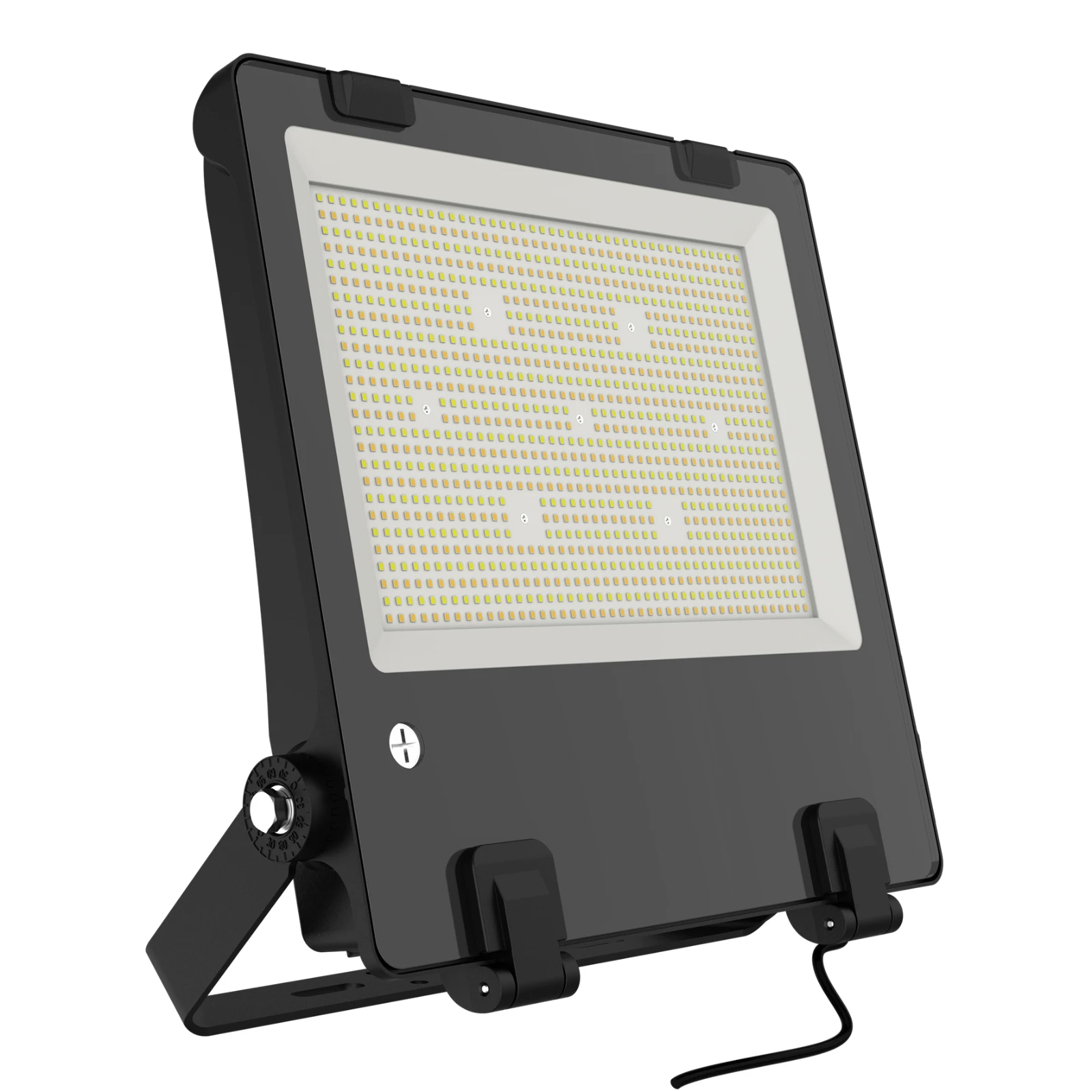

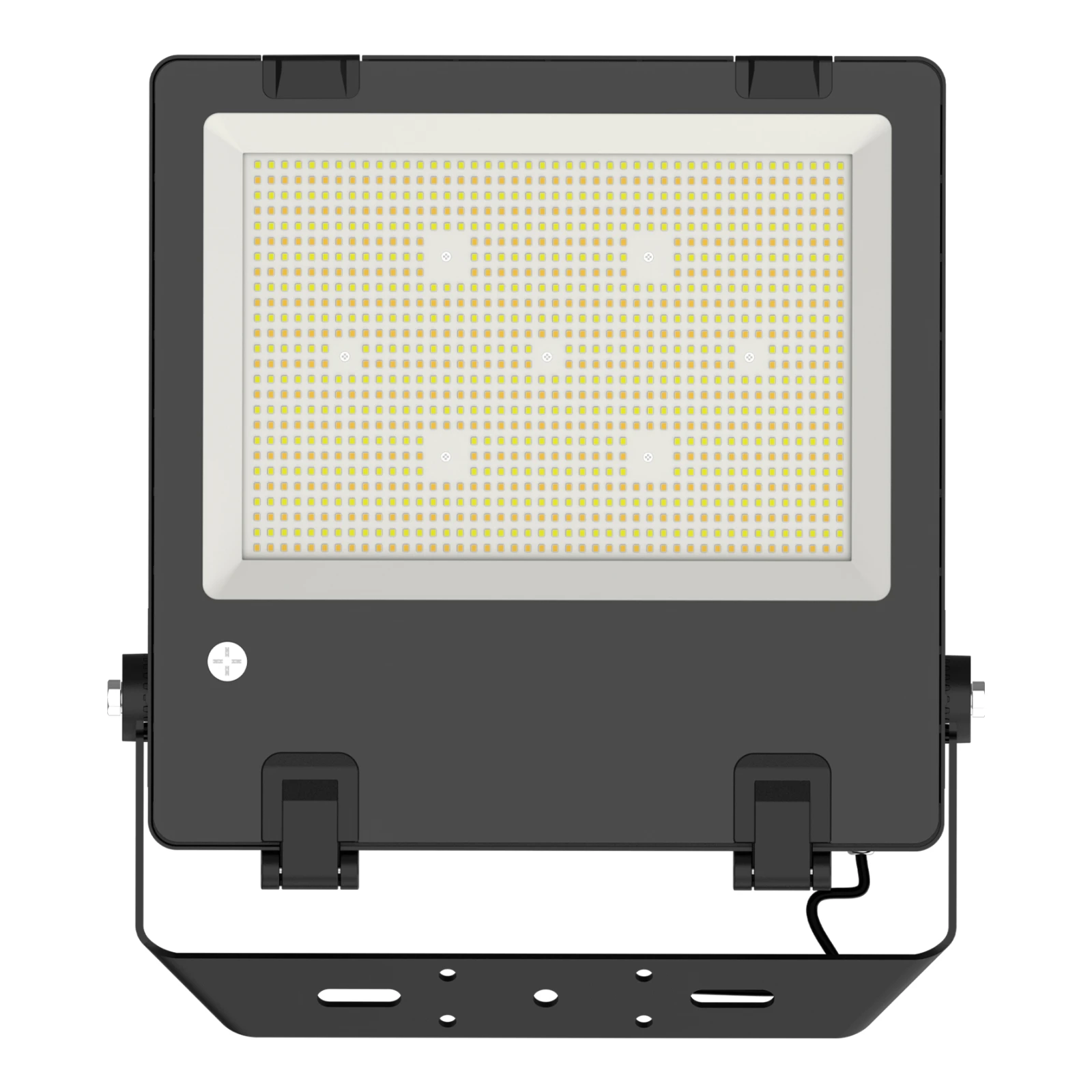

LED Floodlight Switch 200W-300W 25000-42000lm 3000K-6500K
Article number: 145821
BAI LED Floodlight Switch 3CCT 200W=25000lm 240W=32000lm 300W=42000lm 3000K 4000K 6500K 220-260V IP66 IK08 Alu housing black 120° 0.5m cable

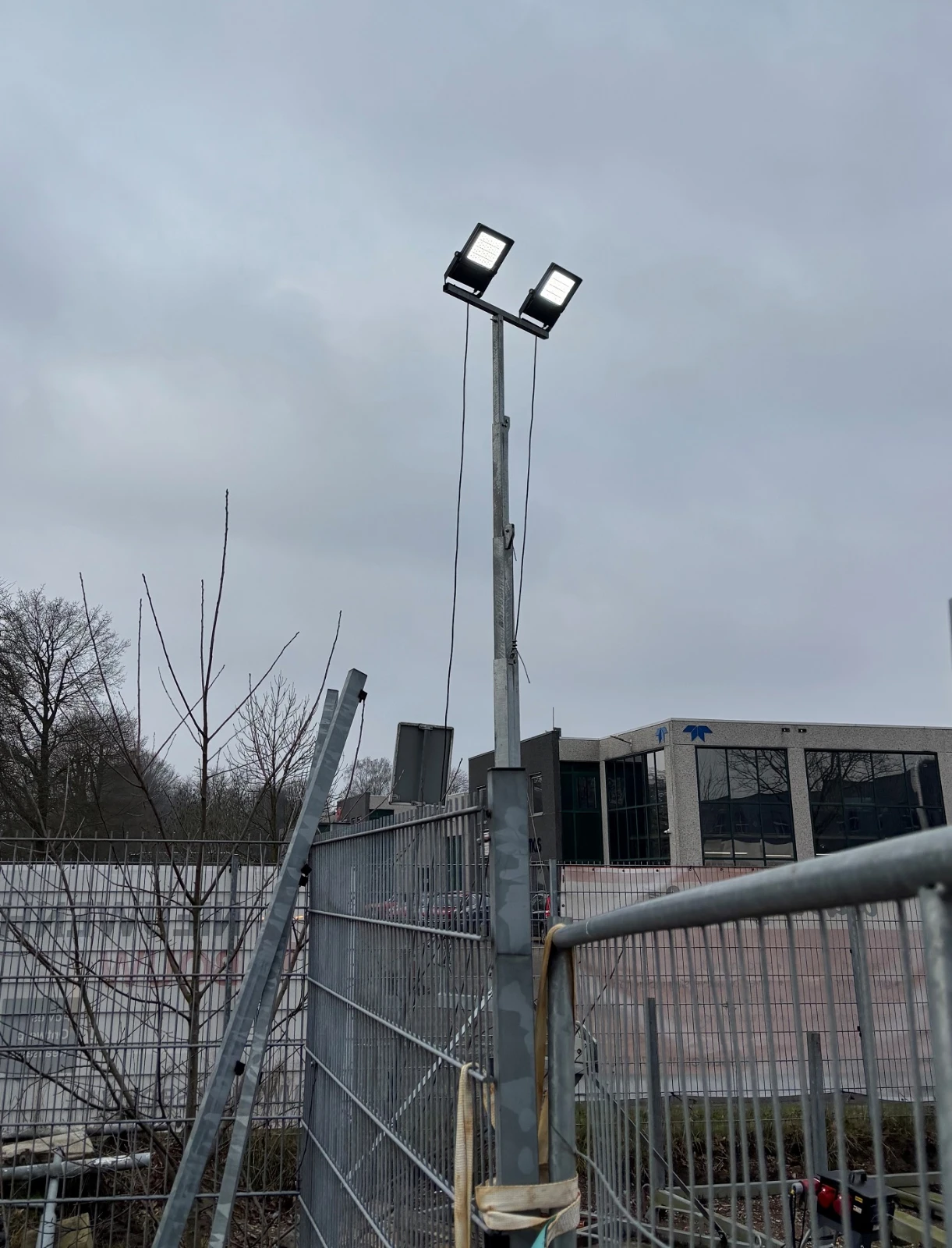

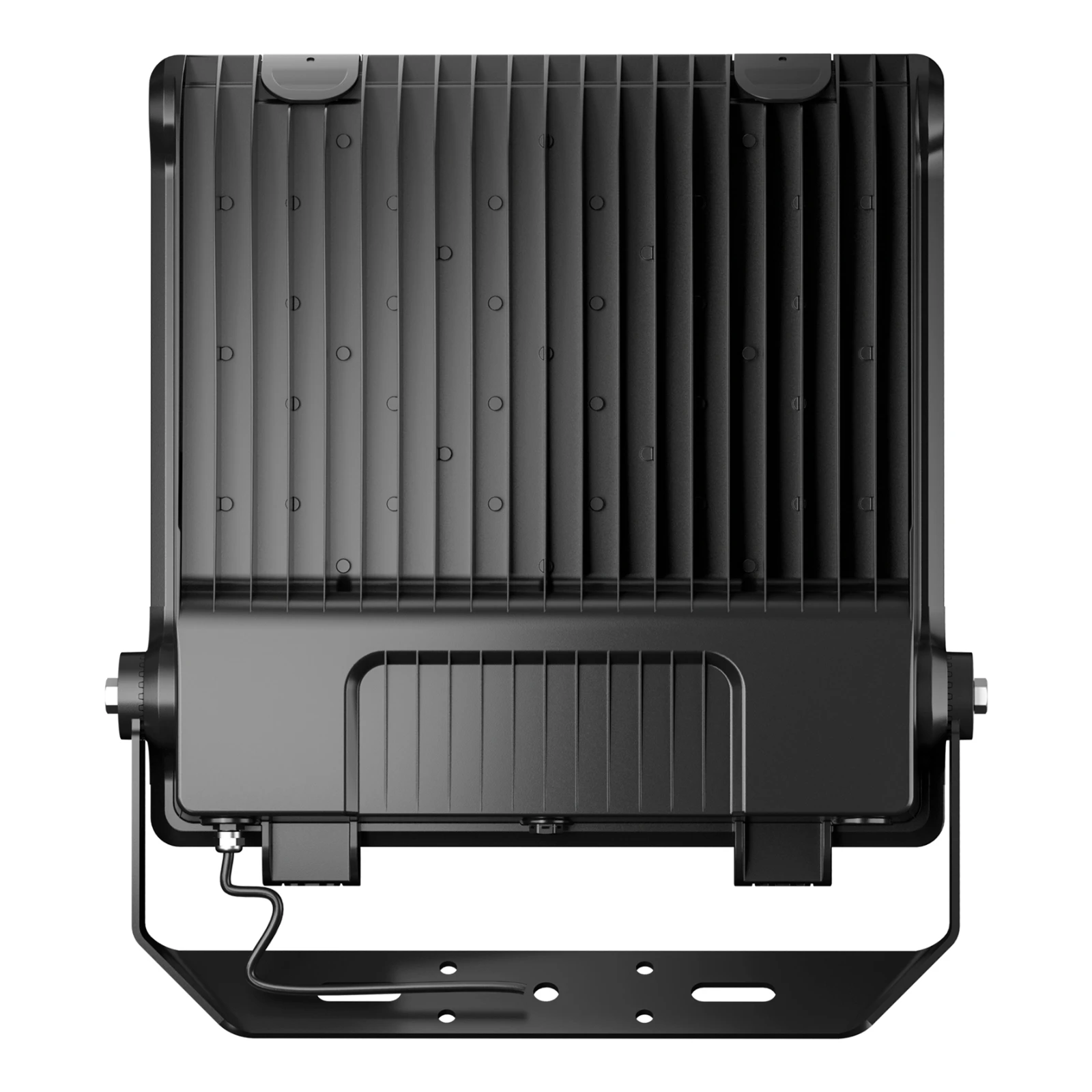

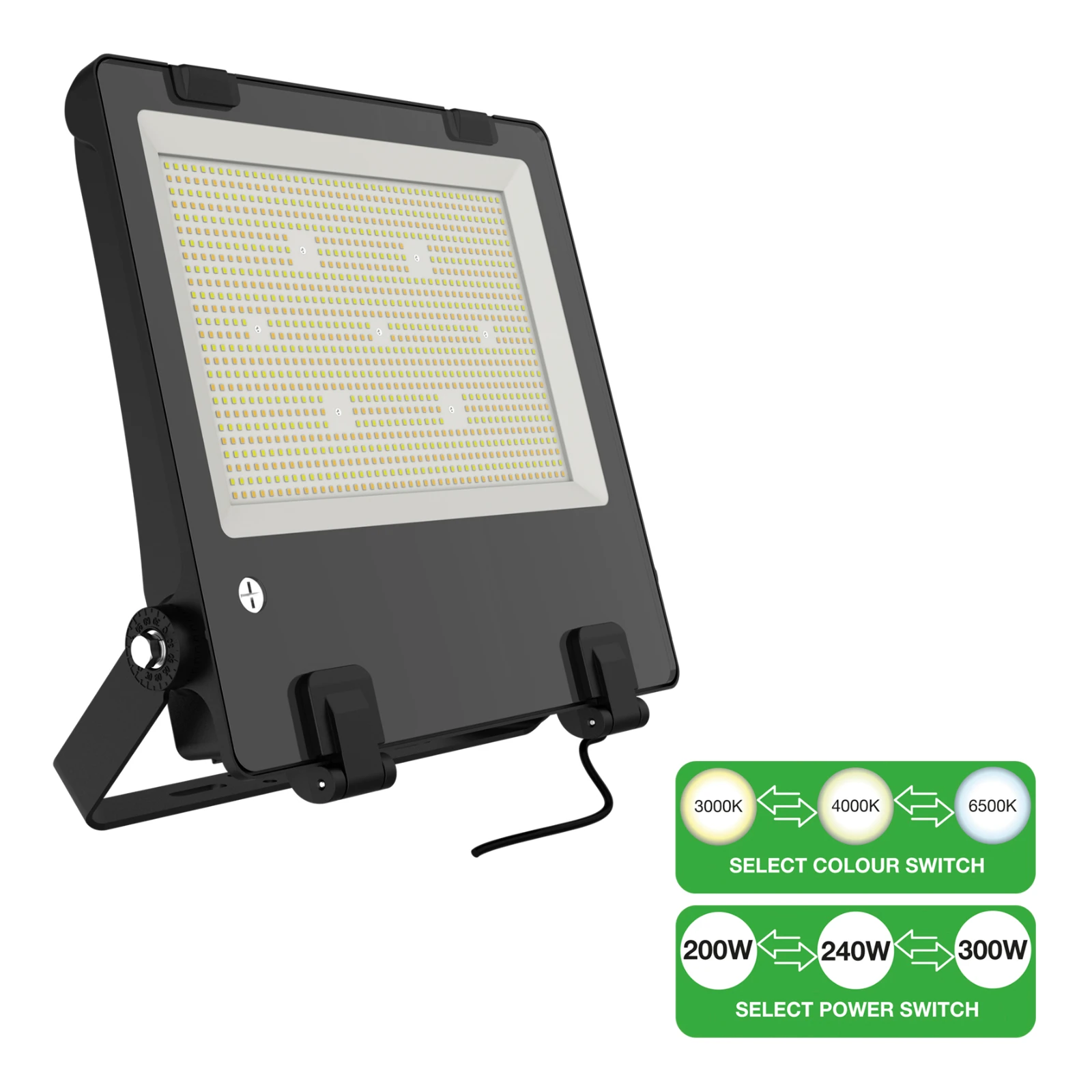

The Floodlight Switch with compact body and high efficiency is also called a spotlight or construction lamp. Can be mounted on both wall and ceiling. The housing is made of cast aluminum. The floodlight has a switch to choose different wattages and light colors. The switch is located in the floodlight and is very easy to access by opening the cover (without tools). Comes with 50cm connection cable. Suitable for ambient temperatures from -40°C to +50°C. Consult specifications and warranty for installation.
Please read the manual before use. As surge protection till 10kV we advise our item number 140440.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Luminaires
ETIM class
Downlight/spot/floodlight
Name
LED Floodlight Switch 200W-300W 25000-42000lm 3000K-6500K
Brand
Bailey
Productseries
LED Floodlight
Producttype
Switch
GTIN
8714681458211
Manufacturer articlenumber
145821
ETIM specifications
Luminous flux [lm]
25000 - 42000
Max. system power [W]
300
Colour temperature [K]
3000 - 6500
Nominal voltage [V]
220 - 260
With movement sensor
No
Lamp holder
None
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Adjustability
Swivelling
With light sensor
No
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
Black
Material cover
Glass transparent
Surface brushed
No
Voltage type
AC
LED nominal current at constant current [mA]
1230 - 1230
Type of control gear
LED operating device current-controlled
With control gear
Yes
Exchangeable control gear
No
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Reflector
Matt
Light distributor
None
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Colour rendering index CRI
70-79
Energy efficiency class
Other
Energy efficiency class of the built-in lamp
Other
Total harmonic distortion
20
Rated lifetime L70/B50 at 25 °C [h]
45000
Rated life time L80/B10 at 25 °C [h]
35000
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) [%]
91.74
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) [%]
88.31
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) [%]
77.79
Degree of protection (IP)
IP66
Degree of protection (NEMA)
4X
Impact strength
IK08
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1 [°C]
-40 - 50
Suitable for lamp power [W]
200 - 300
Colour of light
White
Emergency power supply system
None
Rated luminous flux according to IEC 62722-2-1 [lm]
42000
Luminous intensity [cd]
1540
Flickering value Pst LM
0.2
Constant light output (CLO)
No
Colour of light adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
No
Stroboscope effect value SVM
0.2

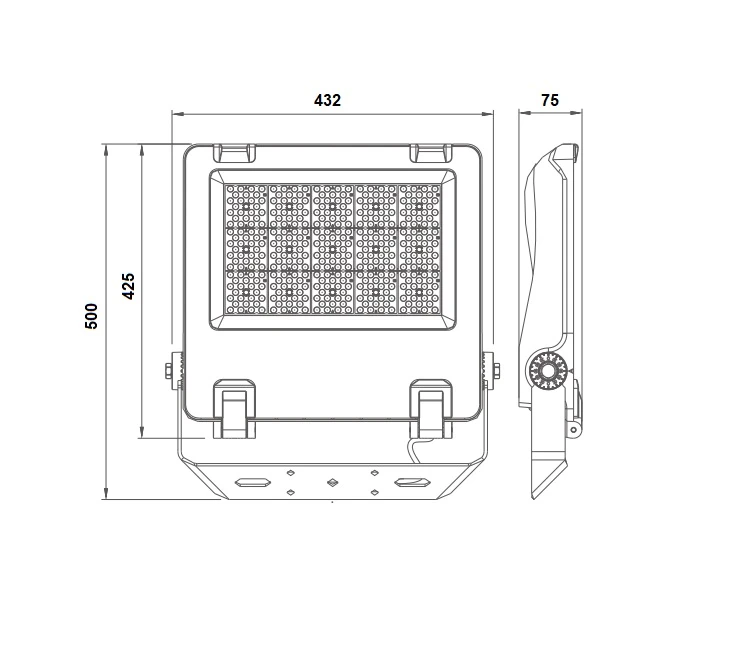

Width [mm]
432
Height/depth [mm]
75
Length [mm]
500
Type of wiring
Ending
Conductor cross section [mm²]
0.75
Connection type
Free conductor end
Max. number of luminaires per miniature circuit breaker B16 (MCB)
6
Power factor
0.9
Max. number of luminaires per miniature circuit breaker C16 (MCB)
10
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Luminaire efficacy [lm/W]
140
Photobiological safety according to EN 62471
RG1
Dimmable
No
Unified Glare Ratio (UGR)
15
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Covering of the luminaire with thermally insulating material possible
No
Number of poles
3
Suitable for workplace according to EN 12464-1
No
Nominal current [mA]
1230 - 1230
Energy efficiency class of the light source according to EU regulation 2019/2015
C
Compatible with Apple HomeKit
No
Colour consistency (McAdam ellipse)
SDCM6
Dimming Sine Wave Reduction
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
With presence detector
No
IFTTT support available
No
Containing product according to 2019/2020/EU
No
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP66
Operation by Bluetooth
No
Total harmonic distortion (THD) [%]
20
Rated luminous flux according to IEC 62722-2- 1 [lm]
25000 - 42000
Luminaire efficacy [lm/W]
125 - 140
Luminous intensity [cd]
1540 - 1540
Compatible with Casambi
No
UK Building Regs Part B fire rated - 30 minutes
No
UK Building Regs Part B fire rated - 60 minutes
No
UK Building Regs Part B fire rated - 90 minutes
No
