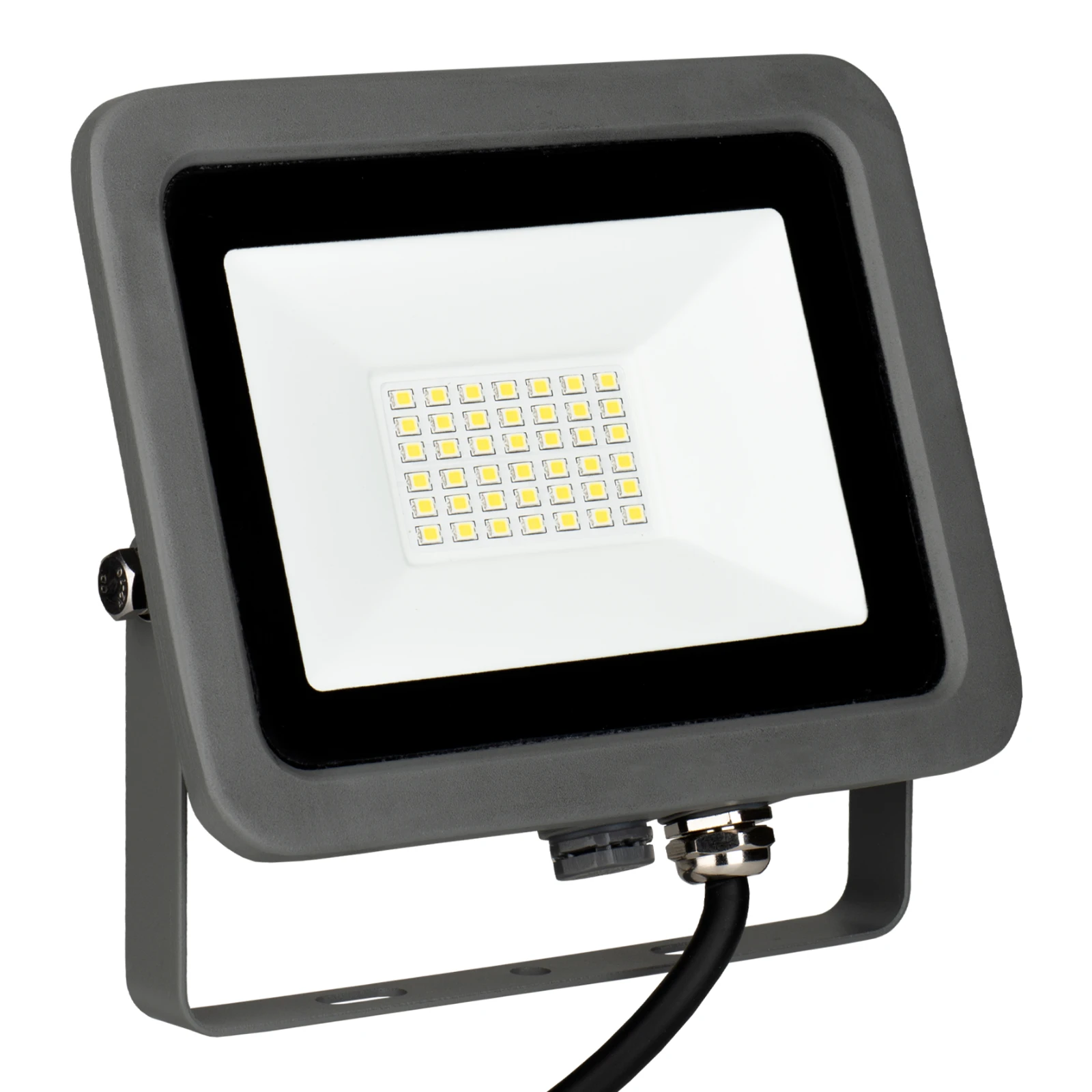

LED Floodlight Grey 2.0 30W 3300lm 6500K
Article number: 145501
BAI LED Floodlight 2.0 30W 3300lm 6500K 220V-240V IP65 IK08 Alu housing grey 110° 0.5m cable
The Floodlight 2.0 with compact body and high efficiency is also called a spotlight or construction lamp. The LED version consumes little power and lasts a long time so that they are more durable than the traditional predecessors. Can be mounted on both wall and ceiling. The housing is made of cast aluminum. Comes with 50cm connection cable. Suitable for ambient temperatures from -35°C to +45°C. Consult specifications and warranty for installation.
Please read the manual before use. As surge protection till 10kV we advise our item number 140440.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Luminaires
ETIM class
Downlight/spot/floodlight
Name
LED Floodlight Grey 2.0 30W 3300lm 6500K
Brand
Bailey
Productseries
LED Floodlight
Producttype
Grey 2.0
GTIN
8714681455012
Manufacturer articlenumber
145501
ETIM specifications
Luminous flux [lm]
3300 - 3300
Max. system power [W]
31
Colour temperature [K]
6500 - 6500
Nominal voltage [V]
220 - 240
With movement sensor
No
Lamp holder
None
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Adjustability
Rotatable
With light sensor
No
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
Grey
Material cover
Glass transparent
Surface brushed
No
Voltage type
AC
LED nominal current at constant current [mA]
180 - 180
Type of control gear
LED operating device current-controlled
With control gear
Yes
Exchangeable control gear
No
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Reflector
Matt
Light distributor
Reflector
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Colour rendering index CRI
70-79
Total harmonic distortion
20
Rated lifetime L70/B50 at 25 °C [h]
45000
Rated life time L80/B10 at 25 °C [h]
35000
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) [%]
92
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) [%]
88
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) [%]
70
Degree of protection (IP)
IP65
Degree of protection (NEMA)
4
Impact strength
IK08
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1 [°C]
-35 - 45
Suitable for lamp power [W]
30 - 30
Colour of light
White
Emergency power supply system
None
Rated luminous flux according to IEC 62722-2-1 [lm]
3300
Luminous intensity [cd]
1115
Flickering value Pst LM
0.2
Constant light output (CLO)
Yes
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Stroboscope effect value SVM
4
Width [mm]
138
Height/depth [mm]
26
Length [mm]
160
Type of wiring
Suitable for loop-through wiring
Conductor cross section [mm²]
1
Connectable conductor cross section [mm²]
1 - 4
Connection type
Free conductor end
Max. number of luminaires per miniature circuit breaker B16 (MCB)
30
Power factor
0.9
Max. number of luminaires per miniature circuit breaker C16 (MCB)
51
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
None
Luminaire efficacy [lm/W]
110
Photobiological safety according to EN 62471
RG1
Dimmable
No
Unified Glare Ratio (UGR)
35
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Number of poles
3
Suitable for workplace according to EN 12464-1
No
Nominal current [mA]
180 - 180
Energy efficiency class of the light source according to EU regulation 2019/2015
E
Compatible with Apple HomeKit
No
Colour consistency (McAdam ellipse)
SDCM6
Dimming Sine Wave Reduction
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
With presence detector
No
IFTTT support available
No
Containing product according to 2019/2020/EU
No
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP65
Operation by Bluetooth
No
Total harmonic distortion (THD) [%]
20
Rated luminous flux according to IEC 62722-2- 1 [lm]
3300 - 3300
Luminaire efficacy [lm/W]
110 - 110
Luminous intensity [cd]
1115 - 1115
Compatible with Casambi
No
UK Building Regs Part B fire rated - 30 minutes
No
UK Building Regs Part B fire rated - 60 minutes
No
UK Building Regs Part B fire rated - 90 minutes
No
