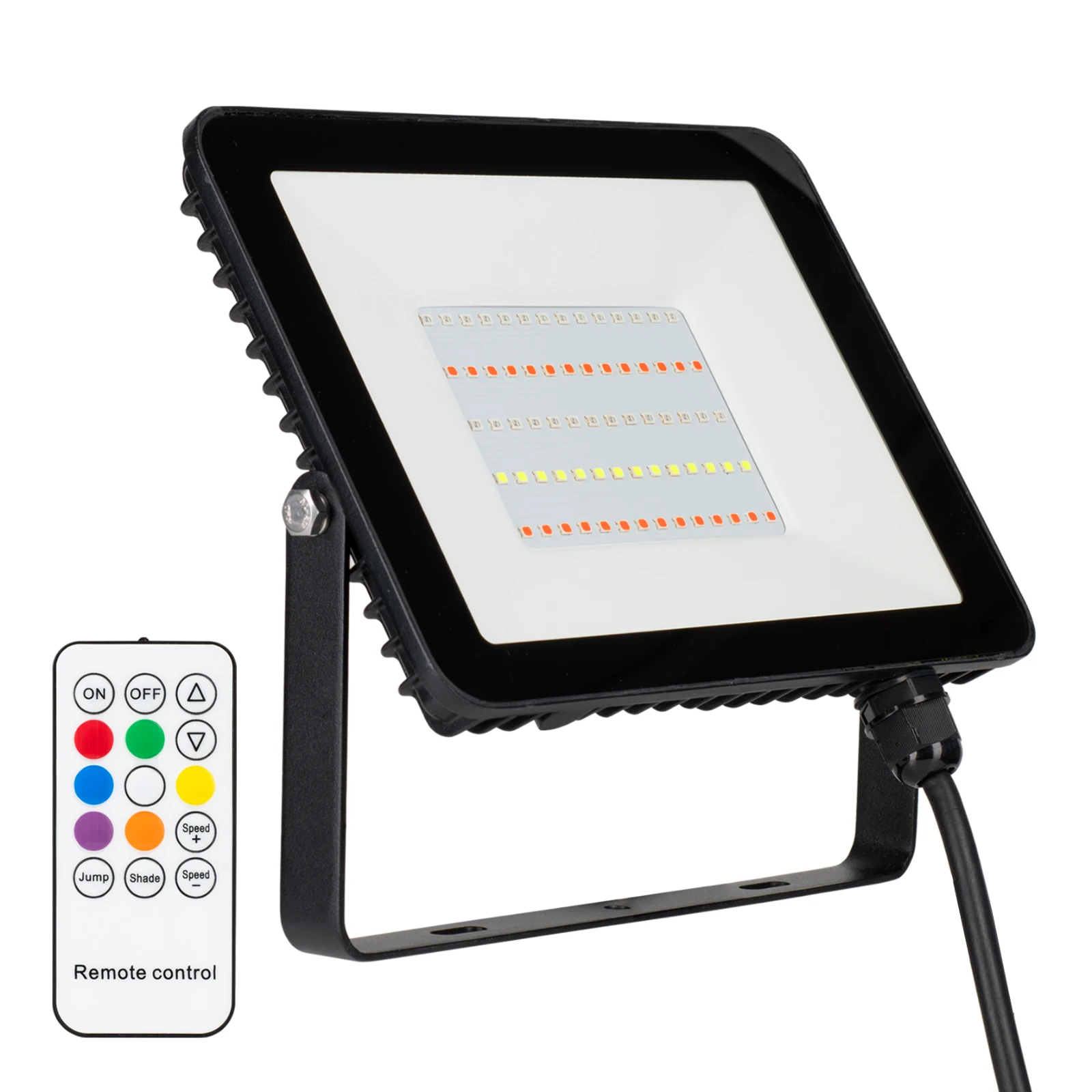

LED Floodlight RGBW Basic 50W Remote Control

Article number: 143756

BAI LED Floodlight RGBW Basic 50W + Remote Cool white 1600lm Red 125lm Green 720lm Blue 230lm IP65 IK05 120° 220-240V Cable 0.5m BaiColour

Basic LED RGBW floodlight for decorative lighting. With the remote control, many colors and also white light can be set. In addition to red 660-670nm, green 520-530nm and blue 450-460nm, there are 3 other pre-programmed colors to select. With memory function. In addition, there are 2 automatic color change programs and you can adjust the brightness. The range of the RF remote control is 8-10m. It is also possible to control several floodlights with one remote control (universal). It is not possible to link fixtures together so the floodlights run 100% synchronously. Ambient temperature: -20°C to +45°C.

No longer available!

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

General ETIM properties

ETIM group
Luminaires
ETIM class
Downlight/spot/floodlight
Name
LED Floodlight RGBW Basic 50W Remote Control
Brand
Bailey
Productseries
LED Floodlight colour
Producttype
RGBW Basic
GTIN
8714681437568
Manufacturer articlenumber
143756

ETIM specifications

Luminous flux [lm]
125 - 1600
Max. system power [W]
50
Nominal voltage [V]
220 - 240
With movement sensor
No
Lamp holder
None
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Adjustability
Swivelling
With light sensor
No
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
Black
Material cover
Glass transparent
Surface brushed
No
Voltage type
AC
LED nominal current at constant current [mA]
100 - 120
Type of control gear
LED operating device current-controlled
With control gear
Yes
Exchangeable control gear
No
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
Yes
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
No
Reflector
High-gloss
Light distributor
None
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Colour rendering index CRI
70-79
Energy efficiency class of the built-in lamp
Other
Total harmonic distortion
15
Rated lifetime L70/B50 at 25 °C [h]
25000
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) [%]
80
Degree of protection (IP)
IP65
Degree of protection (NEMA)
Other
Impact strength
IK05
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1 [°C]
-20 - 45
Suitable for lamp power [W]
10 - 50
Colour of light
RGBW
Emergency power supply system
None
Flickering value Pst LM
1
Constant light output (CLO)
No
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Width [mm]
215
Height/depth [mm]
23
Length [mm]
195
Type of wiring
Ending
Conductor cross section [mm²]
1
Connectable conductor cross section [mm²]
1 - 1
Connection type
Other
Power factor
0.9
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Photobiological safety according to EN 62471
RG1
Dimmable
Yes
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Number of poles
3
Suitable for workplace according to EN 12464-1
No
Compatible with Apple HomeKit
No
Colour consistency (McAdam ellipse)
SDCM6
Dimming Sine Wave Reduction
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
With presence detector
No
IFTTT support available
No
Total harmonic distortion (THD) [%]
15
Compatible with Casambi
No
UK Building Regs Part B fire rated - 30 minutes
No
UK Building Regs Part B fire rated - 60 minutes
No
UK Building Regs Part B fire rated - 90 minutes
No
Downloads
Manual
Manual_LEDFloodlightRGBWBasic-01.pdf

Successor
LED Floodlight RGBW Basic 50W + Remote

146502
