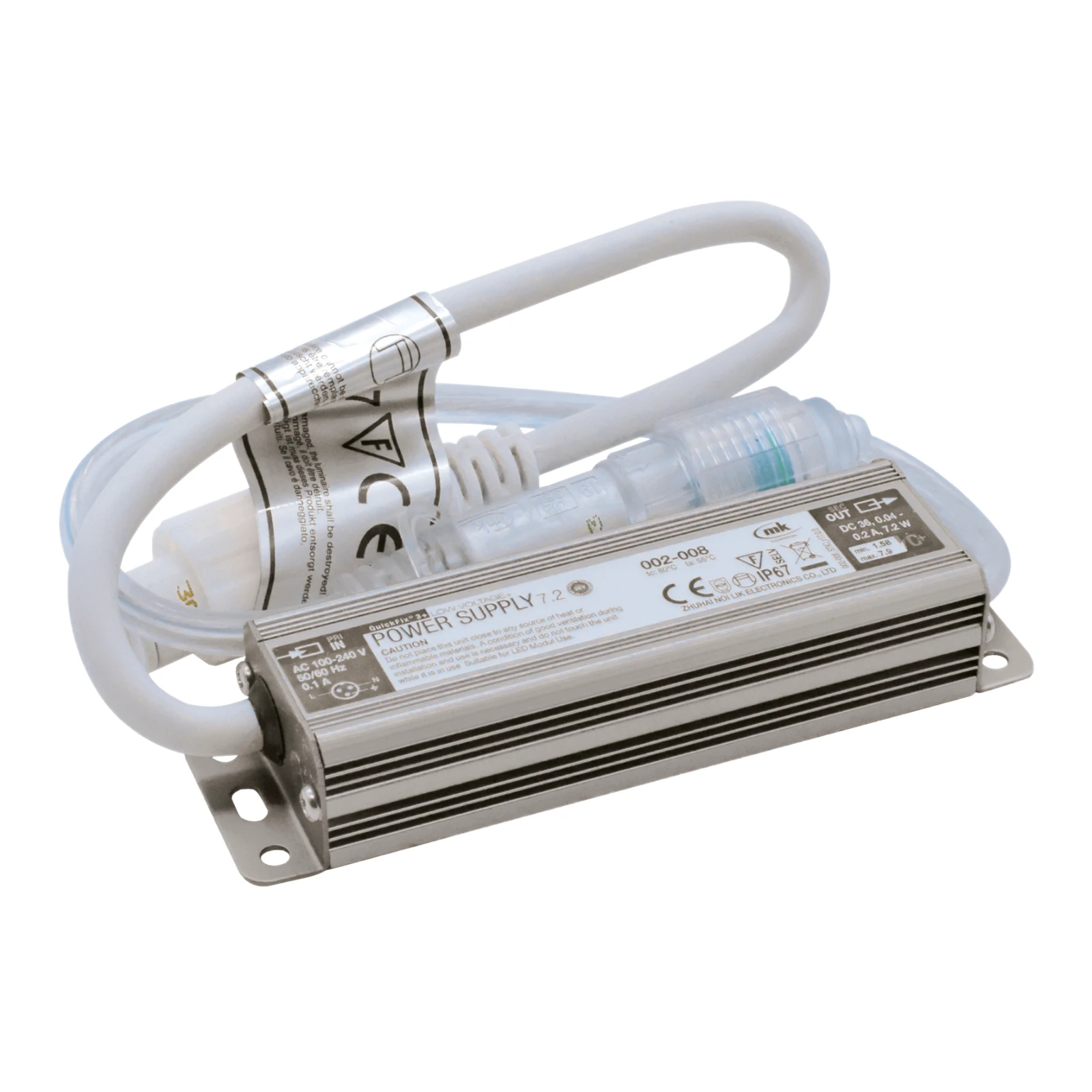

002-008 Power Supply 36V Max 7.2W/200 LEDs QF3+
Article number: MKI002008
MK QuickFix 3+ 36V Power Supply Max 7.2W/200 LEDs
The choice of the suitable transformer (power supply) principally depends on the size of the installation, which is defined by the number of LEDs (200 max. points of light) or the total output. Our transformers allow an output of 7.2 watts and comply with protection class IP67. The transformers cannot be connected with Quick Fix® 230 Volt LED products, as this is prevented, as an additional precaution, by the Quick Fix® plug-in system of the 36V series.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Light control
ETIM class
LED driver
Name
002-008 Power Supply 36V Max 7.2W/200 LEDs QF3+
Brand
MK
Productseries
MK QuickFix
Producttype
MK Acc
GTIN
9120079034537
Manufacturer articlenumber
002-008
ETIM specifications
Model
Dynamic
Suitable for outdoor use
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DSI
No
Dimming DMX
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Constant light output (CLO)
No
No dim function
Yes
Housing
Metal housing
Suitable for constant current
Yes
Suitable for constant voltage
No
Output voltage [V]
36 - 36
Suitable for DC-voltage (primary side)
No
Output power [W]
7.2 - 7.2
Degree of protection (IP)
IP67
Protection class according to IEC 61140
None
Length [mm]
80
Width [mm]
35
Height [mm]
23
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation by Bluetooth
No
Compatible with Casambi
No
