MASTERC CDM-TD 70W/942 RX7s
Article number: HMC070942TD/01

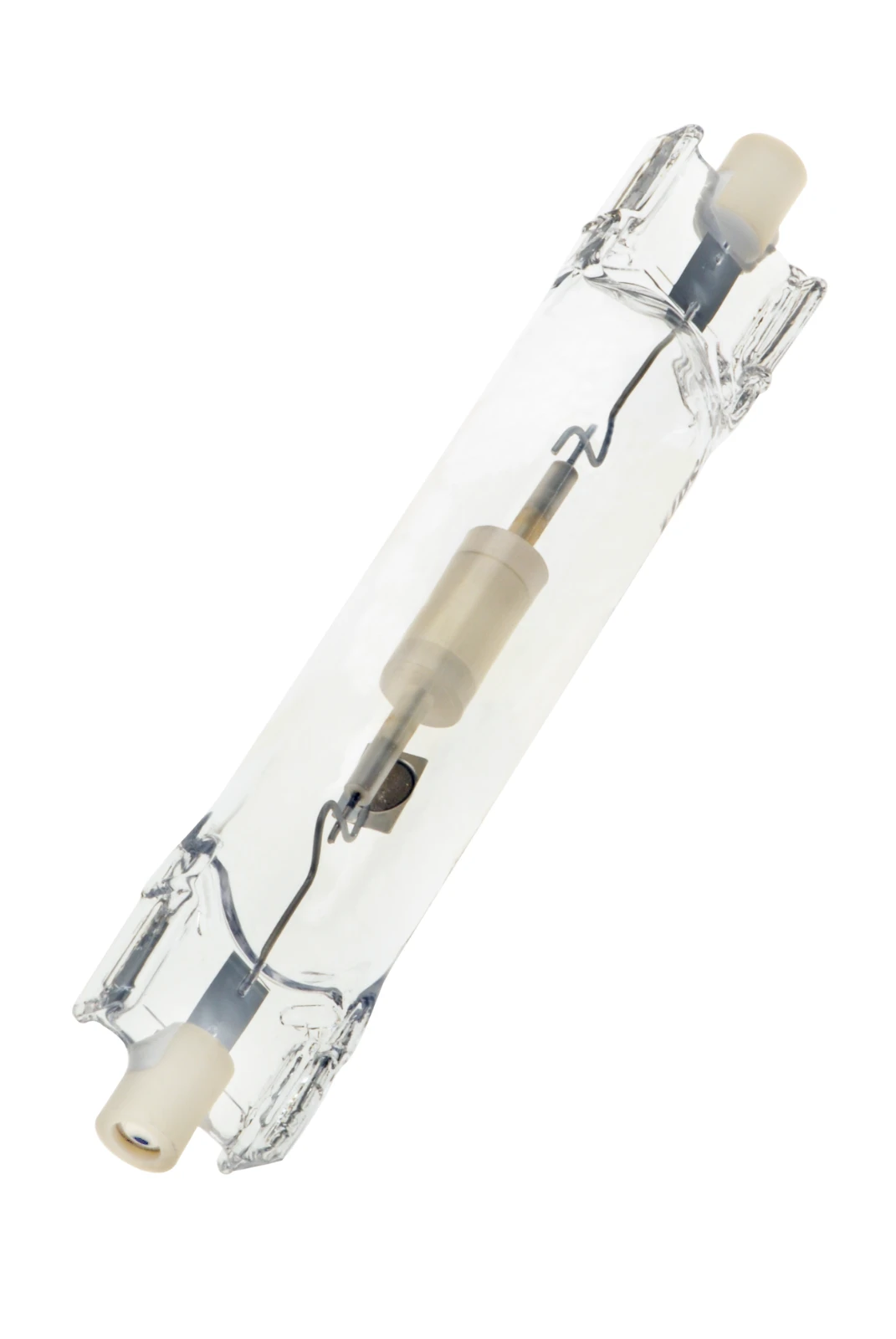

PHI MASTERColour CDM-TD RX7s 70W/942 4200K Clear CRI90-100 22x119.63mm Compact halogen metal halide lamp
The Philips CDM-T lamps have a high light output and the color is very stable during the entire lifespan.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Lamps
ETIM class
Halogen metal halide lamp without reflector
Name
MASTERC CDM-TD 70W/942 RX7s
Brand
PHILIPS
Productseries
MASTERColour CDM-TD
Producttype
CDMTD70W942
GTIN
8711500200020
Manufacturer articlenumber
8711500200020
ETIM specifications
Socket
RX7s
Lamp power [W]
71
Colour temperature [K]
4200
Luminous flux [lm]
5600
Lamp voltage [V]
82 - 98
UV protection
Yes
Colour rendering index CRI
90-100
Colour of light according to EN 12464-1
Neutral white 3300-5300 K
Lamp efficacy [lm/W]
80
Lamp shape
Tube, double-ended
Material discharge tube
Ceramics
Burning position
P45
Diameter [mm]
22
Total length [mm]
119
External ignitor required
Yes
External ballast required
Yes
Closed luminaire required
Yes
Sun tanning lamp
No
Colour
White
Model
Clear
Energy efficiency class
A
Weighted energy consumption in 1000 hours [kWh]
78
Average nominal lifetime [h]
16000
