Ba15d T16X35 6V 5W C-2V
Article number: B35006005

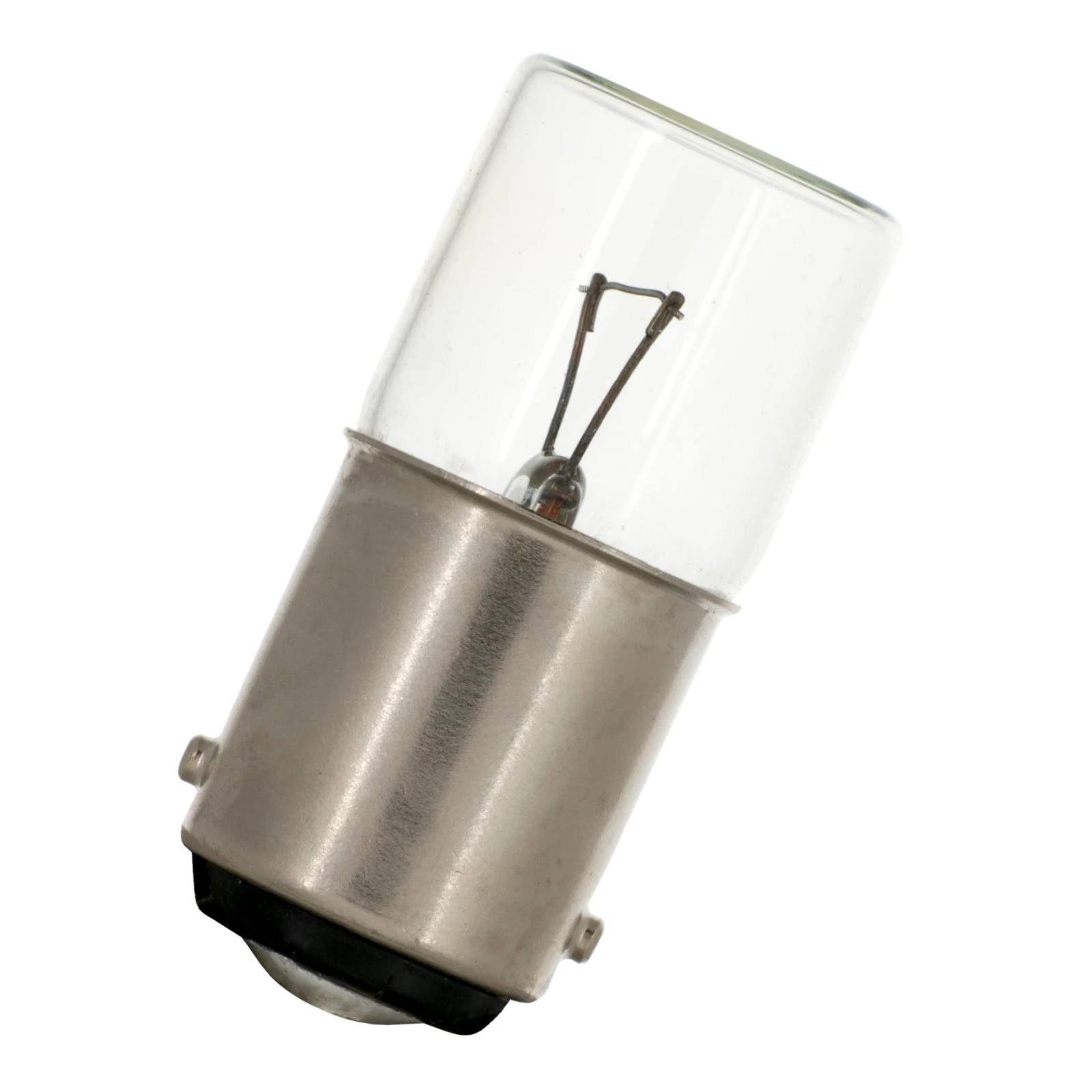

BEE Miniature Ba15d Tube 16x35mm 6V 5W Clear 2000h C-2V Indication- and signalling lamp
As a specialist in this field, Bailey Lights has built an extensive wide range of indication and signalling lamps over the many years being active in this industry. If Bailey doesn't know the lamp your're loooking for it probably no longer exists. The subminiature types are the smallest lights. Applications: switches, control panels, signaling devices and automotive industry.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Lamps
ETIM class
Indication- and signalling lamp
Name
Ba15d T16X35 6V 5W C-2V
Brand
Bailey
Productseries
Miniature bayonet cap
Producttype
Ba15d T16
GTIN
8714681013762
Manufacturer articlenumber
B35006005
ETIM specifications
Socket
BA15d
Lamp voltage [V]
6 - 6
Nominal current [mA]
833
Lamp power [W]
5 - 5
Diameter [mm]
16
Total length [mm]
35
Lamp shape
Tube, single-ended
Technology
Incandescent lamp
Halogen
No
Krypton
No
Xenon
No
Colour
Colourless
Colour temperature [K]
2700
Suitable for torches
No
Suitable for pointer
No
Suitable for round flashing luminaire
No
Average nominal lifetime [h]
2000
Energy efficiency class
G
Energy efficiency class according to EU regulation 2019/2015
Not required
