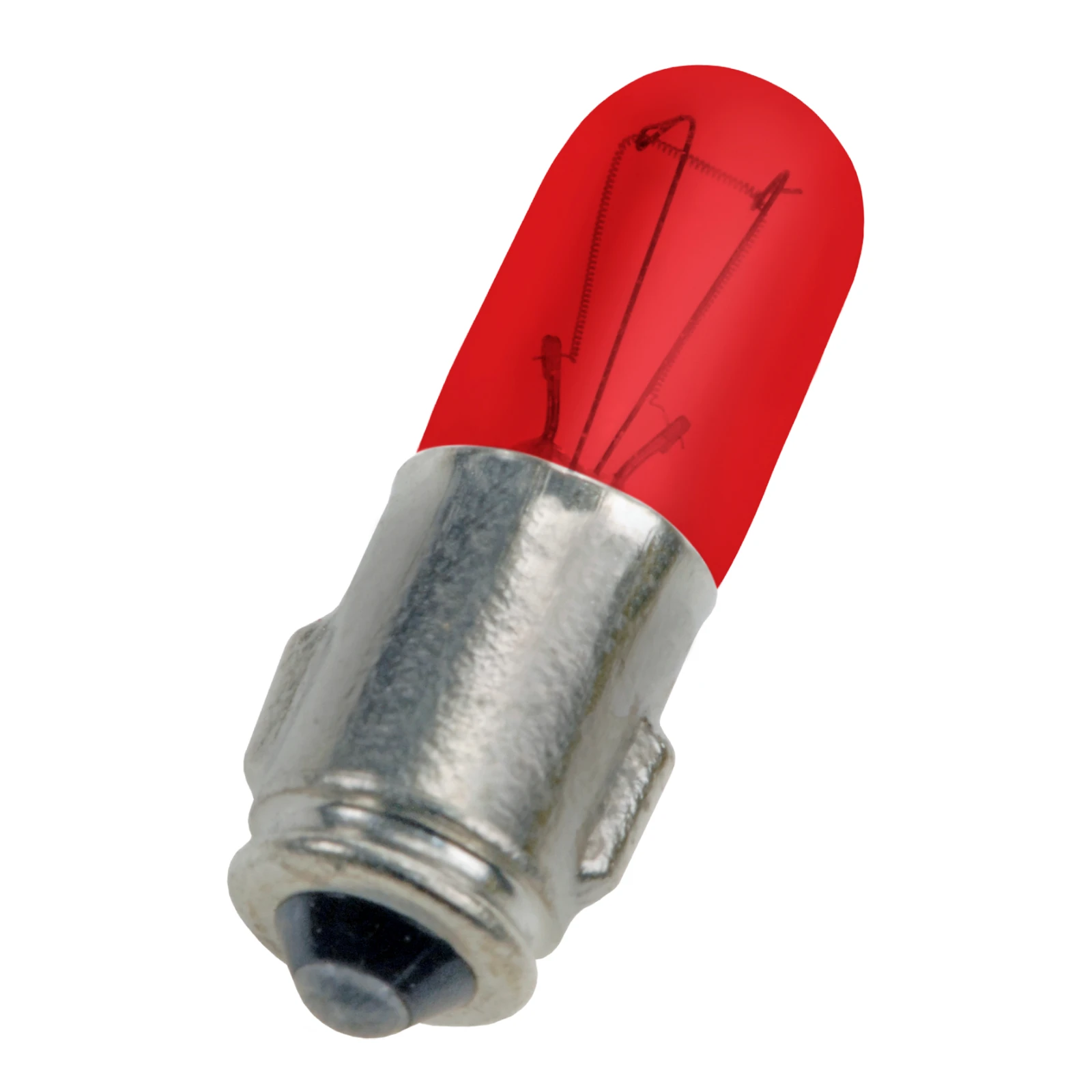

Ba7s T7.1X23 24V 50mA Red
Article number: B22024050R
BAI Miniature Ba7s Tube 7.1x23mm 24V 50mA 0.05A 1.2W Red 2000h C-2F Indication- and signalling lamp
As a specialist in this field, Bailey Lights has built an extensive wide range of indication and signalling lamps over the many years being active in this industry. If Bailey doesn't know the lamp your're loooking for it probably no longer exists. The subminiature types are the smallest lights. Applications: switches, control panels, signaling devices and automotive industry.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Lamps
ETIM class
Indication- and signalling lamp
Name
Ba7s T7.1X23 24V 50mA Red
Brand
Bailey
Productseries
Miniature bayonet cap
Producttype
Ba7s T7
GTIN
8714681007815
Manufacturer articlenumber
B22024050R
ETIM specifications
Socket
BA7s
Lamp voltage [V]
24 - 24
Nominal current [mA]
50
Lamp power [W]
1.2 - 1.2
Diameter [mm]
7.1
Total length [mm]
23
Lamp shape
Tube, single-ended
Technology
Incandescent lamp
Halogen
No
Krypton
No
Xenon
No
Colour
Red
Suitable for torches
No
Suitable for pointer
No
Suitable for round flashing luminaire
No
Average nominal lifetime [h]
2000
Energy efficiency class
G
Energy efficiency class according to EU regulation 2019/2015
Not required
