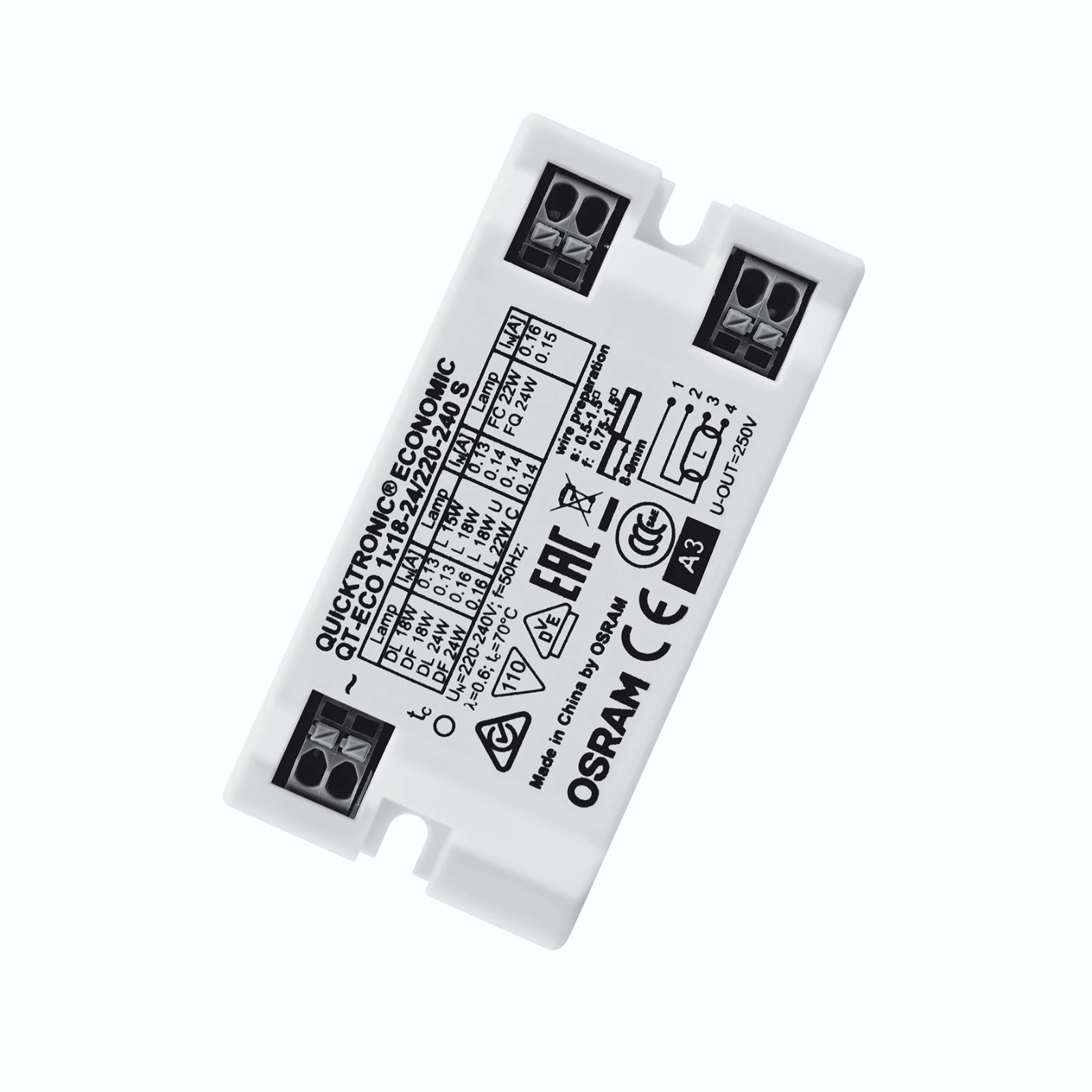

QUICKTRONIC® ECONOMIC 1X18…24 S
Article number: 92200239485
LEV QUICKTRONIC® ECONOMIC TL-D 1x15W 1x18W TL5 1x22W 1x24W 2G10 PL-L 1x18W 1x24W S
Product advantages: Compact housing. Automatic restart after lamp replacement. Wide input voltage range. Product features: Supply voltage: 220…240 V. Line voltage: 198…264 V. Line frequency: 50 Hz. Automatic shutdown of defective lamps and at end of life (EoL).
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Light control
ETIM class
Ballast (electrical)
Name
QUICKTRONIC® ECONOMIC 1X18…24 S
Brand
OSRAM
Productseries
QUICKTRONIC® ECONOMIC
Producttype
QT-ECO 1X18…24 S
GTIN
4050300638560
Manufacturer articlenumber
4050300638560
ETIM specifications
Model
Electronic
Suitable for number of lamps
1 - 1
Suitable for lamp power [W]
18 - 18
Multiwatt model
Yes
Dimmable
No
Suitable for lamp power (1 lamp) [W]
18 - 24
For lamp type HI
Yes
For lamp type HM
No
For lamp type HS
No
For lamp type LS
No
For lamp type T7
Yes
For lamp type T16
Yes
For lamp type T16-R
Yes
For lamp type T26
Yes
For lamp type T38
No
For lamp type T-U
Yes
For lamp type TC-D
Yes
For lamp type T-R
Yes
For lamp type TC-DD
Yes
For lamp type TC-DEL
Yes
For lamp type TC-F
Yes
For lamp type TC-QEL
No
For lamp type TC-S
Yes
For lamp type TC-L
Yes
For lamp type TC-SEL
Yes
For lamp type TC-T
Yes
For lamp type TC-TEL
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DSI
No
Dimming DMX
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Nominal voltage [V]
220 - 240
Housing
Plastic housing
With strain relief
No
Degree of protection (IP)
IP20
Protection class according to IEC 61140
I
Length [mm]
80
Width [mm]
40
Height [mm]
22
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation by Bluetooth
No
Compatible with Casambi
No
Dimming DALI-2
No
