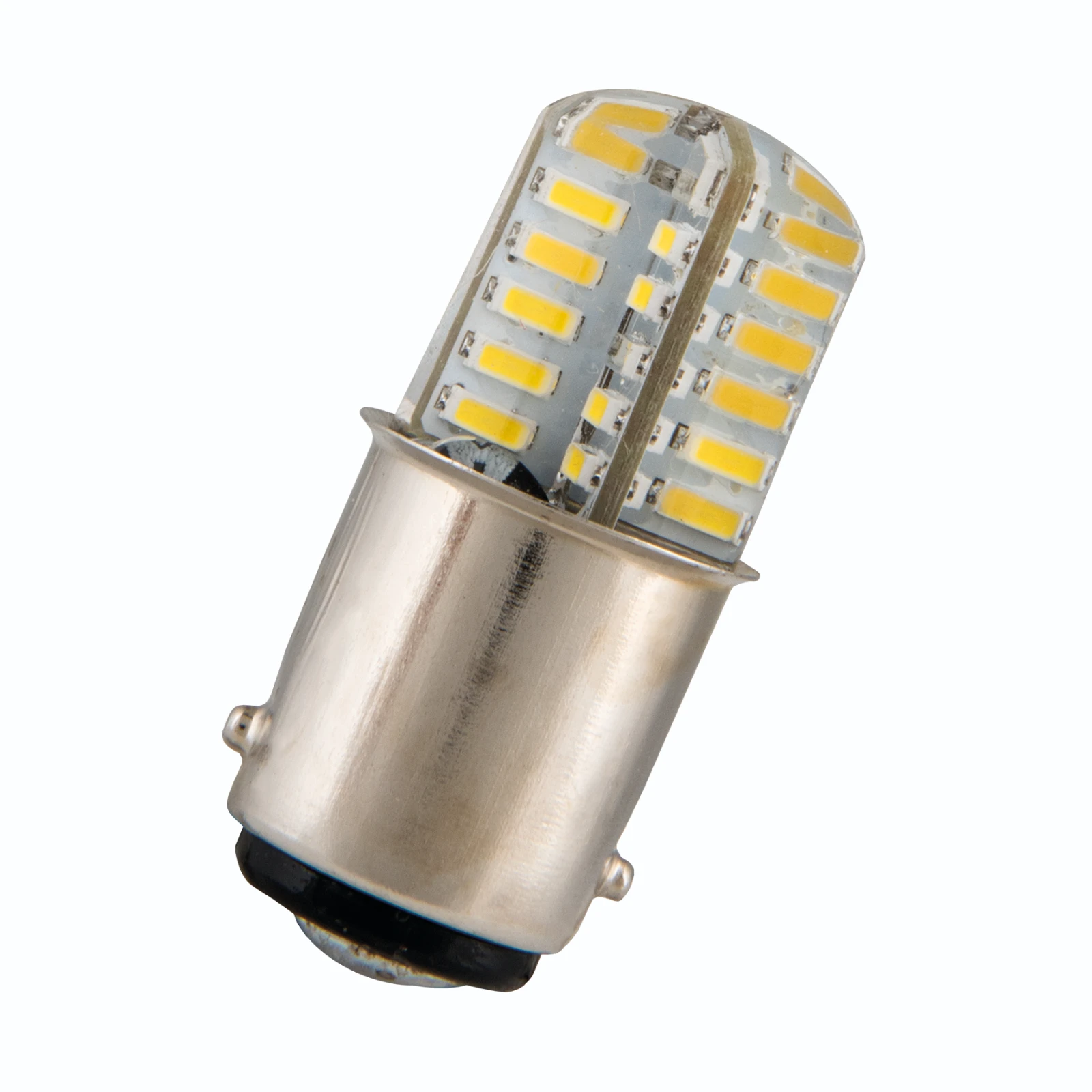

LED Special Ba15d T15X36 24V AC/DC 1.8W (15W) 140lm 841
Article number: 80100038771
BAI LED Compact Ba15d Tube 15x36mm 24V AC/DC 70mA 0.07A 1.8W 4100K 140lm (15W) 20000h Indication- and signalling lamp
Compact and powerful LED indication & signaling lamp to replace the conventional miniature lamps. Ambient temperature: -20°C to +40°C. Not suitable for signaling columns.
Not suitable for signal columns.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Lamps
ETIM class
Indication- and signalling lamp
Name
LED Special Ba15d T15X36 24V AC/DC 1.8W (15W) 140lm 841
Brand
Bailey
Productseries
LED Special
Producttype
Tube Ba15d
GTIN
8714681387719
Manufacturer articlenumber
80100038771
ETIM specifications
Socket
BA15d
Lamp voltage [V]
24 - 24
Nominal current [mA]
70
Lamp power [W]
1.8 - 1.8
Diameter [mm]
15
Total length [mm]
36
Lamp shape
Tube, single-ended
Technology
LED
Luminous flux [lm]
140
Halogen
No
Krypton
No
Xenon
No
Colour
White
Colour temperature [K]
4100
Suitable for torches
No
Suitable for pointer
No
Suitable for round flashing luminaire
No
Average nominal lifetime [h]
20000
Energy efficiency class
G
Energy efficiency class according to EU regulation 2019/2015
Not required
