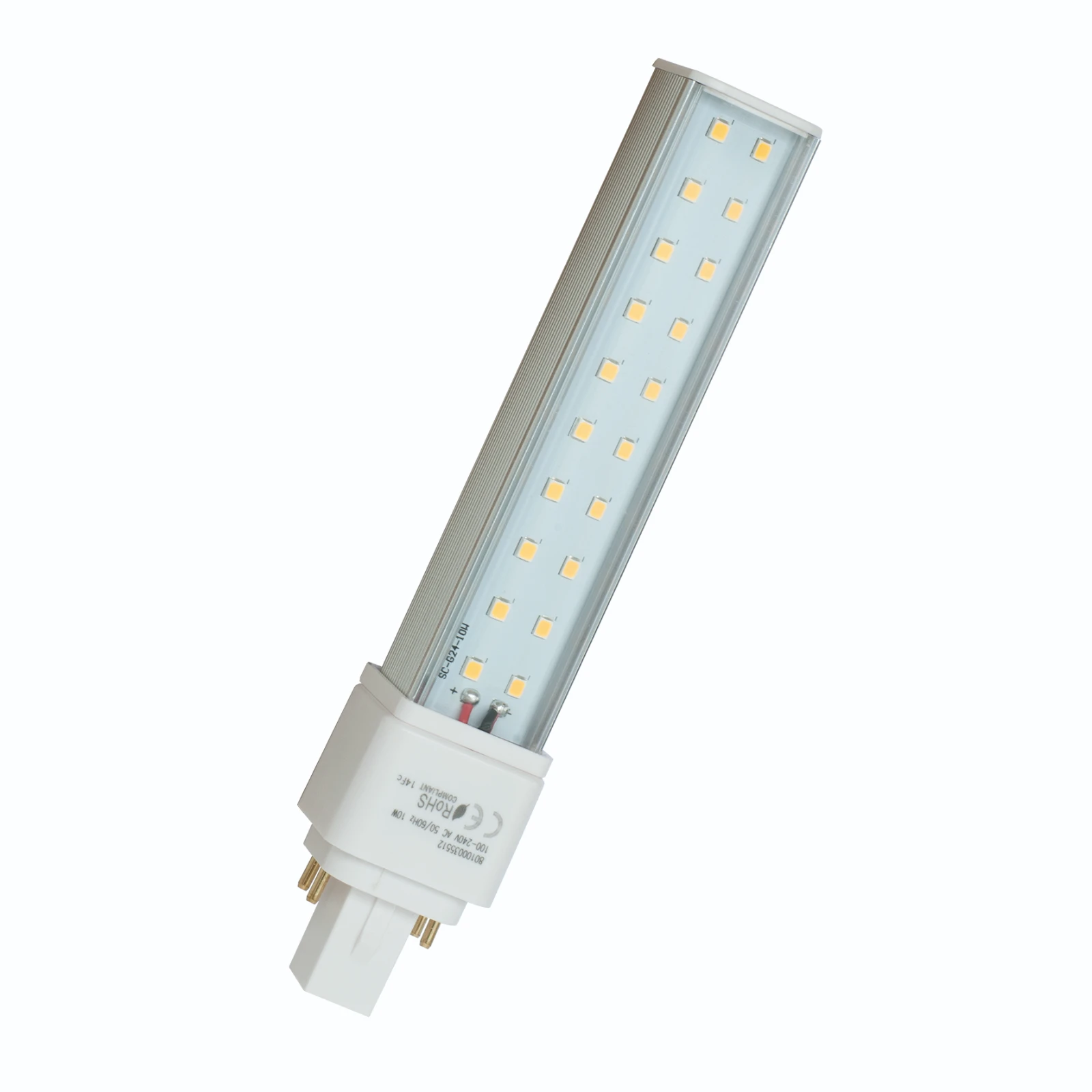

LED PL G24q TC-DEL 10W 840 Clear

Article number: 80100036392

BAI LED PL G24q 4-pins TC-DEL 10W 4000K Clear 740lm 100V-240V 120° 46x180mm Rotating cap LED-lamp Alt PLC Dulux D/E

The LED PL G24q (4-pin) TC-DEL lamps with rotating base are replacements for the commonly used compact fluorescent lamps without an integrated ballast. PL stands for PubLic as these lamps are mainly used in wall and ceiling luminaires in public areas, offices, shops and restaurants. Installation: Disconnect the ballast before use. Always read the manual carefully before installation. Ambient temperature range: -20°C to +40°C.

Please read the manual before use.

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

General ETIM properties

ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED PL G24q TC-DEL 10W 840 Clear
Brand
Bailey
Productseries
LED PL
Producttype
G24q 4P
GTIN
8714681363928
Manufacturer articlenumber
80100036392

ETIM specifications

Socket
G24q
Luminous flux [lm]
740 - 740
Nominal voltage [V]
100 - 240
Lamp power [W]
10 - 10
Colour temperature [K]
4000 - 4000
Diameter [mm]
46
Length [mm]
180
Dimmable
No
Lamp shape
Tube, single-ended
Beam angle [°]
120 - 120
Colour
White
Type of glass/cover
Clear
Lamp designation
Other
Colour rendering index CRI
80-89
Voltage type
AC
Filament lamp
No
Power factor
0.9
Lamp efficacy [lm/W]
74
Nominal current [mA]
120 - 120
Colour of light according to EN 12464-1
Neutral white 3300-5300 K
Housing colour
White
Average nominal lifetime [h]
50000
Degree of protection (IP)
IP40
Energy Efficiency Index (EEI)
0.17
Energy efficiency class
No
Colour consistency (McAdam ellipse)
SDCM6
Min. number of switching cycles
15000
Weighted energy consumption in 1000 hours [kWh]
10
Remote operation possible
No
With remote control
No
Photobiological safety according to EN 62471
RG0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Downloads
Manual
Manual_LEDPLG24-02.pdf
Cross-reference list
CrossReference_PL-NL.pdf

Successor
LED PL TC-DEL G24q 4P 10W (26W) 1000lm 840 FR AC

143162

Alternative articles
LED PL G24q TC-DEL 10W 830 Clear

80100035512
