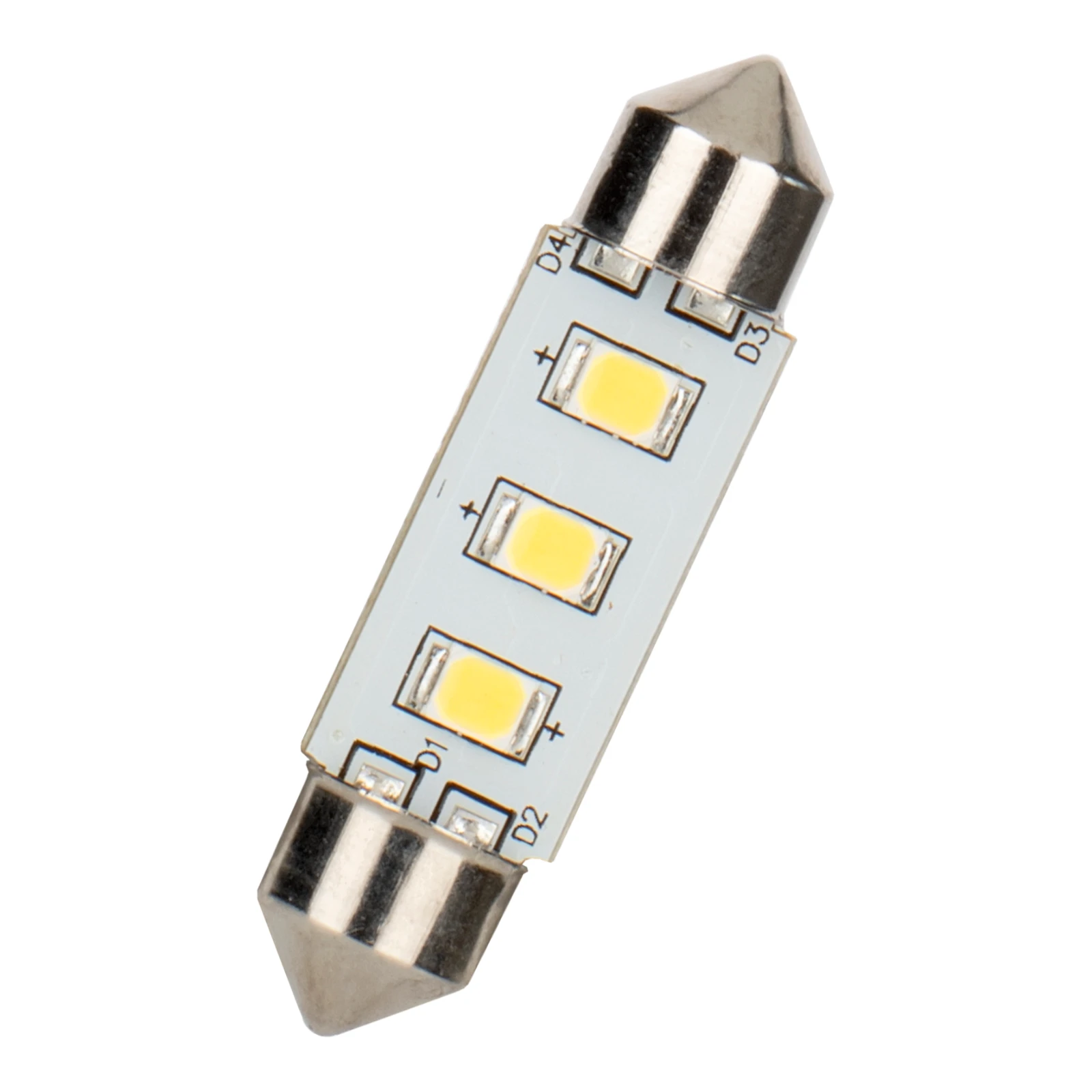

LED S8.5 10X39 10V-30V AC/DC 0.7W 52lm 865
Article number: 80100001931
BAI Miniature LED festoon S8.5 10x39mm 10V-30V AC/DC 0.7W 6500K 52lm 12V-24V-28V Indication- and signalling lamp
In view of the call for more sustainable products, a large part of the traditional miniature and signaling lamps is now also available in LED.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Lamps
ETIM class
Indication- and signalling lamp
Name
LED S8.5 10X39 10V-30V AC/DC 0.7W 52lm 865
Brand
Bailey
Productseries
Miniature LED
Producttype
Festoon
GTIN
8714681019313
Manufacturer articlenumber
80100001931
ETIM specifications
Socket
S8.5
Lamp voltage [V]
10 - 30
Nominal current [mA]
60
Lamp power [W]
0.7 - 0.7
Diameter [mm]
10
Total length [mm]
39
Lamp shape
Tube, double-ended
Technology
LED
Luminous flux [lm]
52
Halogen
No
Krypton
No
Xenon
No
Colour
White
Colour temperature [K]
6500
Suitable for torches
No
Suitable for pointer
No
Suitable for round flashing luminaire
No
Average nominal lifetime [h]
20000
Energy efficiency class
G
Energy efficiency class according to EU regulation 2019/2015
Not required
