Relamp LED T8 Tube Batten 1200 G13 1x36W IP65 IK10

Article number: 146961

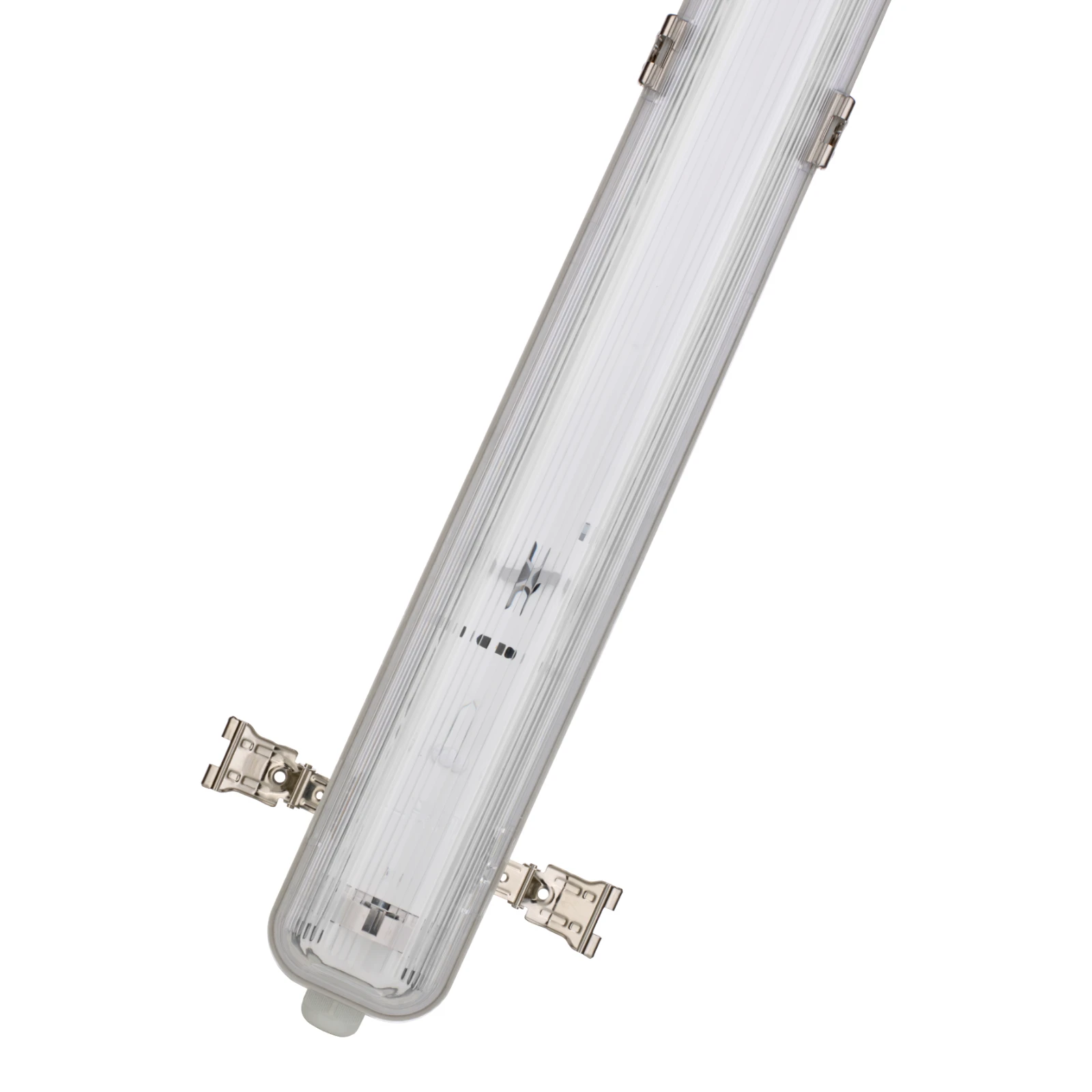

BAI Surface-mounted Batten for LED Tube T8 1200mm G13 230V/AC (lamp not included) Max. 36W LED IP65 IK10 CLI 1260x70x68mm

Waterproof fixtures with replaceable bulbs are more sustainable than fixtures with a fixed LED element. Replacing energy-efficient light sources when they reach the end of their lifespan is simply more sustainable than replacing the entire fixture. That's why Bailey Lights offers Relamp fixtures. This IP65 IK10 fixture (also called batten or tri-proof) houses a T8 220-240Vac LED tube with a G13 base. The waterproof fixture is suitable for one LED tube, has no ballast, and is easy to mount to the ceiling and connect. This fixture is supplied without an LED tube; you can choose the LED tube that best suits your situation. Bailey offers a wide selection. Accessories are included (two PG13.5 cable glands, Stainless steel locking clips, and mounting clips). Note: This fixture is only suitable for LED tubes. Ideal for damp areas, garages, porches, and galleries.

Please read the manual before use. Available ± December 2025.

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

General ETIM properties

ETIM group
Luminaires
ETIM class
Ceiling-/wall luminaire
Name
Relamp LED T8 Tube Batten 1200 G13 1x36W IP65 IK10
Brand
Bailey
Productseries
BaiLum surface-mounted
Producttype
LED Tube T8 Batten
GTIN
8714681469613
Manufacturer articlenumber
146961

ETIM specifications

Lamp holder
G13
Housing colour
Grey
Degree of protection (IP)
IP65
With movement sensor
No
With light sensor
No
Width [mm]
70
Length [mm]
1260
Nominal voltage [V]
220 - 240
Suitable for wall mounting
Yes
Impact strength
IK10
Dimmable
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
No
Suitable for light line configuration
No
Suitable for workplace according to EN 12464-1
Yes
Lamp type
LED not exchangeable
With light source
No
Suitable for emergency lighting
No
Suitable for number of light sources
1
Housing material
Plastic
Material cover
Plastic, transparent
Type of grid
None
Voltage type
AC
With control gear
No
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Dimming depending on control gear
No
No dim function
Yes
Light distributor
None
Beam angle
> 80° - Extreme wide beam
Max. number of luminaires per miniature circuit breaker B16 (MCB)
300
Degree of protection (NEMA)
Other
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Rated ambient temperature according to IEC 62722-2-1 [°C]
-20 - 40
Emergency power supply integrated
No
Covering of the luminaire with thermally insulating material possible
No
With air slots
No
Filament test according to IEC 60695-2-11
None
Suitable for lamp power [W]
36 - 36
Max. system power [W]
300
Luminaire efficacy [lm/W]
110
Rated luminous flux according to IEC 62722-2-1 [lm]
1980
Height/depth [mm]
68
Type of wiring
Suitable for loop-through wiring
Number of poles
3
Conductor cross section [mm²]
0.75
Connection type
Screwed terminal
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Compatible with Casambi
No
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
No
Suitable for clamp-mounting
No
With mounting material
Yes
Containing product according to 2019/2020/EU
No
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP65
Emergency power supply system
None
Emergency function monitoring system
None
With switch
No
With presence detector
No
Connectable conductor cross section [mm²]
0.5 - 2.5
Ball-proof according to DIN 18032-3
No
