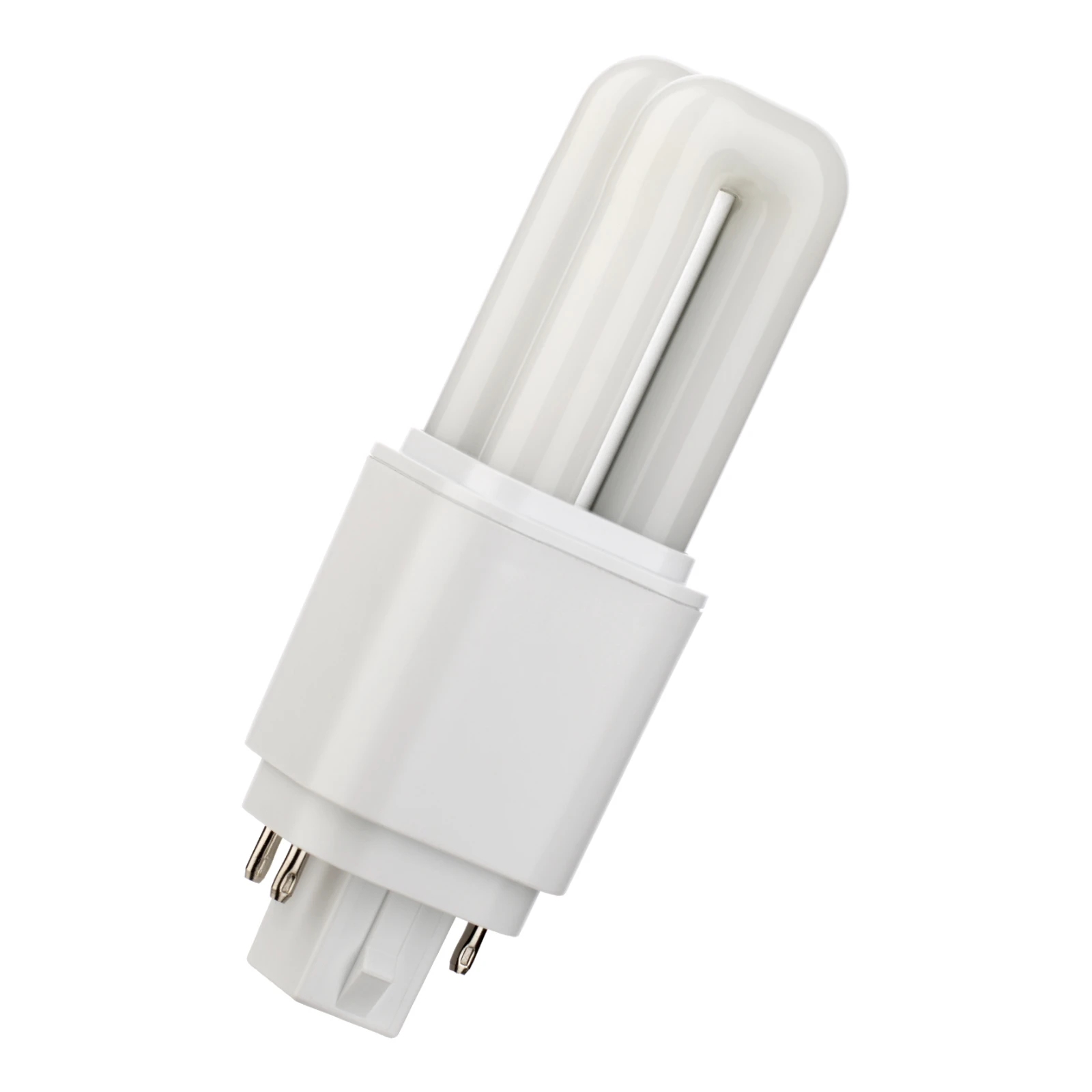

LED PL Glass TC-DEL G24q 4P 4.5W (10W) 630lm 840 AC

Article number: 146749

BAI LED PL Glass G24q 4-pins TC-DEL 4.5W (10W) 4000K Frosted 630lm 230V-240V 360° 35x109mm Temp. -20°C +40°C LED-lamp Alt PLC Dulux D

The LED PL Glass G24q (4-pin) TC-DEL lamps are replacements for the often used compact fluorescent lamps without integrated ballast. PL stands for PubLic as these lamps are mainly used in public spaces, corridors, offices and as orientation lighting. This PL LED series has the same shape and size as its fluorescent predecessors. In addition, just like their predecessor, they are made of glass, which ensures the same uniform light image. They are therefore a 1-on-1 sustainable replacement. Connect directly to mains voltage (AC). Not for use with Electronic Ballast (HF/ECG), disconnect ballast before use! Always read the manual carefully before installation.

Please read the manual before use. Available ± end of July 2025

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

Click here for Eprel specifications

General ETIM properties

ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED PL Glass TC-DEL G24q 4P 4.5W (10W) 630lm 840 AC
Brand
Bailey
Productseries
LED PL Glass
Producttype
G24q 4P AC
GTIN
8714681467497
Manufacturer articlenumber
146749

ETIM specifications

Socket
G24q
Luminous flux [lm]
630 - 630
Nominal voltage [V]
220 - 240
Lamp power [W]
4.5 - 4.5
Colour temperature [K]
4000 - 4000
Diameter [mm]
35
Length [mm]
109
Dimmable
No
Lamp shape
Tube, single-ended
Beam angle [°]
360 - 360
Colour
White
Type of glass/cover
Opal
Lamp designation
Other
Colour rendering index CRI
80-89
Voltage type
AC
Filament lamp
No
Rated luminous flux according to IEC 62612 [lm]
630
Power factor
0.5
Lamp efficacy [lm/W]
140
Nominal current [mA]
38 - 38
Colour of light according to EN 12464-1
Neutral white 3300-5300 K
Housing colour
White
Average nominal lifetime [h]
30000
Degree of protection (IP)
IP20
Colour consistency (McAdam ellipse)
SDCM5
Min. number of switching cycles
15000
Weighted energy consumption in 1000 hours [kWh]
5
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
Yes
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
Yes

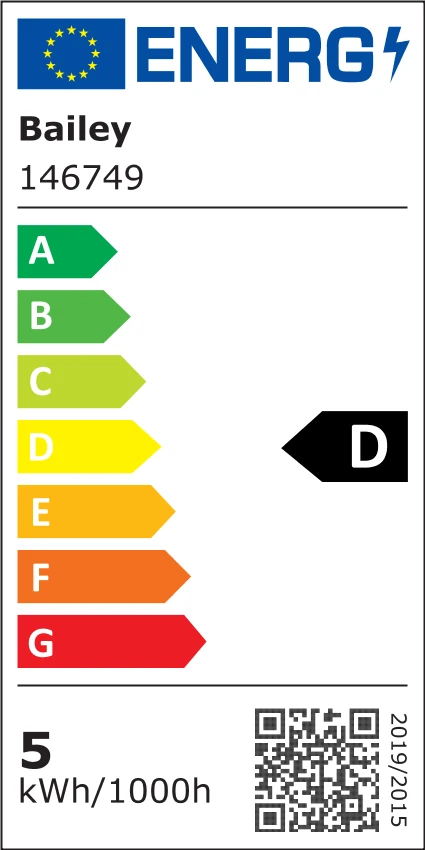

Energy efficiency class according to EU regulation 2019/2015
D
With twilight switch
No
Material of light bulb
Glass
Downloads
Manual
IM_LED_PL-Glass_G24q-A502.pdf
