EcoPack 3pcs LED Renovation Lamp 11W 1055lm 840 with cable

Article number: 146699

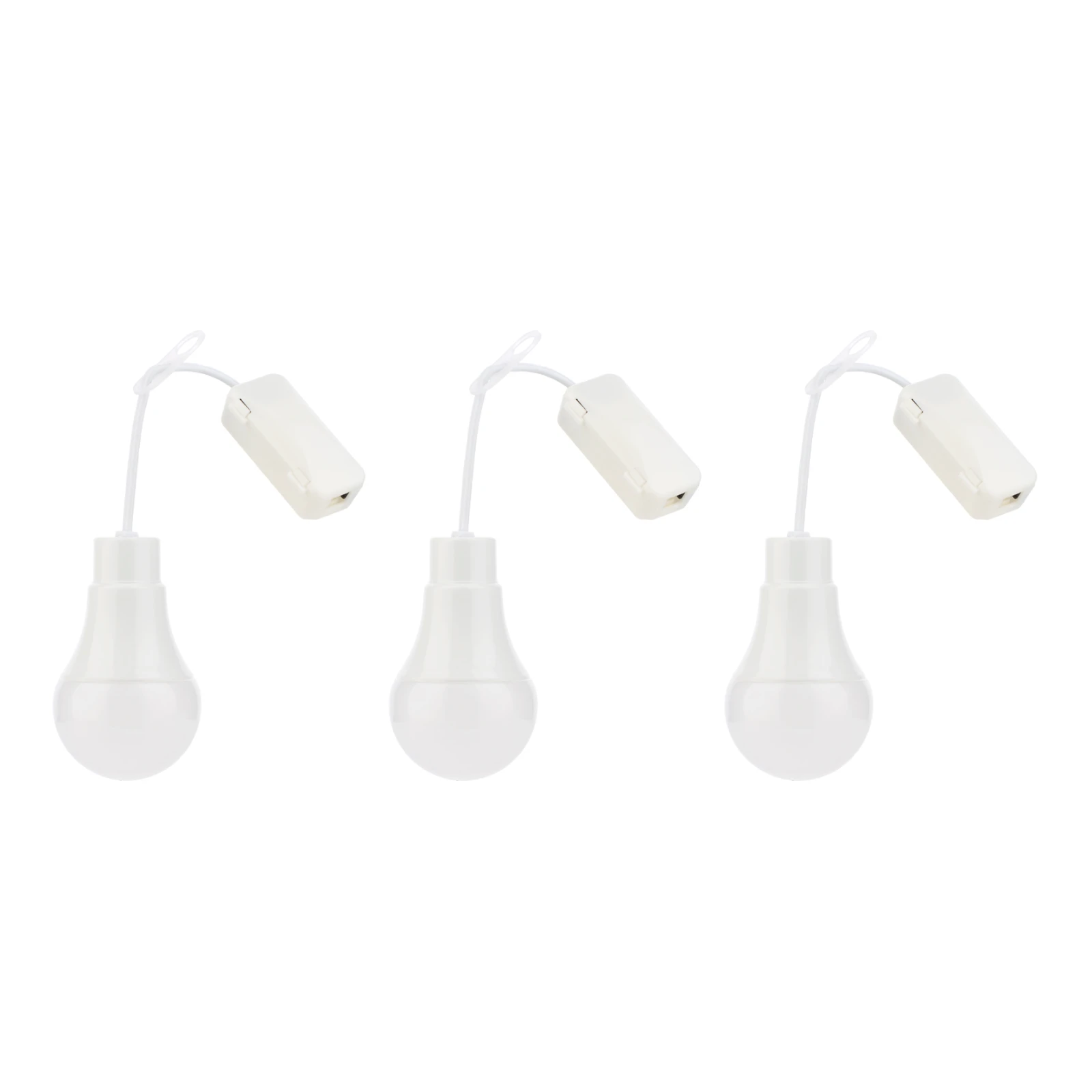

BAI EcoPack 3pcs Renovation lampholder with fixed LED A60 E27 11W (75W) 1055lm 4000K Opal with 13cm cabel and junction box

Bailey LED lamp incl. renovation holder and strain relief (packed per 3). Lamp holder and light source are permanently connected to each other. Primarily intended for (indoor) use during renovation, on construction sites or places where temporary light is desired. Mounting directly on the mains (220-240V). Power cable is incorporated in the junction box for safe installation. With a light colour of 4000K and 1055lm, ideal light for odd jobs.

Please read the manual before use.

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

Click here for Eprel specifications

General ETIM properties

ETIM group
Luminaires
ETIM class
Pendant luminaire
Name
EcoPack 3pcs LED Renovation Lamp 11W 1055lm 840 with cable
Brand
Bailey
Productseries
Robust LED work
Producttype
LED Renovation lamp
GTIN
8714681466995
Manufacturer articlenumber
146699

ETIM specifications

Housing colour
White
Lamp holder
None
Housing material
Plastic
Suitable for workplace according to EN 12464-1
No
Lamp type
LED not exchangeable
Pendant length [mm]
130 - 130
With light source
Yes
Suitable for number of light sources
1
Suitable for light line configuration
No
Material cover
Plastic, opal
Type of grid
None
Voltage type
AC
Nominal voltage [V]
220 - 240
Nominal current [mA]
75 - 75
Type of control gear
Not required
With control gear
No
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming programmable
No
Dimming DSI
No
Dimming RF
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
None
Reflector
None
Light distribution
Symmetric
Colour consistency (McAdam ellipse)
SDCM6
Light outlet
Direct
Direct-/indirect proportion separately controllable
No
Rated lifetime L70/B50 at 25 °C [h]
20000
Degree of protection (IP)
IP20
Impact strength
IK02
Protection class according to IEC 61140
II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Suitable for emergency lighting
No
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
None
Suitable for lamp power [W]
11 - 11
Max. system power [W]
11
Rated luminous flux according to IEC 62722-2-1 [lm]
1055
Colour of light
White
Luminaire efficacy [lm/W]
96
Colour temperature [K]
4000 - 4000
Colour rendering index CRI
80-89
Power factor
0.7
Flickering value Pst LM
1
Constant light output (CLO)
No
Stroboscope effect value SVM
0.4
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Width [mm]
60
Height/depth [mm]
98
Length [mm]
291
Diameter [mm]
60
With suspension
Yes
Type of wiring
Ending
Number of poles
2
Conductor cross section [mm²]
0.75
Connection type
Other
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Energy efficiency class of the light source according to EU regulation 2019/2015
No
Operation by Bluetooth
No
Dimmable
No
Containing product according to 2019/2020/EU
No
Emergency power supply system
None
With movement sensor
No
With presence detector
No
With light sensor
No
Luminaire efficacy [lm/W]
96 - 96
Rated luminous flux according to IEC 62722-2- 1 [lm]
1055 - 1055
Connectable conductor cross section [mm²]
0.5 - 0.75
Compatible with Casambi
No
Downloads
Manual
IM_LedRenovationLamp-01.pdf
