LED G4 12V 1.6W (20W) 200lm 827 Clear
Article number: 146555

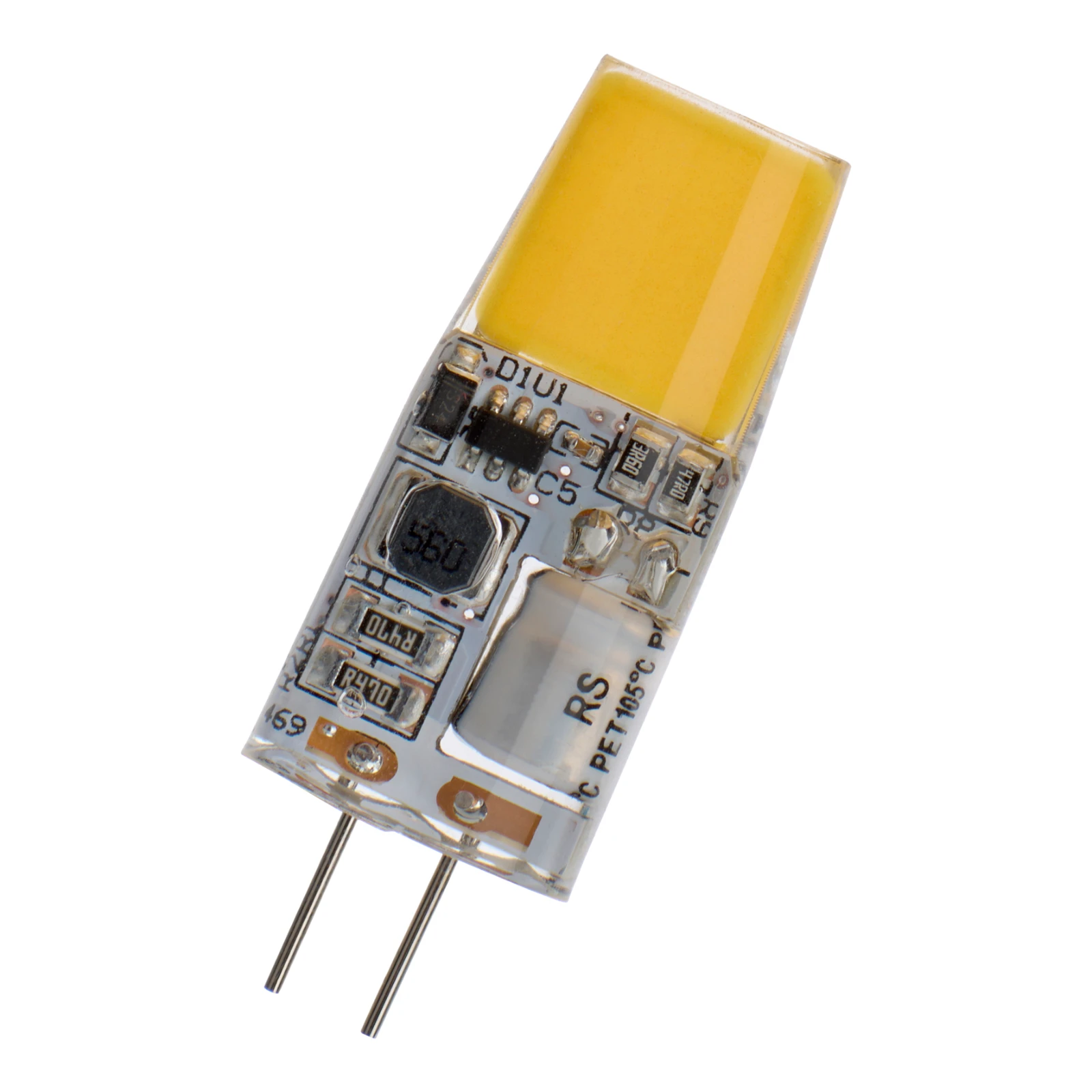

BAI LED G4 12V AC/DC 1.6W (20W) 200lm 2700K Clear 320° 14x40mm Capsule LED-lamp
The LED compact series consists of lamps that are ideal as replacements for halogen lamps due to their compact design. This G4 version has a wide voltage range and is also suitable for voltage type AC / DC, making it suitable for many applications, both in standard 12Vac low-voltage systems and in systems with DC voltage. Ambient temperature range: -20°C to +40°C.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED G4 12V 1.6W (20W) 200lm 827 Clear
Brand
Bailey
Productseries
LED Capsule
Producttype
G4 DIM
GTIN
8714681465554
Manufacturer articlenumber
146555
ETIM specifications
Socket
G4
Luminous flux [lm]
200 - 200
Nominal voltage [V]
12 - 12
Lamp power [W]
1.6 - 1.6
Colour temperature [K]
2700 - 2700
Diameter [mm]
14
Length [mm]
40
Dimmable
No
Lamp shape
Tube, single-ended
Beam angle [°]
320 - 320
Colour
White
Type of glass/cover
Clear
Lamp designation
Other
Colour rendering index CRI
80-89
Voltage type
AC/DC
Filament lamp
No
Power factor
0.5
Lamp efficacy [lm/W]
125
Nominal current [mA]
210 - 210
Colour of light according to EN 12464-1
Warm white < 3300 K
Housing colour
Colourless
Average nominal lifetime [h]
15000
Degree of protection (IP)
IP20
Energy efficiency class
No
Colour consistency (McAdam ellipse)
SDCM6
Min. number of switching cycles
30000
Weighted energy consumption in 1000 hours [kWh]
2
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG1
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
Yes
Energy efficiency class according to EU regulation 2019/2015
E
With twilight switch
No
Material of light bulb
Plastic
