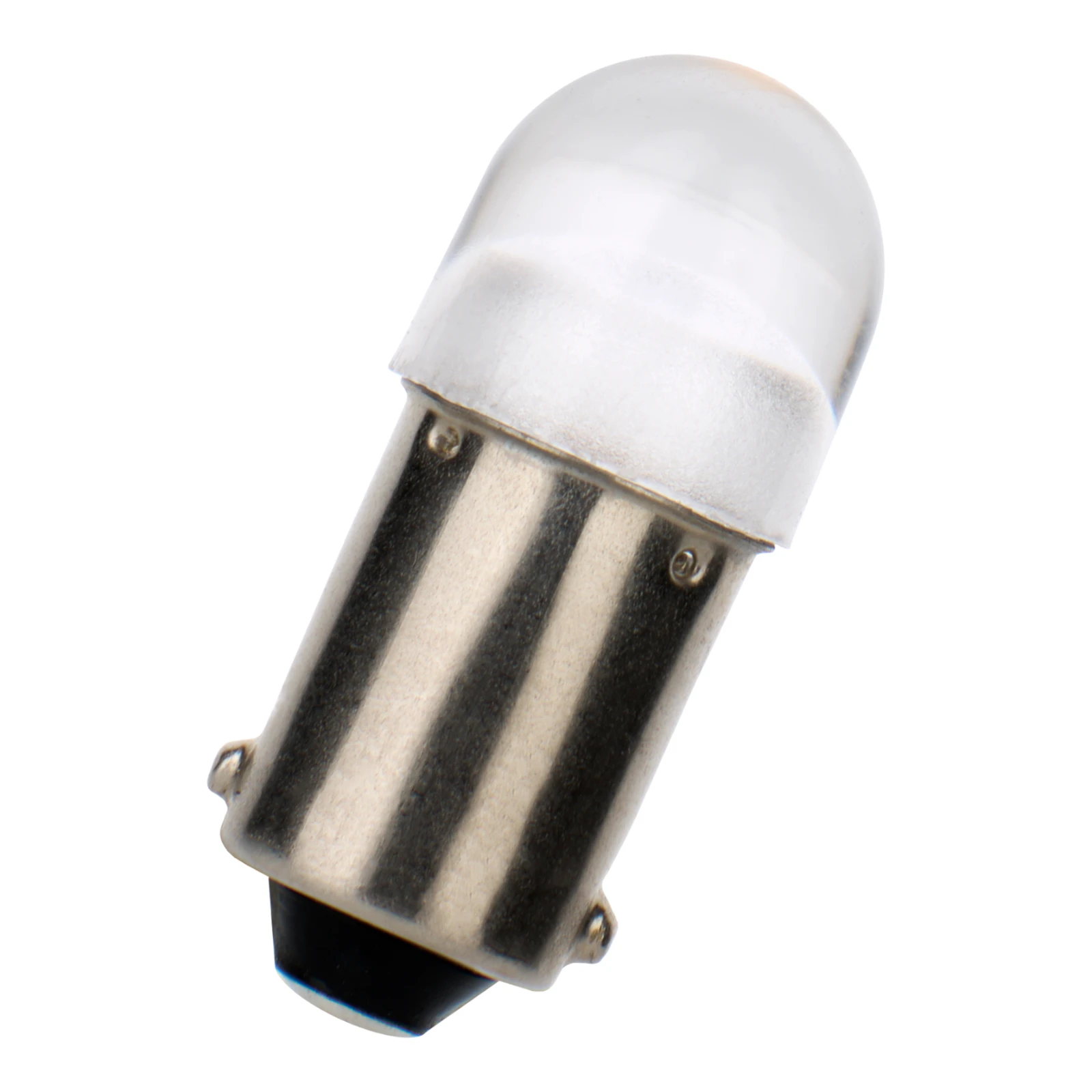

LED Ba9s T10x25 HO 12V AC/DC 0.4W 25lm White
Article number: 146536
BAI Miniature Single LED Ba9s Tube 10x25mm 12V AC/DC 33mA 0.033A 0.4W White 3000K 30000h
In view of the call for more sustainable products, a large part of the traditional miniature and signaling lamps is now also available in LED.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Lamps
ETIM class
Indication- and signalling lamp
Name
LED Ba9s T10x25 HO 12V AC/DC 0.4W 25lm White
Brand
Bailey
Productseries
Miniature LED
Producttype
Ba9s
GTIN
8714681465363
Manufacturer articlenumber
146536
ETIM specifications
Socket
BA9s
Lamp voltage [V]
12 - 12
Nominal current [mA]
33
Lamp power [W]
1 - 1
Diameter [mm]
10
Total length [mm]
25
Lamp shape
Tube, single-ended
Technology
LED
Luminous flux [lm]
25
Halogen
No
Krypton
No
Xenon
No
Colour
White
Colour temperature [K]
3000
Suitable for torches
No
Suitable for pointer
No
Suitable for round flashing luminaire
No
Average nominal lifetime [h]
30000
Energy efficiency class
G
Energy efficiency class according to EU regulation 2019/2015
G
