RoBust LED Rope 2S 20M 8W/m 840lm/m 4000K IP65 on Reel

Article number: 146507

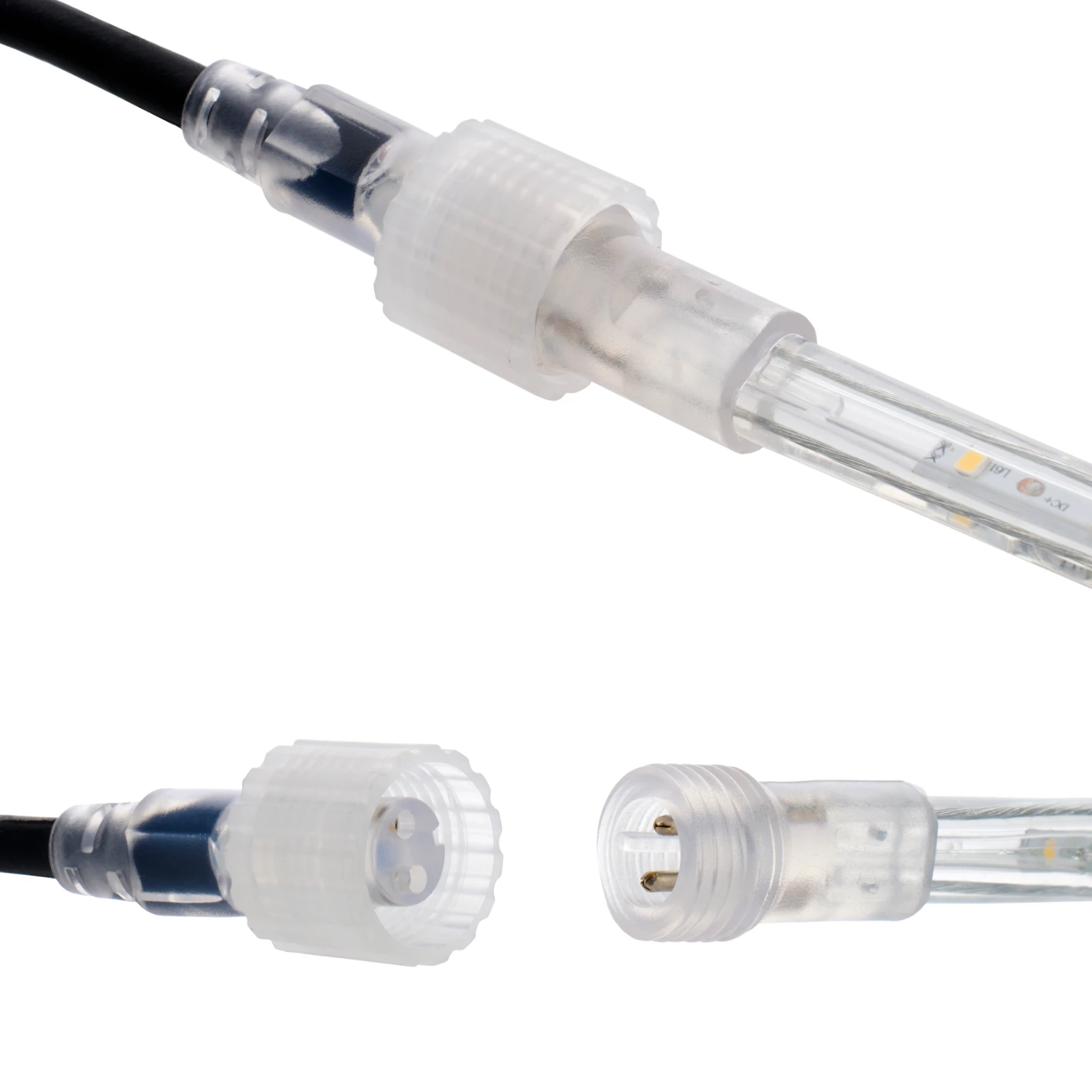

BAI RoBust LED Rope 20 Meter High Output (HO) Double-sided light 240° 8W/m 840lm/m 4000K IP65 IK10 12x7mm on reel + Power Cable 1.5 meter with built-in AC/DC adapter and glue & endcap Max. 2x interconnectable (40M)

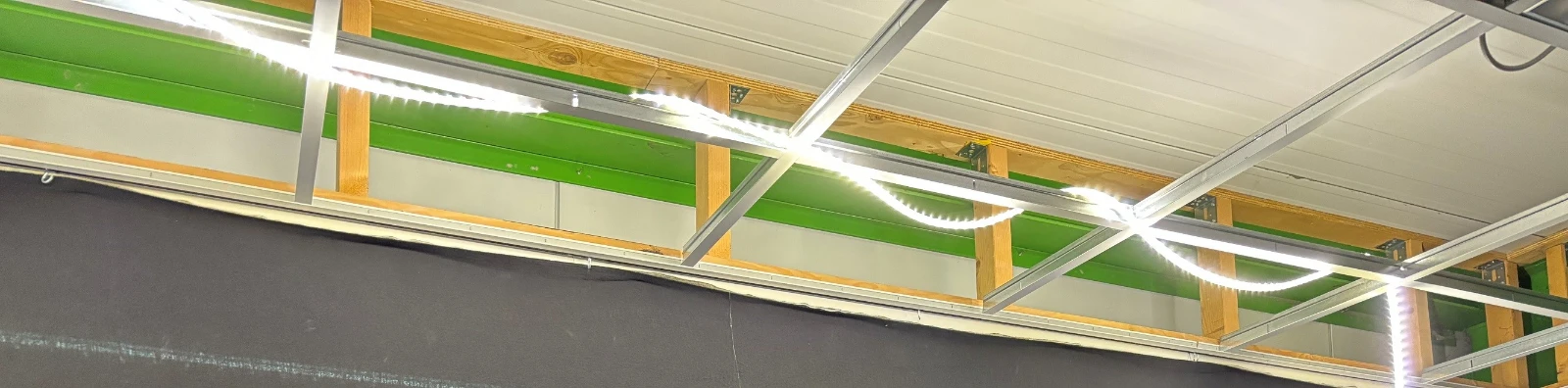

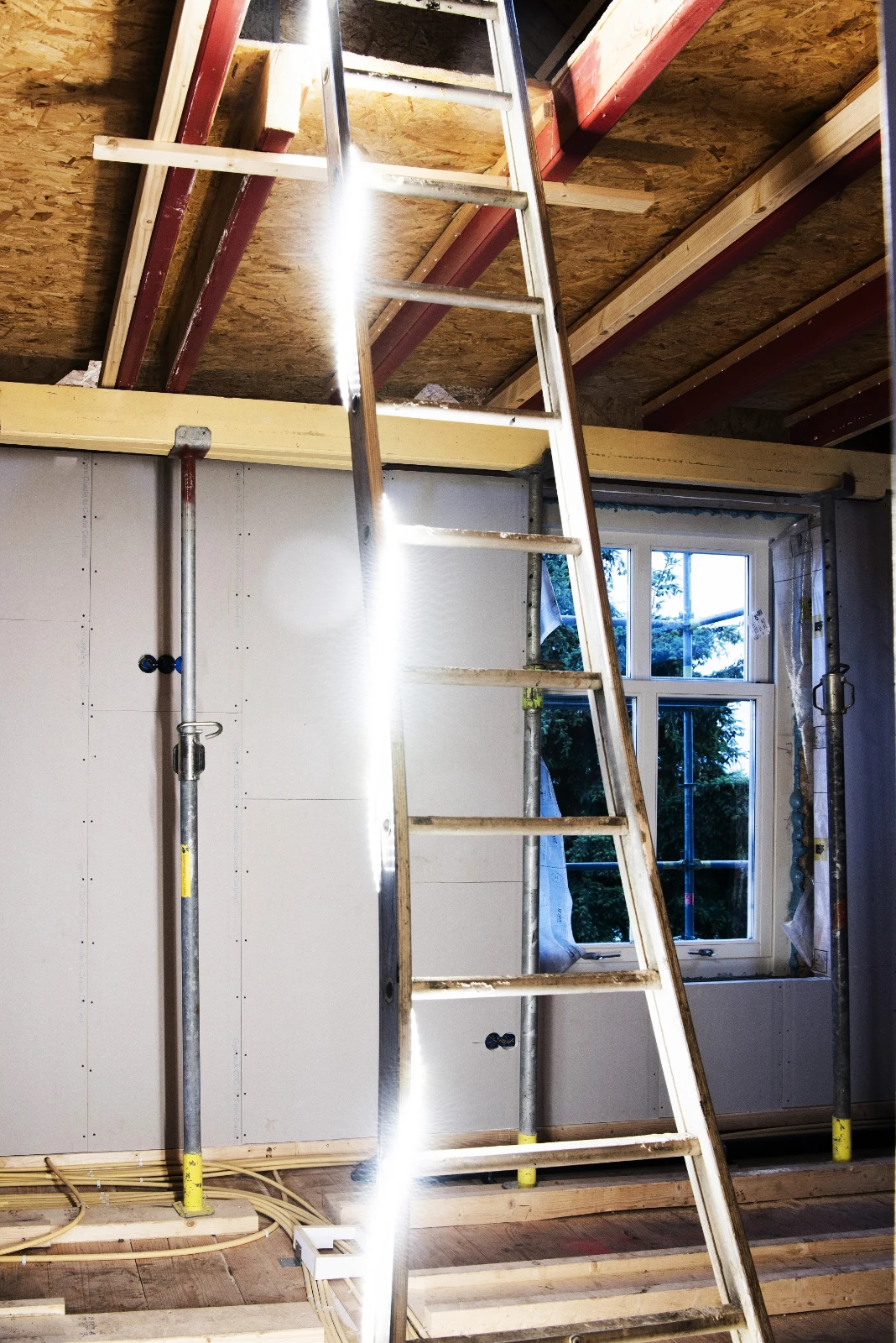

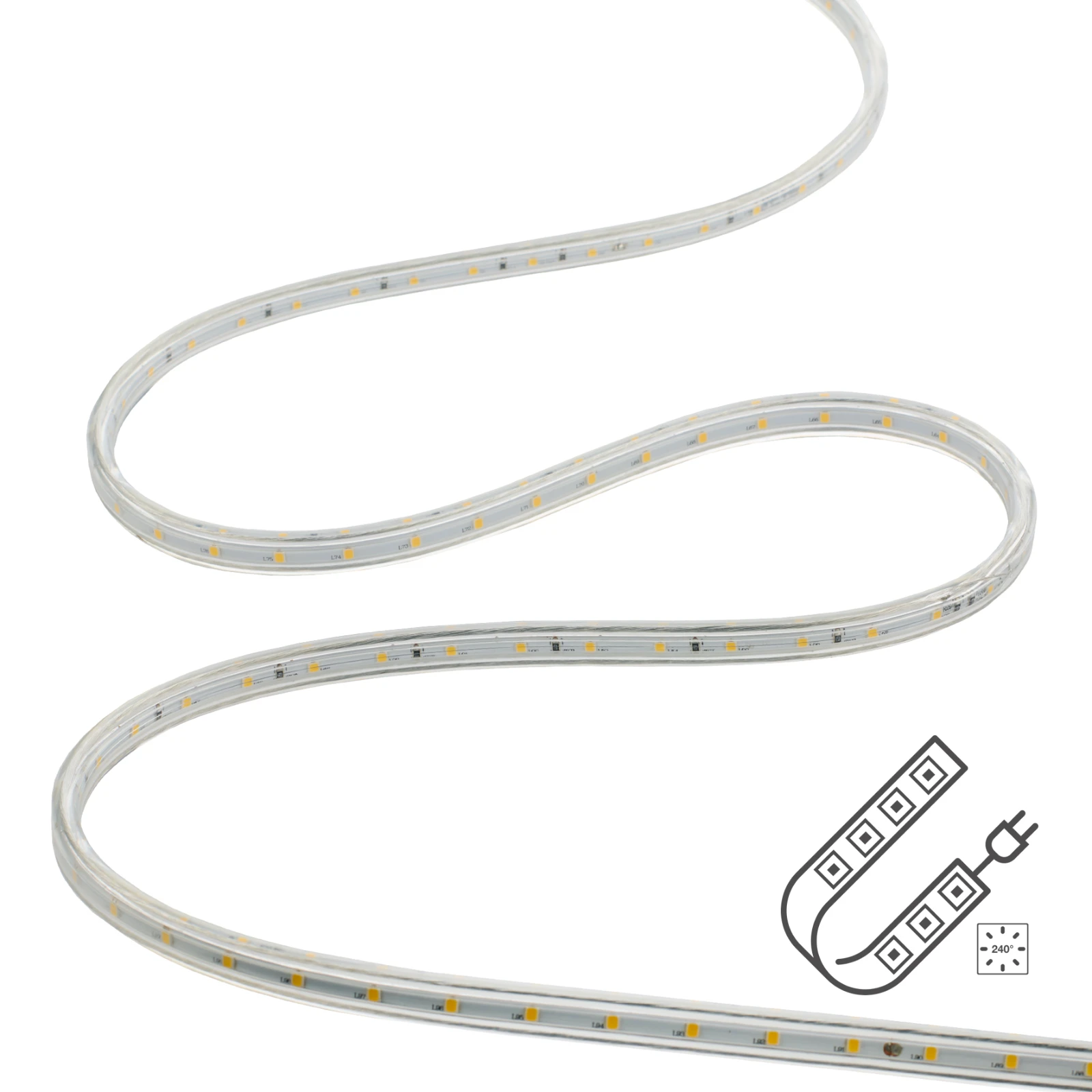

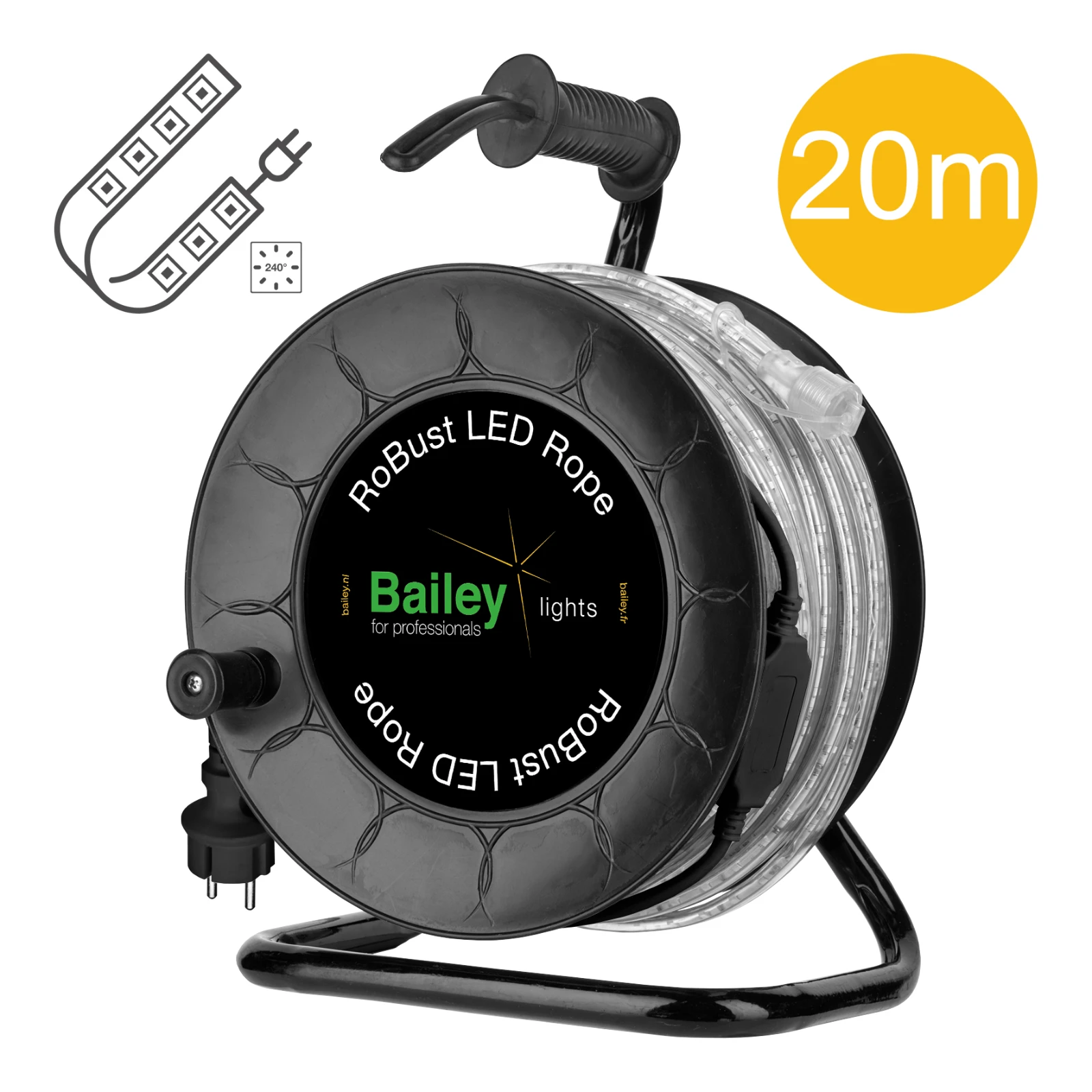

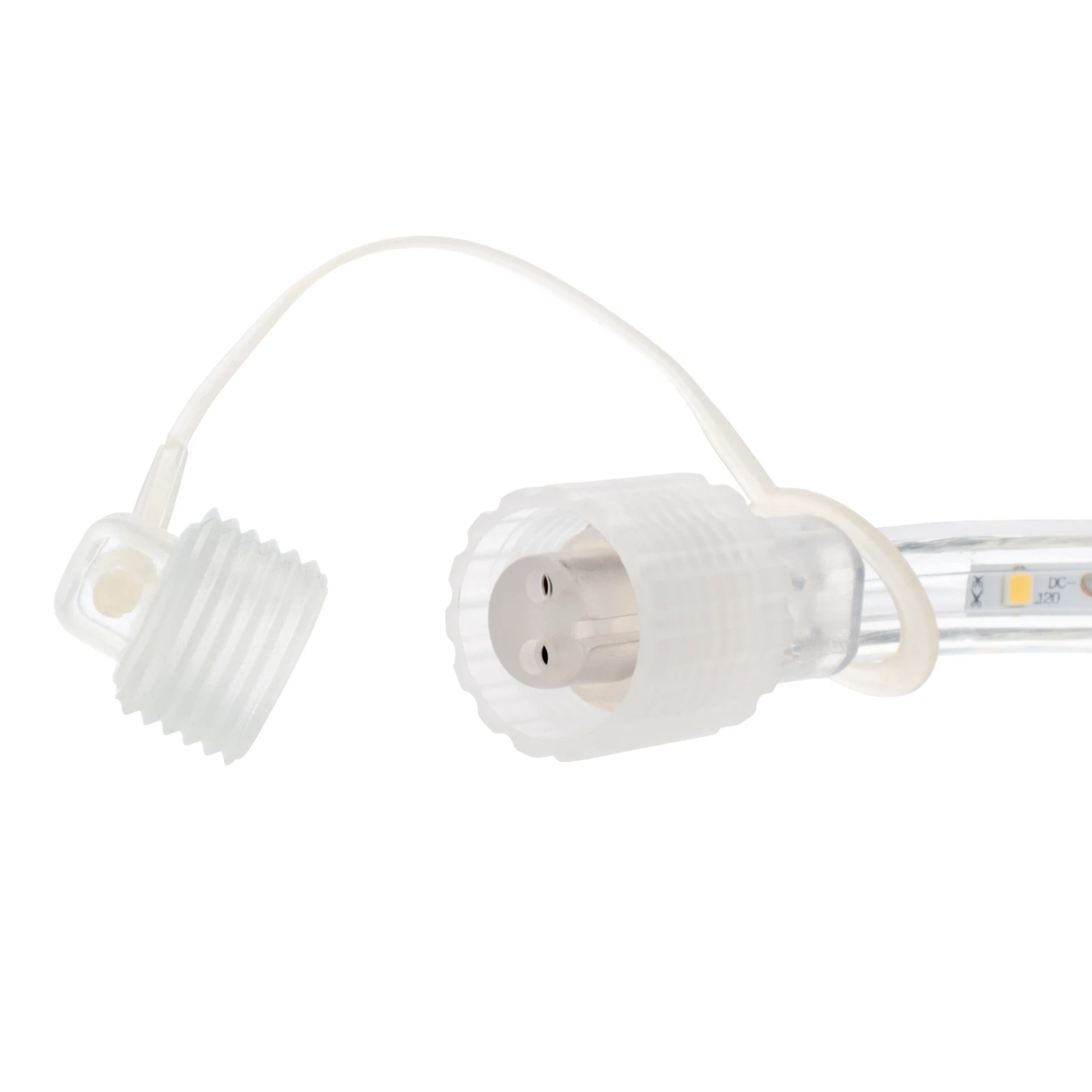

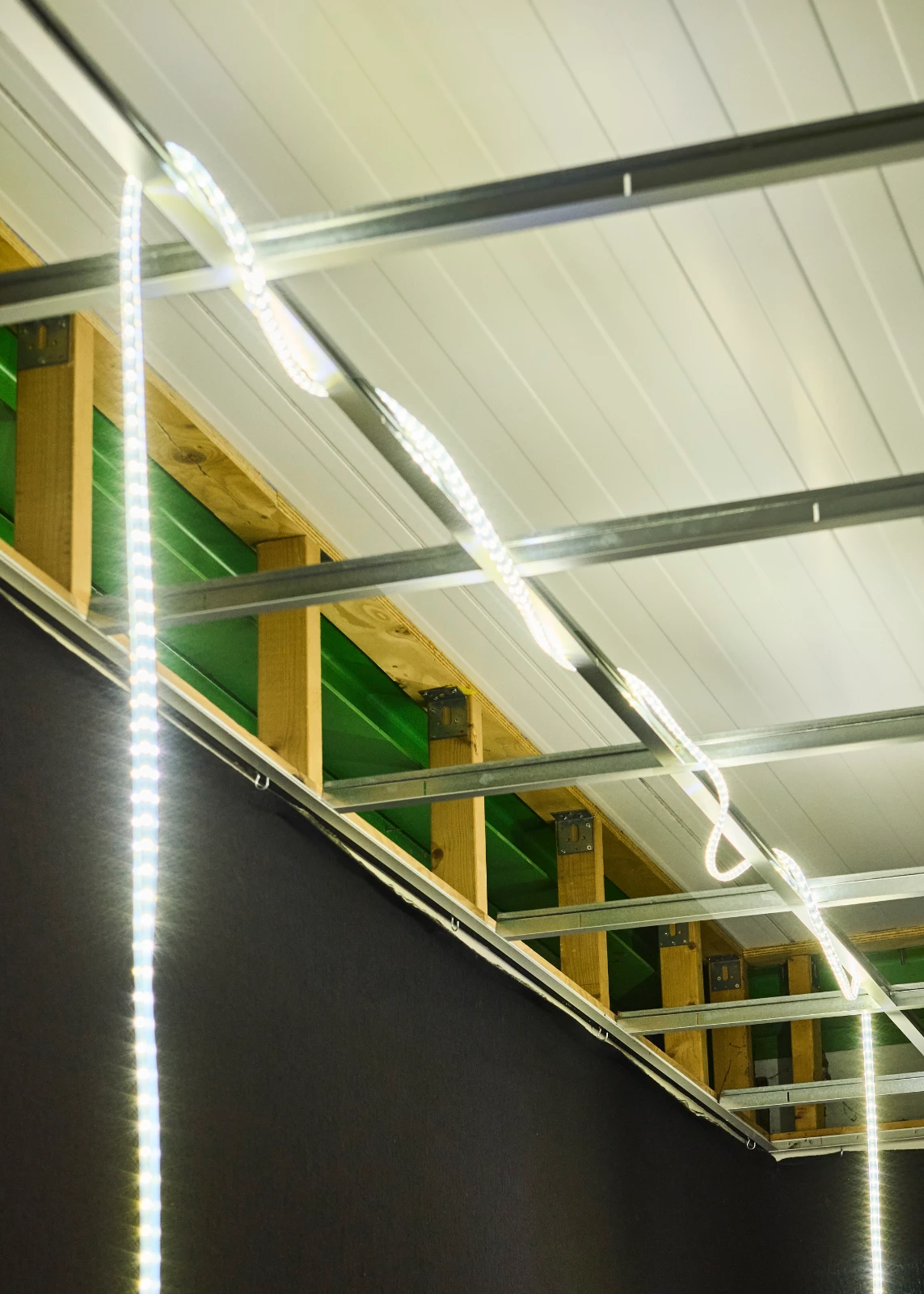

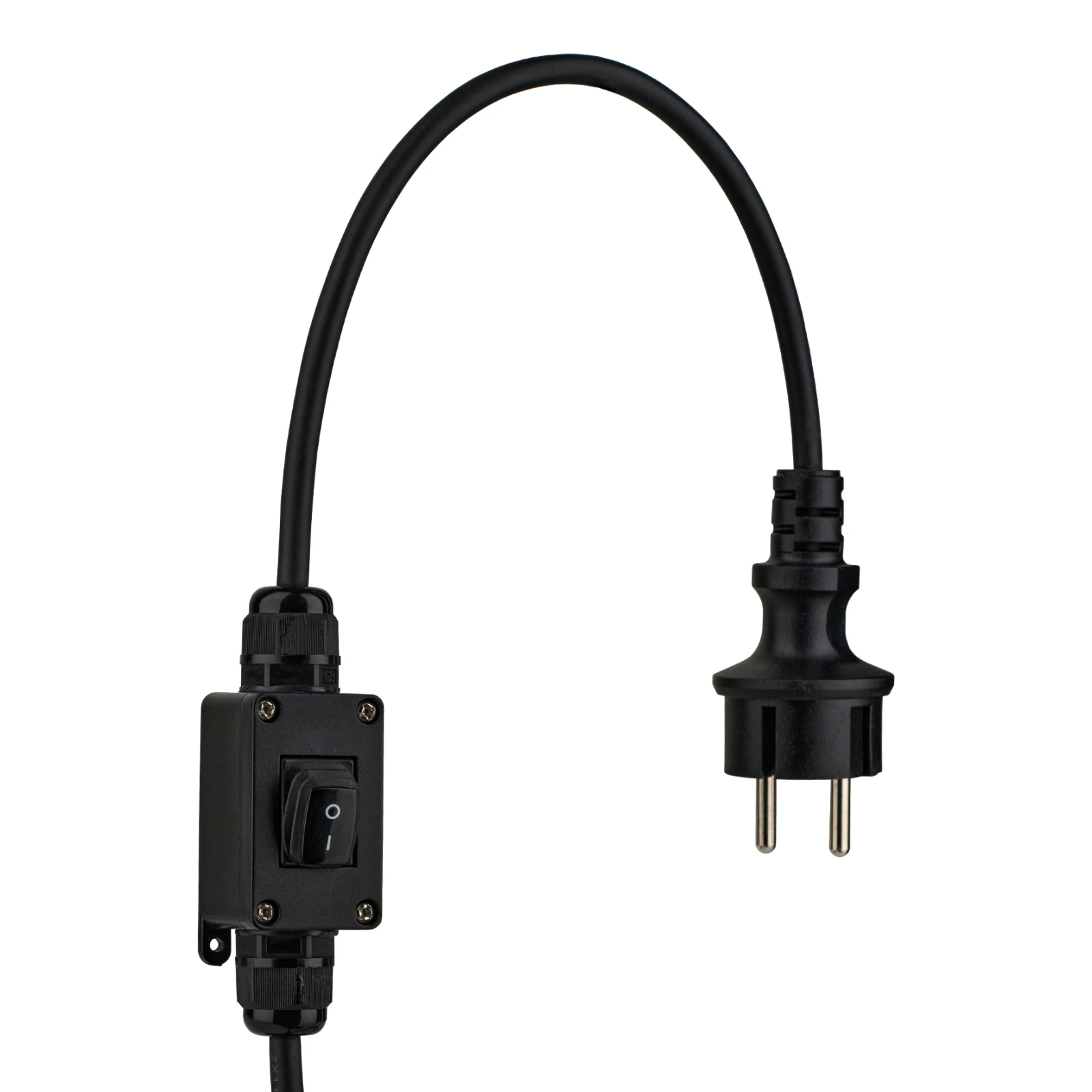

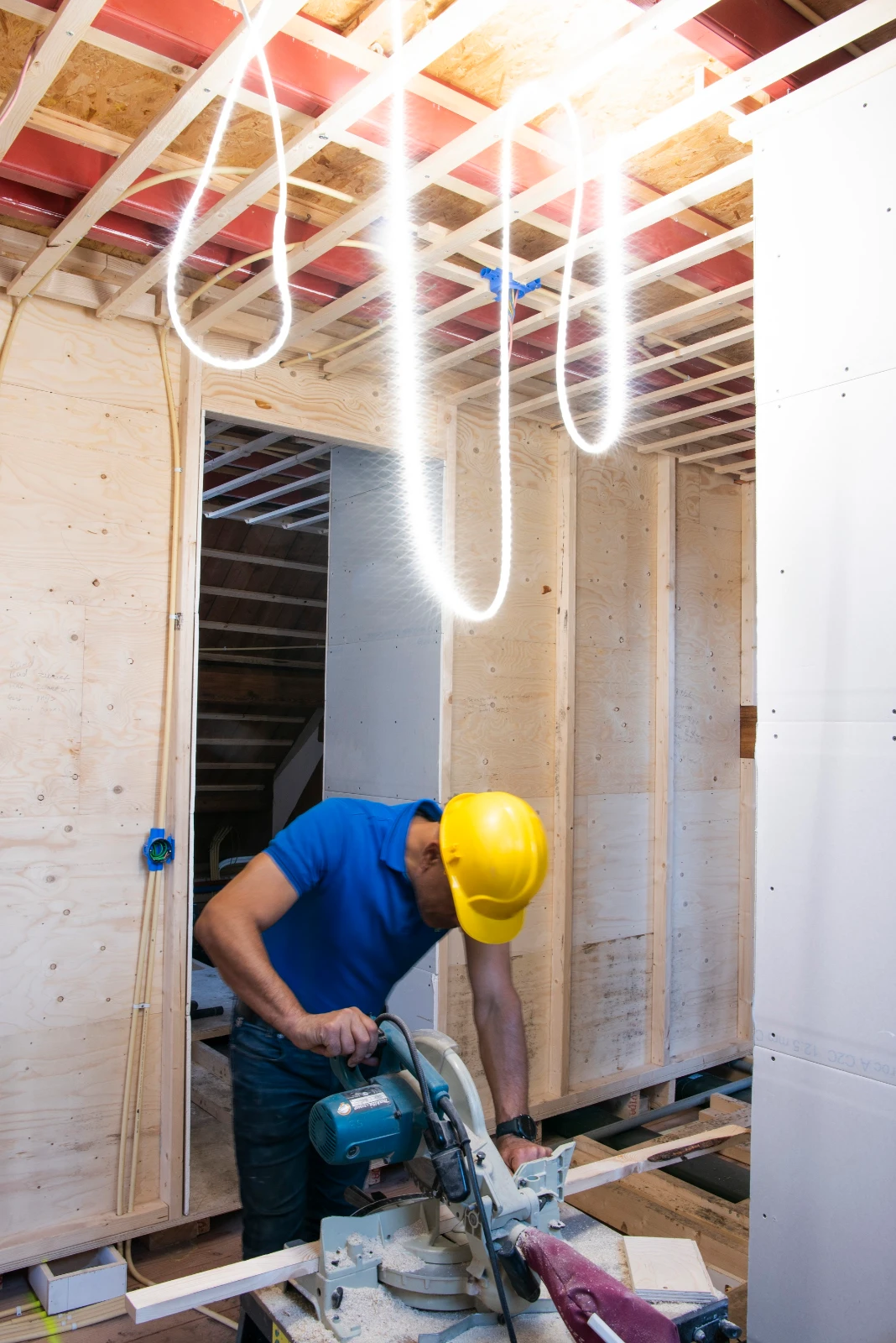

The RoBust LED Rope 2S 240° is a robust light rope of 20 meters intended to illuminate construction sites and yards and to protect walking and work paths. This Class II light hose is water resistant (IP65) and can withstand a knock (IK10) because it is cast in silicone. The 2S in the description stands for “2-sided”. This LED Rope provides practical all-round light (240 degrees) because there are LED chips on 2 sides. With 2x60 LEDs/mtr they emit 840 lumens/mtr of cold light (4000K). This gives a feeling of daylight in dark spaces. Supplied on a reel so it is easy to take with you after every job. This Robust is easy to connect. Including 230V power supply with a built-in AC/DC adapter and 1.5 meter power cable with on/off switch. Mounting clips available (item 145378). The rope can be shortened using standard PVC glue (not included) and end cap (available separately with item number 145376). Suitable for ambient temperatures from -20°C to +40°C. CAUTION: Never operate LED Rope on the reel, always unwind completely before use.

Please read the manual before use. Fully unroll LED Rope before use.

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

Click here for Eprel specifications

General ETIM properties

ETIM group
Luminaires
ETIM class
Light ribbon/-hose/-strip
Name
RoBust LED Rope 2S 20M 8W/m 840lm/m 4000K IP65 on Reel
Brand
Bailey
Productseries
Robust LED rope
Producttype
8W/m 2S
GTIN
8714681465073
Manufacturer articlenumber
146507

ETIM specifications

Total length [m]
20
Luminous flux per meter [lm]
840
Colour temperature [K]
4000 - 4000
Colour of light
White
Lamp voltage [V]
220 - 240
Degree of protection (IP)
IP65
Model
Hose
Mounting method
Other
Lamp type
LED not exchangeable
Number of nodes per meter
120
Lamp power per meter [W]
8
Voltage type
DC
Beam angle [°]
240
Type of control gear
LED operating device voltage-controlled
Suitable for dimmer
No
Exchangeable control gear
No
Energy efficiency class of the built-in lamp
Other
Rated lifetime L70/B50 at 25 °C [h]
15000
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) [%]
70
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) [%]
50
Protection class according to IEC 61140
II
Max. system power [W]
450
Constant light output (CLO)
Yes
Colour rendering index CRI
80-89
Power factor
0.9
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Width [mm]
14
Height/depth [mm]
7
Length [mm]
20000
Lowest bending radius [mm]
30
Luminaire efficacy [lm/W]
105100
Length of particular segments [mm]
1000
With end piece
Yes
With connection set
Yes
With protective cover
Yes
Self-adhesive
No
Type of wiring
Ending
Number of poles
2
Conductor cross section [mm²]
1
Connection type
Other
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Energy efficiency class of the light source according to EU regulation 2019/2015
No
Type of power supply
Mains power supply
Downloads
Manual
IM_RobustLedRope2S-01.pdf

Alternative articles
RoBust LED Rope HO 25M 9W/m 760lm/m 4000K IP65 on Reel

145829

RoBust LED Rope 50M 5W/m 380lm/m 4000K IP65

145374

Complementary articles

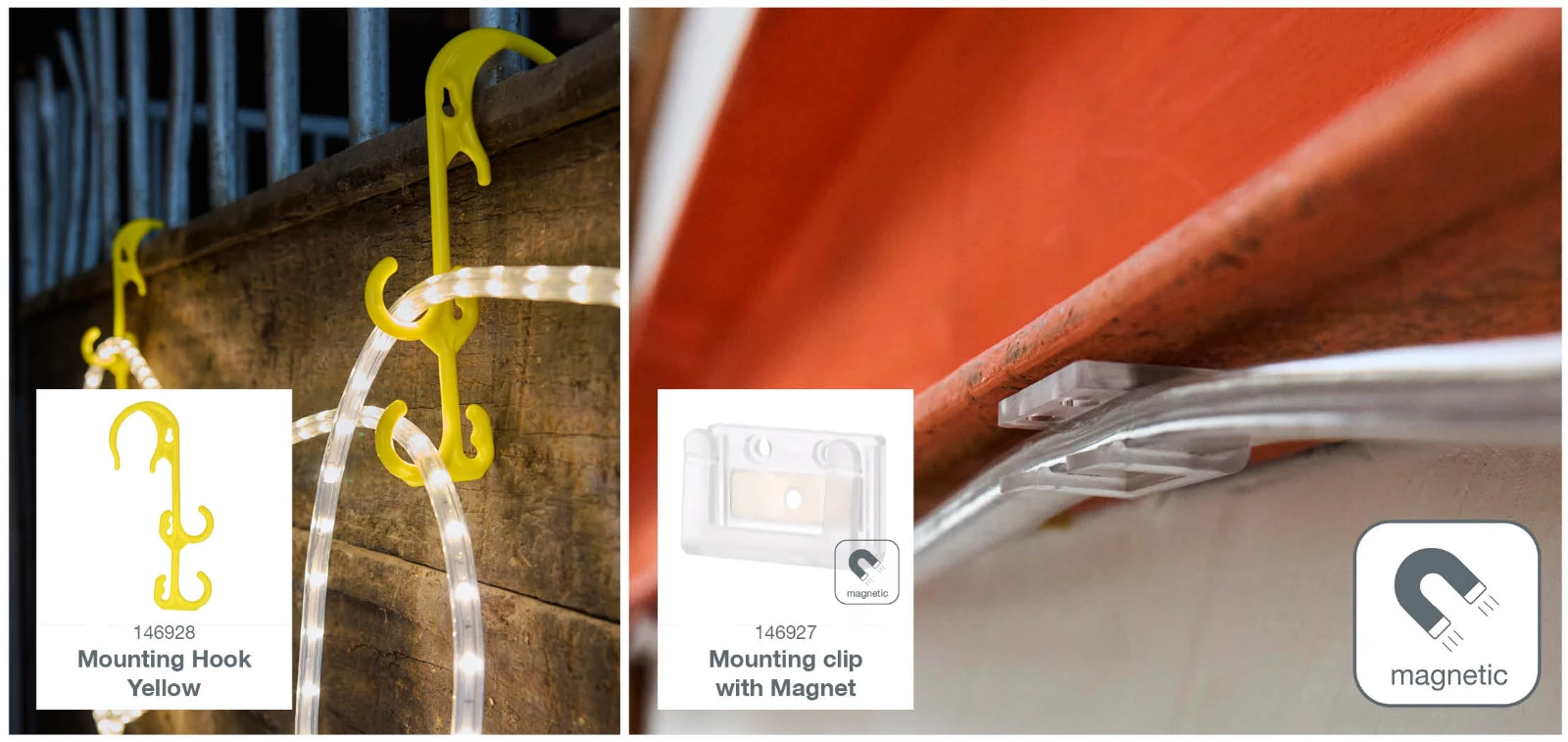

Mounting clip with Magnet for LED Rope
