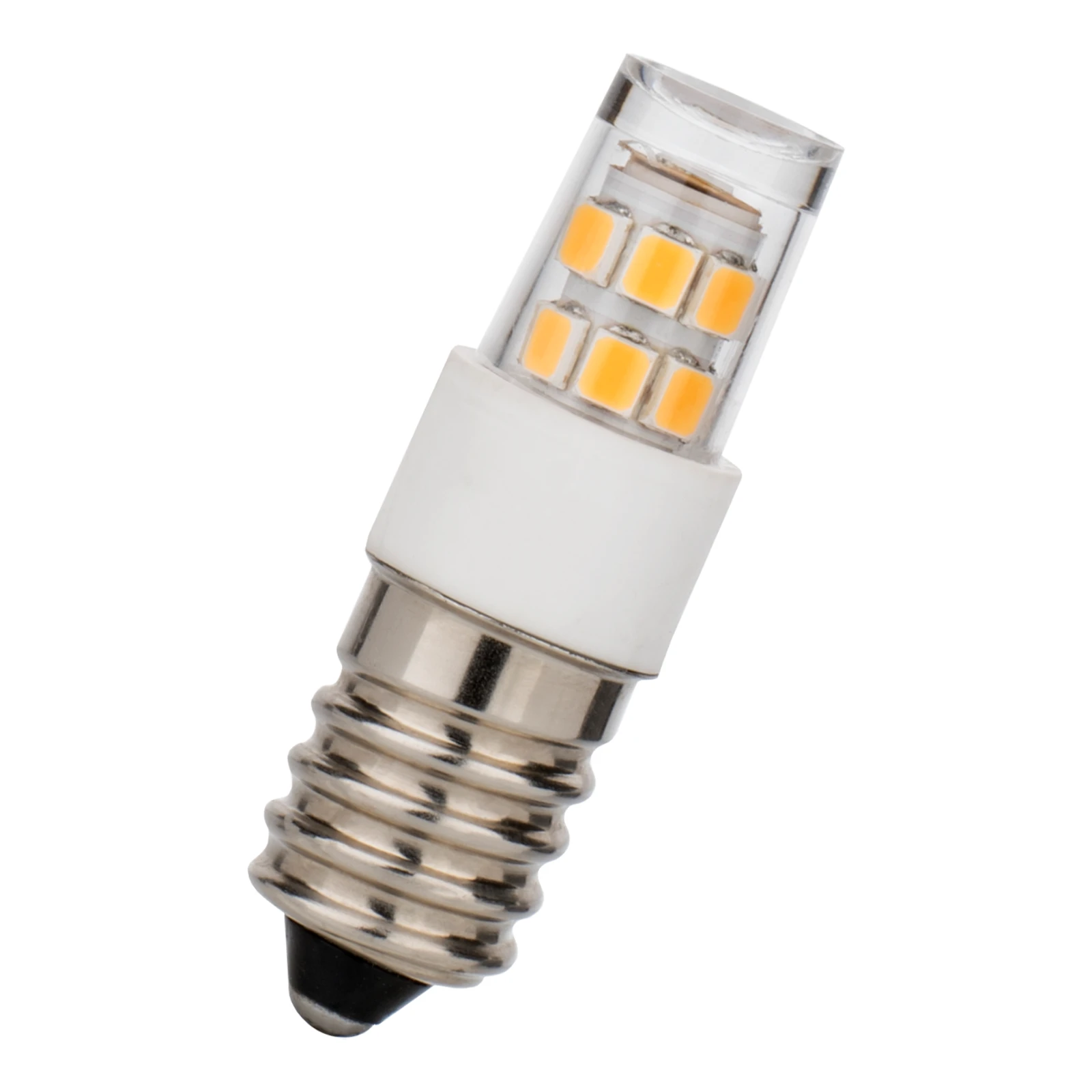

LED Special E14 T17X48 10V-30V AC/DC 2W (20W) 190lm 827
Article number: 146378
BAI LED Special E14 T17X48mm 10V-12V-24V-28V-30V AC/DC 2W 2700K 190lm (20W) LED-lamp
Compact and powerful LED indication & signaling tube lamps to replace the conventional miniature lamps. Ambient temperature: -20°C to +40°C.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED Special E14 T17X48 10V-30V AC/DC 2W (20W) 190lm 827
Brand
Bailey
Productseries
LED Special
Producttype
Tube E14
GTIN
8714681463789
Manufacturer articlenumber
146378
ETIM specifications
Socket
E14
Luminous flux [lm]
190 - 190
Nominal voltage [V]
10 - 30
Lamp power [W]
2 - 2
Colour temperature [K]
2700 - 2700
Diameter [mm]
17
Length [mm]
48
Dimmable
No
Lamp shape
Tube, single-ended
Beam angle [°]
270 - 270
Colour
White
Type of glass/cover
Clear
Lamp designation
Other
Colour rendering index CRI
80-89
Voltage type
AC/DC
Filament lamp
No
Rated luminous flux according to IEC 62612 [lm]
190
Power factor
0.8
Lamp efficacy [lm/W]
95
Nominal current [mA]
100 - 200
Colour of light according to EN 12464-1
Warm white < 3300 K
Housing colour
White
Average nominal lifetime [h]
25000
Degree of protection (IP)
IP20
Energy efficiency class
No
Colour consistency (McAdam ellipse)
SDCM6
Min. number of switching cycles
25000
Weighted energy consumption in 1000 hours [kWh]
2
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
Yes
Energy efficiency class according to EU regulation 2019/2015
No
With twilight switch
No
Material of light bulb
Plastic
