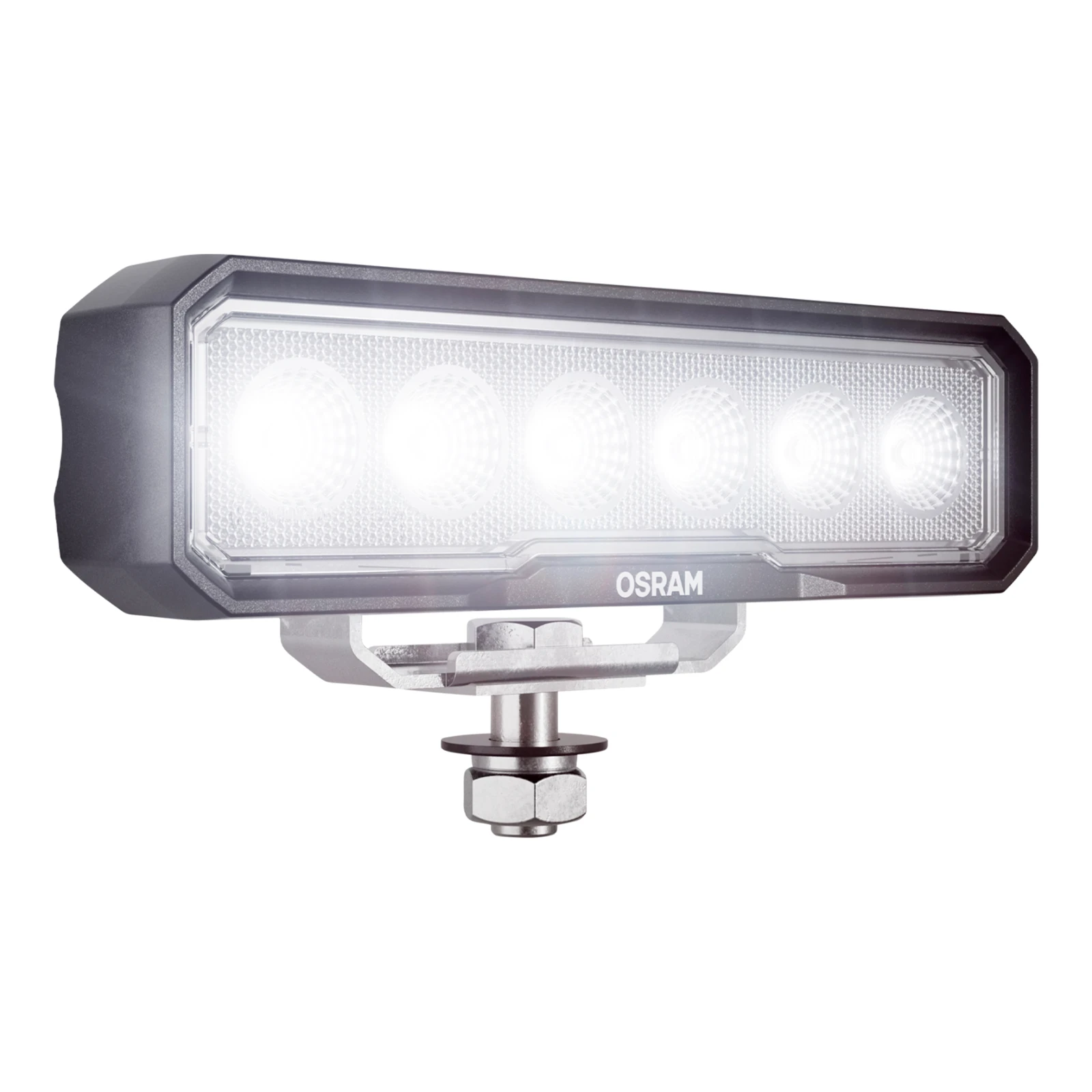

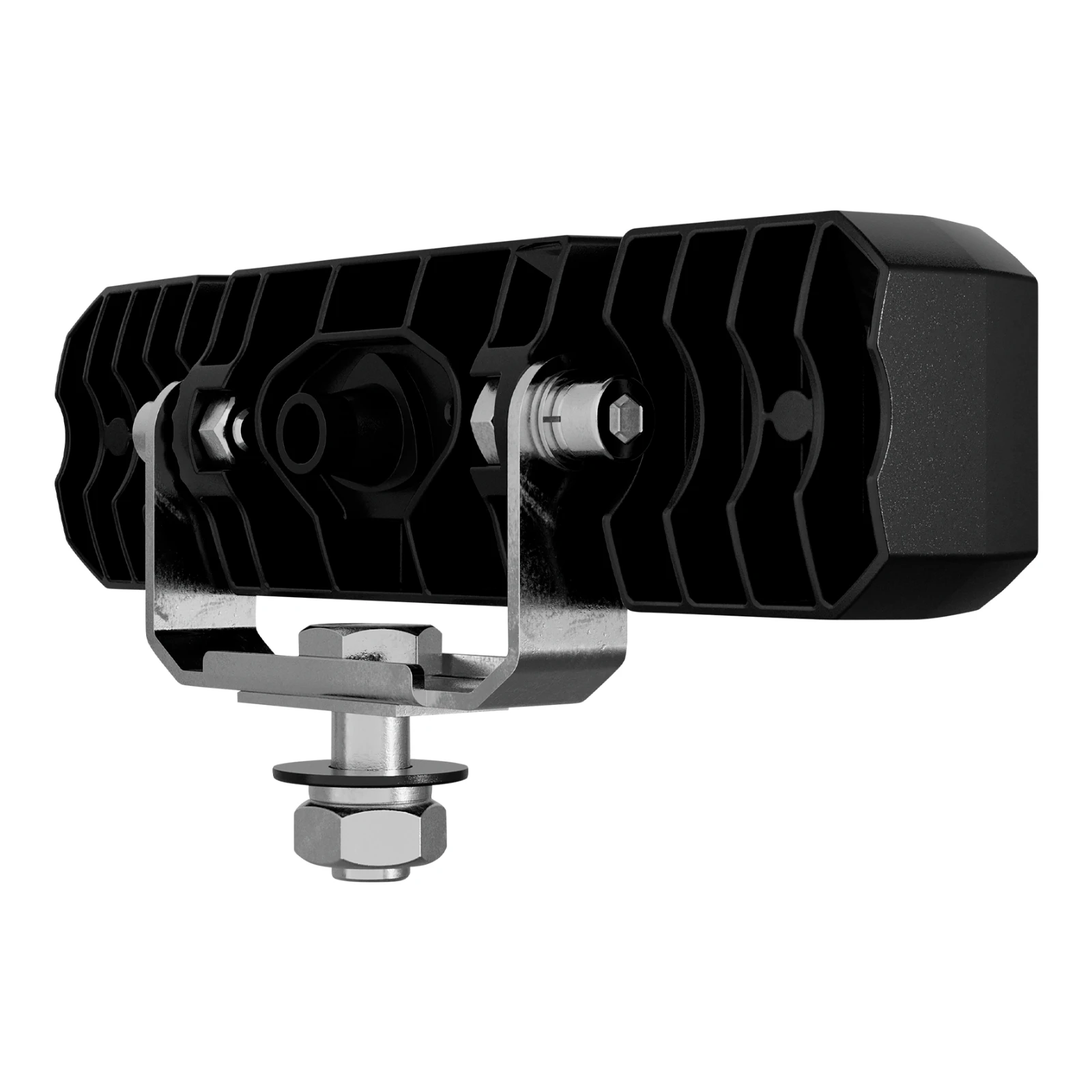

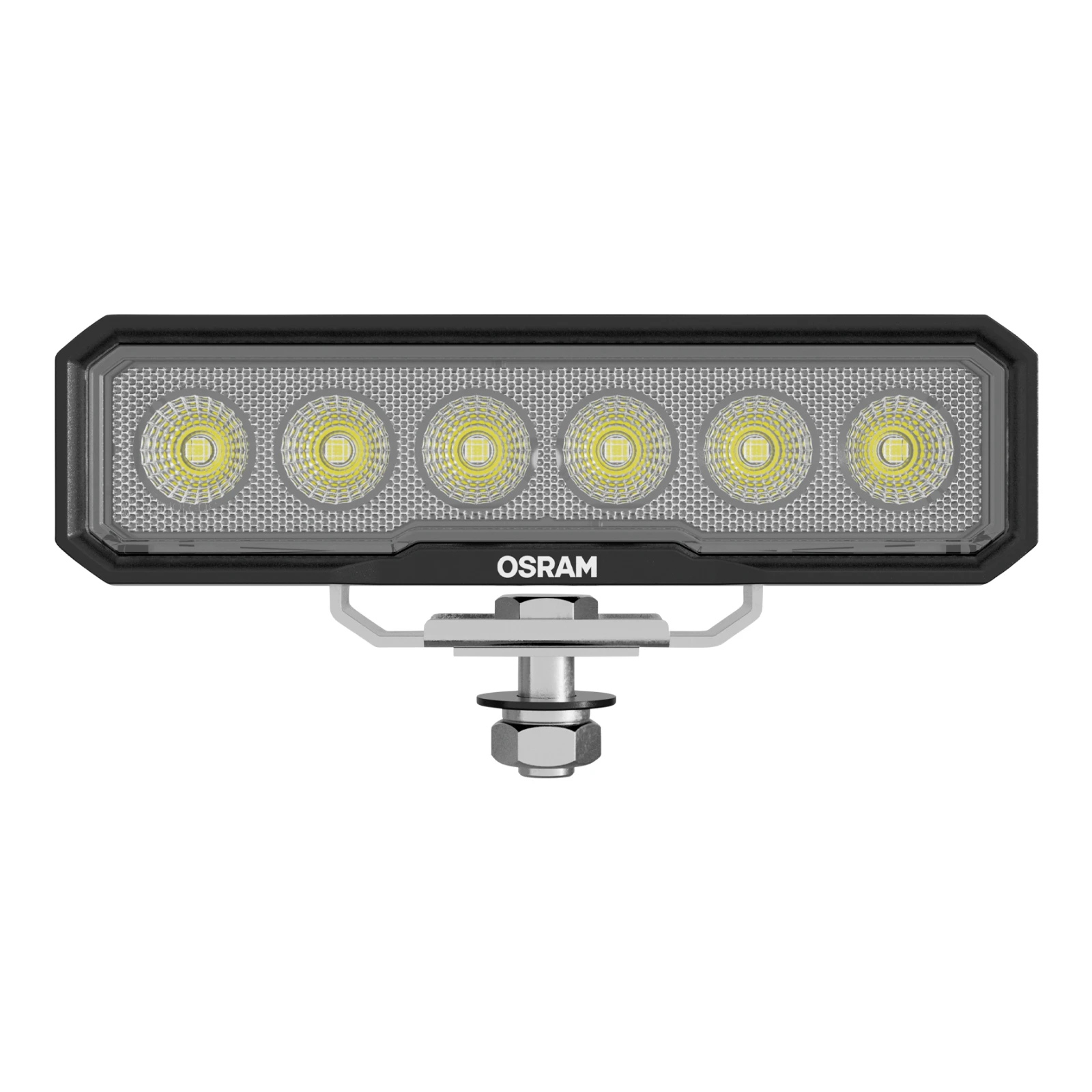

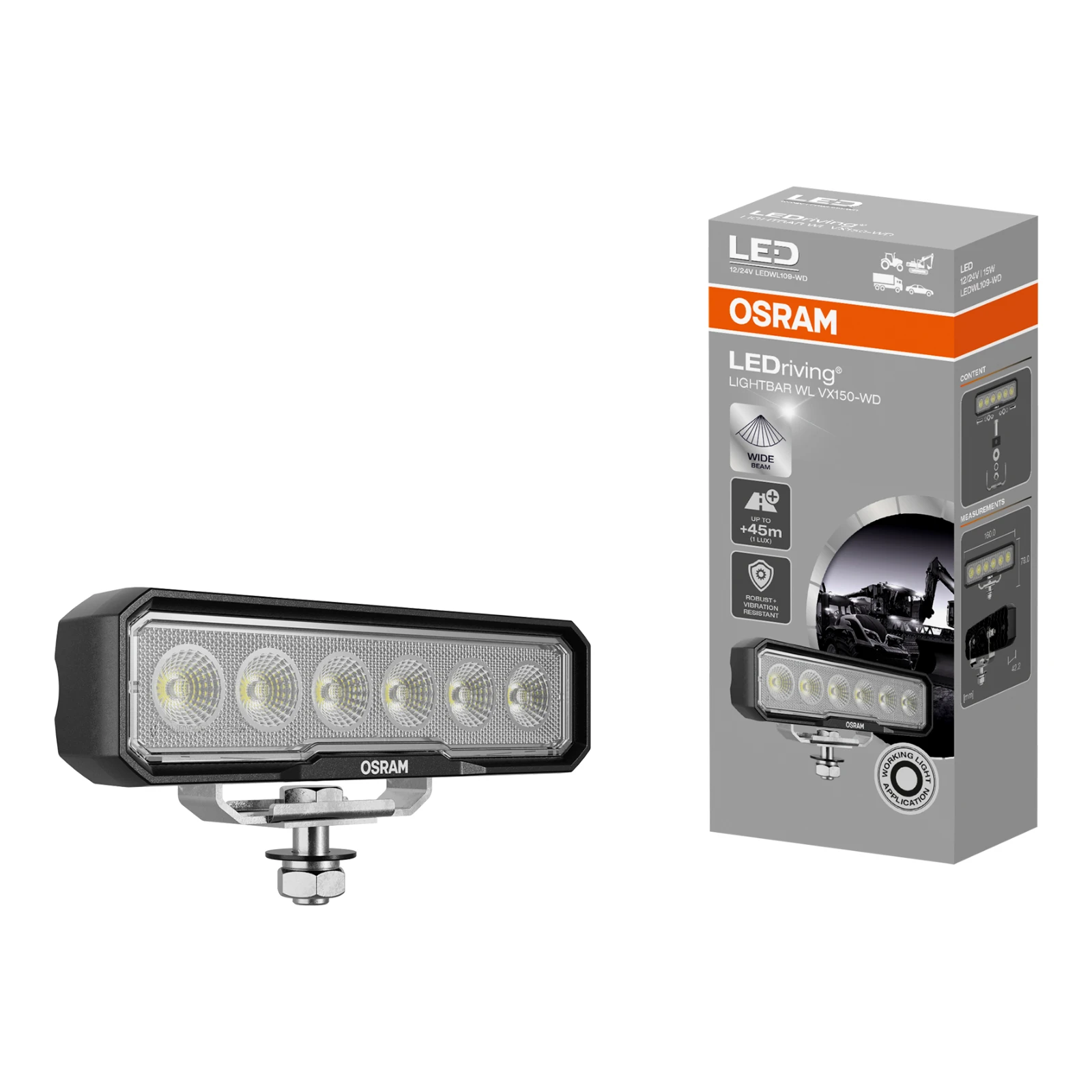

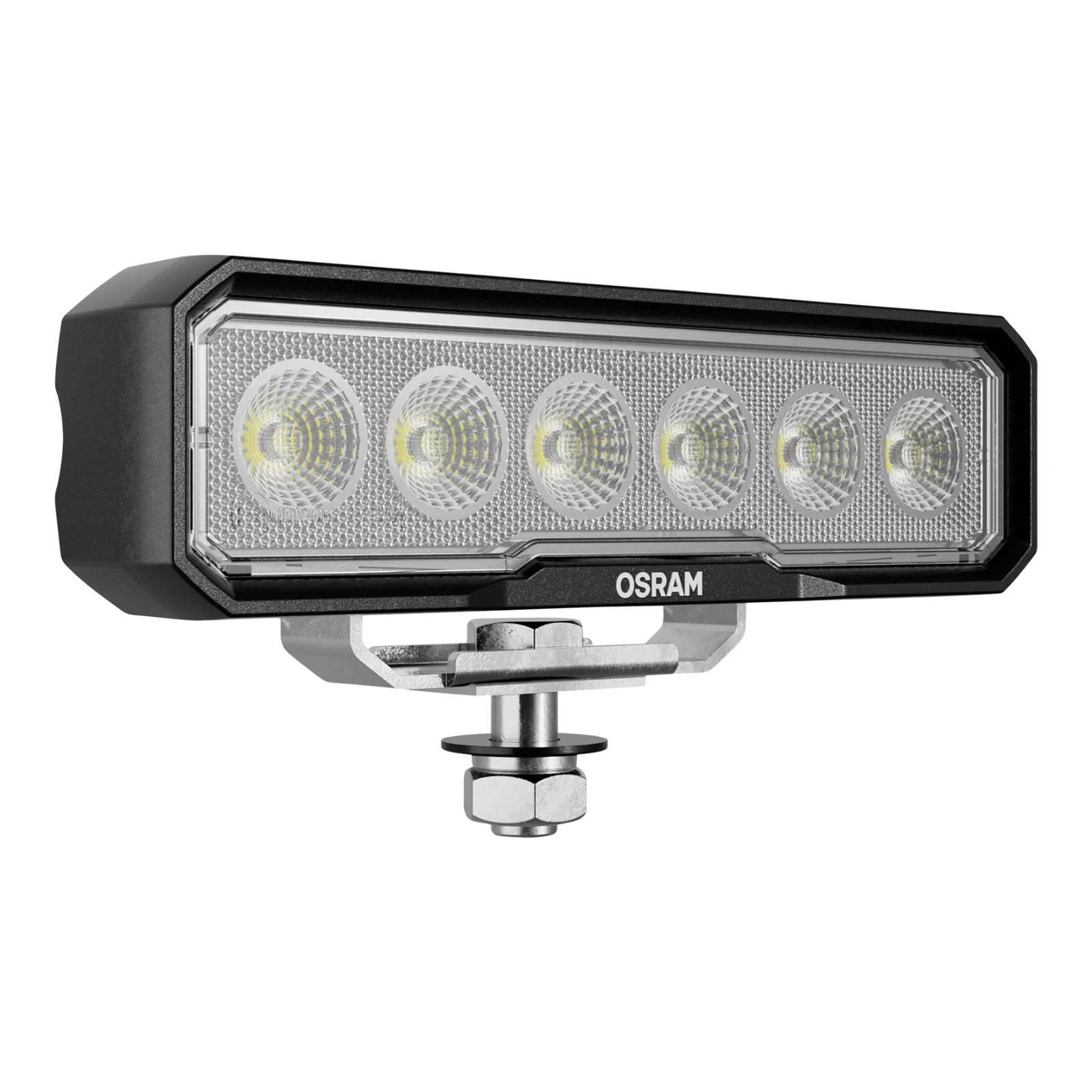

LEDriving LIGHTBAR WL VX150-WD 12V 15W

Article number: 146125

OSR LEDriving LIGHTBAR WL VX150-WD 12V 15W 6000K 1500lm 79x42.2x160mm IP6K8/IP6K9K E9 approval ECE R10

With the OSRAM LEDriving Lightbar WL VX150-WD, you achieve impressive illumination on dark field and forest paths, off-road and off the beaten tracks. The working light combines affordability with exceptional performance, quality and functionality, providing users with impressive visibility at workplaces beyond roads and off-road areas. Designed to meet diverse tasks, the working light impress with a luminous flux of up to 1500lm and a wide beam pattern with wide light distribution, significantly enhancing safety at work for you and others. Additional working lights without ECE approval for use as work lights are approved for use on any vehicle according to German Road Traffic Licensing Regulations (StVZO) §52. However, they must not be used and switched on while driving. In addition, individual special regulations, and laws of countries outside Germany must be observed. For precise conditions refer to: www.osram.com/am-guarantee

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

General ETIM properties

ETIM group
Luminaires
ETIM class
Downlight/spot/floodlight
Name
LEDriving LIGHTBAR WL VX150-WD 12V 15W
Brand
OSRAM
Productseries
LEDriving Value
Producttype
Lightbar WL VX150-WD
GTIN
4062172355209
Manufacturer articlenumber
4062172355209

ETIM specifications

Luminous flux [lm]
1500 - 1500
Max. system power [W]
15
Colour temperature [K]
6000 - 6000
Nominal voltage [V]
12 - 12
With movement sensor
No
Lamp holder
None
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for wall mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Adjustability
Rotatable
With light sensor
No
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Housing material
Aluminium
Surface protection
Other
Housing colour
Black
Material cover
Plastic, transparent
Surface brushed
No
Voltage type
DC
Type of control gear
LED operating device current-controlled
With control gear
Yes
Exchangeable control gear
No
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Reflector
None
Light distributor
None
Light distribution
Symmetric
Beam angle
5-10° - Extreme narrow beam
Light outlet
Direct
Colour rendering index CRI
80-89
Energy efficiency class
Other
Energy efficiency class of the built-in lamp
Other
Rated lifetime L70/B50 at 25 °C [h]
5000
Degree of protection (IP)
IP68
Degree of protection (NEMA)
Other
Protection class according to IEC 61140
None
Rated ambient temperature according to IEC 62722-2-1 [°C]
-30 - 60
Suitable for lamp power [W]
15 - 15
Colour of light
White
Emergency power supply system
None
Constant light output (CLO)
No
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Width [mm]
42.2
Height/depth [mm]
160
Length [mm]
79
Type of wiring
Ending
Connection type
Other
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
None
Luminaire efficacy [lm/W]
100
Photobiological safety according to EN 62471
RG1
Dimmable
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Number of poles
2
Suitable for workplace according to EN 12464-1
No
Compatible with Apple HomeKit
No
Colour consistency (McAdam ellipse)
SDCM6
Dimming Sine Wave Reduction
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
With presence detector
No
IFTTT support available
No
Containing product according to 2019/2020/EU
No
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP68
Operation by Bluetooth
No
Rated luminous flux according to IEC 62722-2- 1 [lm]
1500 - 1500
Luminaire efficacy [lm/W]
100 - 100
Compatible with Casambi
No
UK Building Regs Part B fire rated - 30 minutes
No
UK Building Regs Part B fire rated - 60 minutes
No
UK Building Regs Part B fire rated - 90 minutes
No
Downloads
Datasheet
Datasheet_146125.pdf
