LED HID PAR16 GX10 DIM 7.5W (20W) 800lm 830 40° AC 230V

Article number: 145947

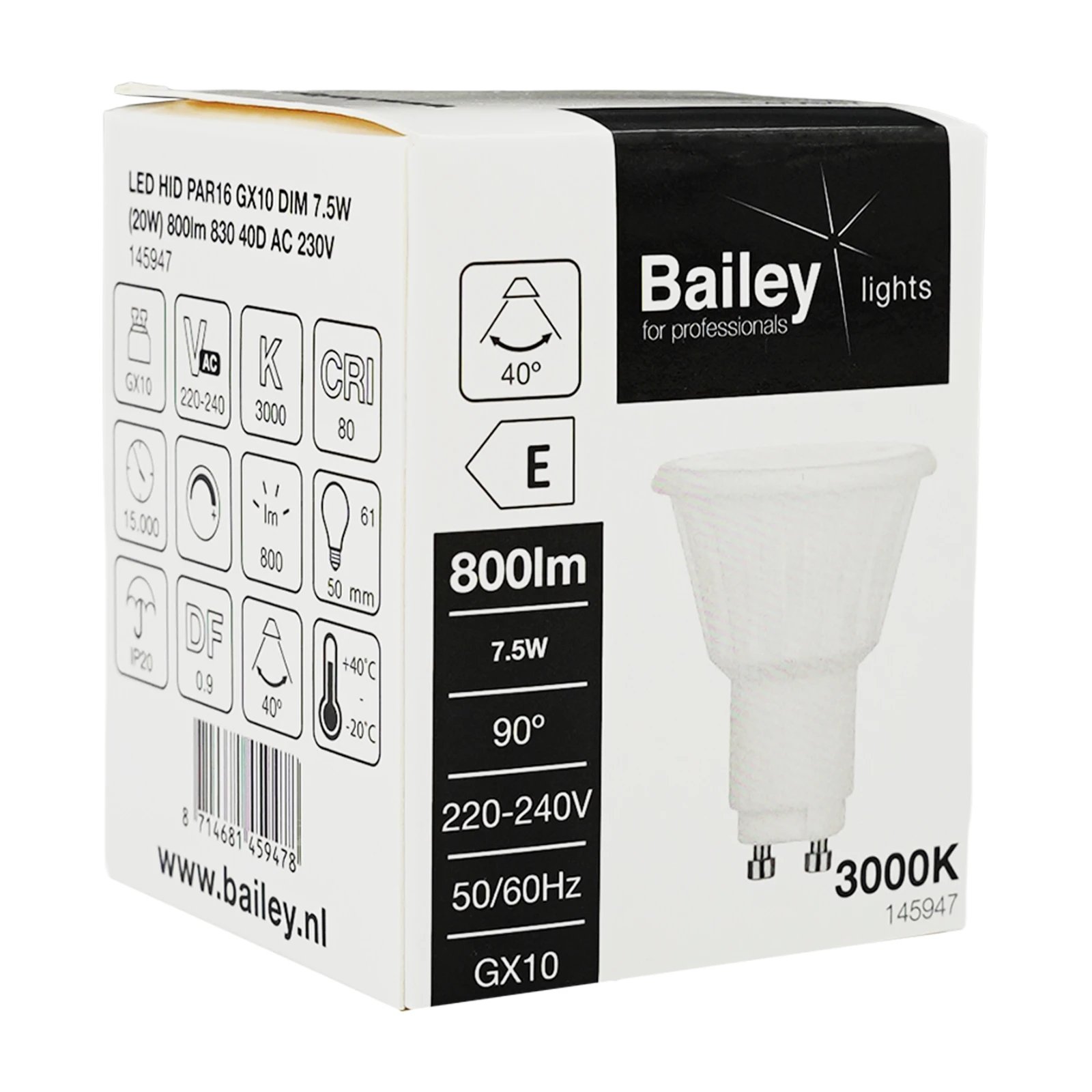

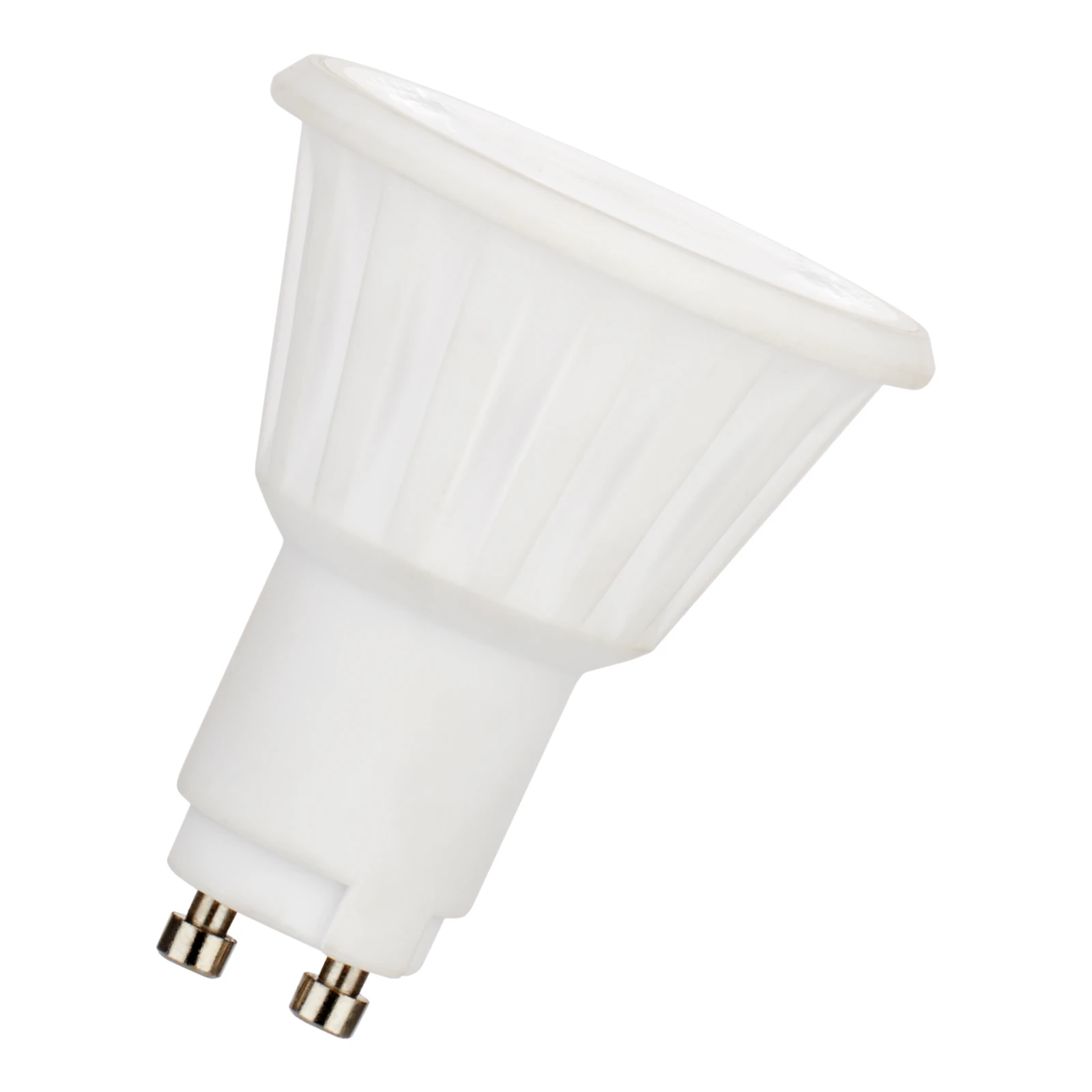

BAI LED HID PAR16 GX10 DIM 7.5W (20W) 800lm 3000K 40° AC 230V 50x61mm Alt. CMH CDM-rm BriteSpot LED lamp LED lamp

This LED replacement for gas discharge lamps with GX10 lamp base is only suitable for a direct installation on 230V, so you must remove the ballast, capacitor and igniter. Often used as accent or general lighting in shops, shop windows and museums. Only suitable for temperatures up to 40°C inside the fixture. The LED light source can quickly malfunction due to overheating. Therefore not suitable for use in tight fixtures or fixtures where the reflector is close to the LED. Recommended to remove glass or cover from the fixture.

Please read the manual before use.

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

Click here for Eprel specifications

General ETIM properties

ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED HID PAR16 GX10 DIM 7.5W (20W) 800lm 830 40° AC 230V
Brand
Bailey
Productseries
LED HID
Producttype
PAR16 GX10
GTIN
8714681459478
Manufacturer articlenumber
145947

ETIM specifications

Socket
Other
Luminous flux [lm]
800 - 800
Nominal voltage [V]
220 - 240
Lamp power [W]
7.5 - 7.5
Colour temperature [K]
3000 - 3000
Diameter [mm]
50
Length [mm]
61
Dimmable
Yes
Lamp shape
Reflector
Beam angle [°]
40 - 40
Colour
White
Type of glass/cover
Prism
Lamp designation
PAR16
Colour rendering index CRI
80-89
Voltage type
AC
Filament lamp
No
Luminous intensity [cd]
900
Rated luminous flux according to IEC 62612 [lm]
800
Power factor
0.9
Lamp efficacy [lm/W]
106
Nominal current [mA]
50 - 50
Colour of light according to EN 12464-1
Warm white < 3300 K
Housing colour
White
Average nominal lifetime [h]
15000
Degree of protection (IP)
IP20
Energy efficiency class
E
Colour consistency (McAdam ellipse)
SDCM6
Min. number of switching cycles
25000
Weighted energy consumption in 1000 hours [kWh]
8
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG1
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
Yes
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
No
Energy efficiency class according to EU regulation 2019/2015
E
With twilight switch
No
Downloads
Manual
IM_LEDGX10-01.pdf
