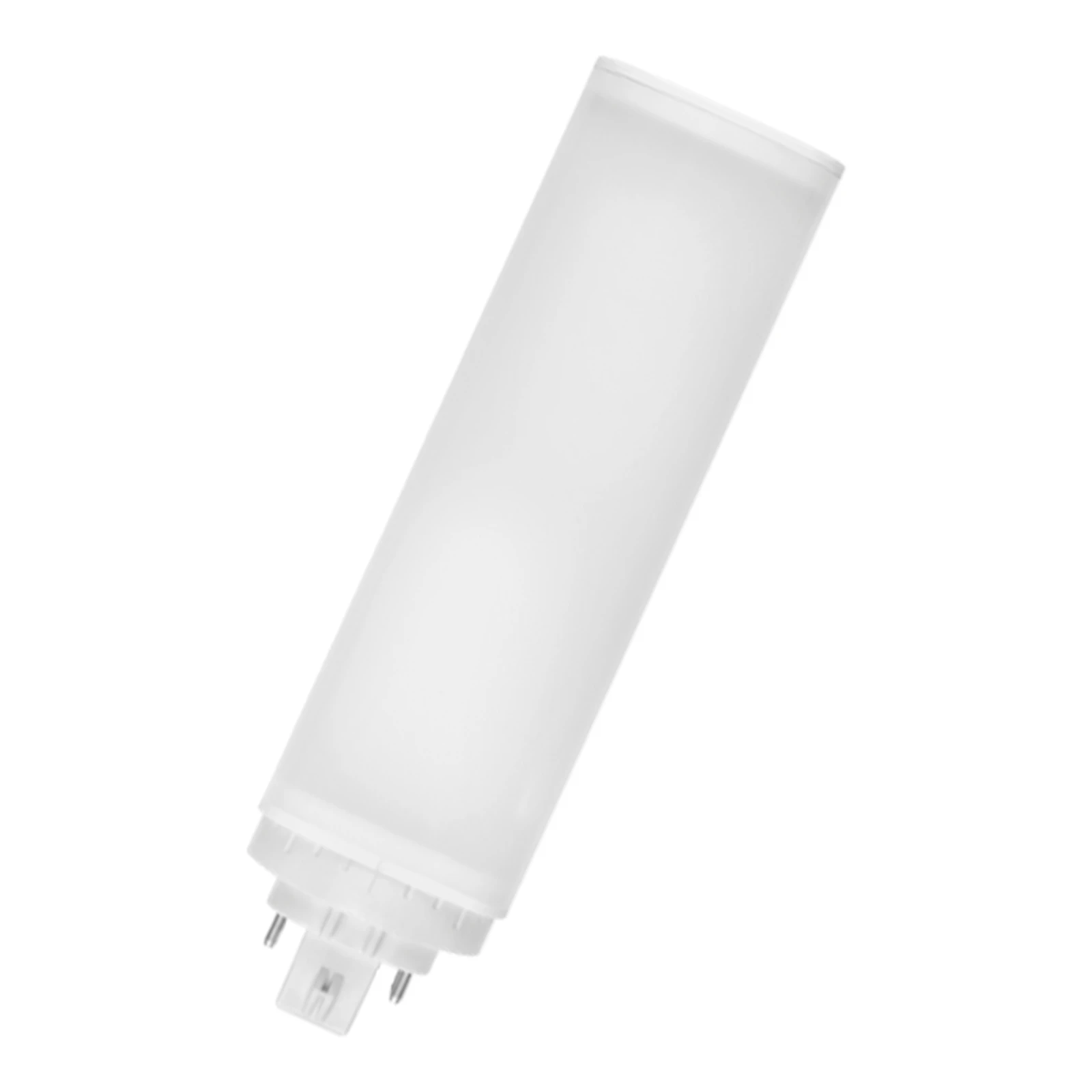

LED PL TC-TEL GX24q-3 4P 16W (32W) 1800lm 840 ECG+AC
Article number: 145931
RAD LED PL TC-TEL GX24q-3 4-pins 16W (32W) 1800lm 4000K AC 220V-240V + ECG 130° 45x155mm. Check ballast list before ECG installation.
The LED PL GX24q AC (4-pin) TC-TEL lamps are LED replacements for the commonly used compact fluorescent lamps. PL stands for PubLic as these lamps are mainly used in wall and ceiling luminaires in public areas, offices, shops and restaurants. Always read the manual carefully before installation. Only suitable for temperatures up to 50°C in the fixture.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED PL TC-TEL GX24q-3 4P 16W (32W) 1800lm 840 ECG+AC
Brand
Radium
Productseries
LED EssenceTrio/E
Producttype
GX24q 4P ECG+AC
GTIN
4008597197741
Manufacturer articlenumber
43519774
ETIM specifications
Socket
GX24q-3
Luminous flux [lm]
1800 - 1800
Nominal voltage [V]
220 - 240
Lamp power [W]
16 - 16
Colour temperature [K]
4000 - 4000
Diameter [mm]
45
Length [mm]
155
Dimmable
No
Lamp shape
Tube, single-ended
Beam angle [°]
130 - 130
Colour
White
Type of glass/cover
Frosted
Lamp designation
Other
Colour rendering index CRI
80-89
Voltage type
AC
Filament lamp
No
Rated luminous flux according to IEC 62612 [lm]
1800
Power factor
0.9
Lamp efficacy [lm/W]
112
Nominal current [mA]
68 - 68
Colour of light according to EN 12464-1
Neutral white 3300-5300 K
Housing colour
White
Average nominal lifetime [h]
30000
Degree of protection (IP)
IP20
Energy efficiency class
E
Colour consistency (McAdam ellipse)
SDCM6
Min. number of switching cycles
200000
Weighted energy consumption in 1000 hours [kWh]
16
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
Yes
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
Yes
Energy efficiency class according to EU regulation 2019/2015
E
With twilight switch
No
Material of light bulb
Plastic
Datasheet
Ballast compatibility
