LED Ecoplus T8 HO 1500 G13 22W (58W) 3520lm 840 EM+AC

Article number: 145884

BAI Ecoplus T8 HO LED Tube 26x1500mm G13 22W (58W) 4000K 3520lm Glass EM Retrofit + AC 230V-240V 280° Temp. -20°C +25°C LED-lamp Alt T26 TLD Lumilux

LED T8 tube with a G13 fitting, ideal to replace standard T8 fluorescent tubes. This Ecoplus version has a high lumen output (HO). Installation: Disconnecting magnetic ballast is optional, not necessary. Not suitable for series connection. Replace the fluorescent starter with the LED starter (supplied). Ambient temperature range: -20°C to +25°C.

Please read the manual before use.

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

Click here for Eprel specifications

General ETIM properties

ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED Ecoplus T8 HO 1500 G13 22W (58W) 3520lm 840 EM+AC
Brand
Bailey
Productseries
Ecoplus LED tube
Producttype
T8 HO
GTIN
8714681458846
Manufacturer articlenumber
145884

ETIM specifications

Socket
G13
Luminous flux [lm]
3520 - 3520
Nominal voltage [V]
220 - 240
Lamp power [W]
22 - 22
Colour temperature [K]
4000 - 4000
Diameter [mm]
26
Length [mm]
1500
Dimmable
No
Lamp shape
Tube, double-ended
Beam angle [°]
280 - 280
Colour
White
Type of glass/cover
Opal
Lamp designation
T8
Colour rendering index CRI
80-89
Voltage type
AC
Filament lamp
No
Rated luminous flux according to IEC 62612 [lm]
3520
Power factor
0.9
Lamp efficacy [lm/W]
160
Nominal current [mA]
110 - 110
Colour of light according to EN 12464-1
Neutral white 3300-5300 K
Housing colour
White
Average nominal lifetime [h]
25000
Degree of protection (IP)
IP20

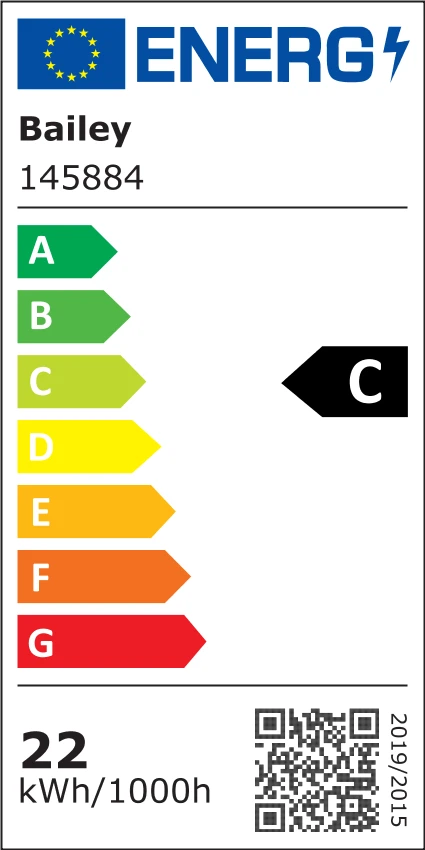

Energy efficiency class
C
Colour consistency (McAdam ellipse)
SDCM5
Min. number of switching cycles
12500
Weighted energy consumption in 1000 hours [kWh]
22
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG1
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
Yes
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
Yes
Energy efficiency class according to EU regulation 2019/2015
C
With twilight switch
No
Material of light bulb
Glass
Downloads
Manual
IM_LEDT8EHOEMAC-01.pdf
Cross-reference list
Bailey_Cross_Reference_LED_T8_Tubes.pdf
