General ETIM properties

ETIM group
Luminaires
ETIM class
Light ribbon/-hose/-strip
Name

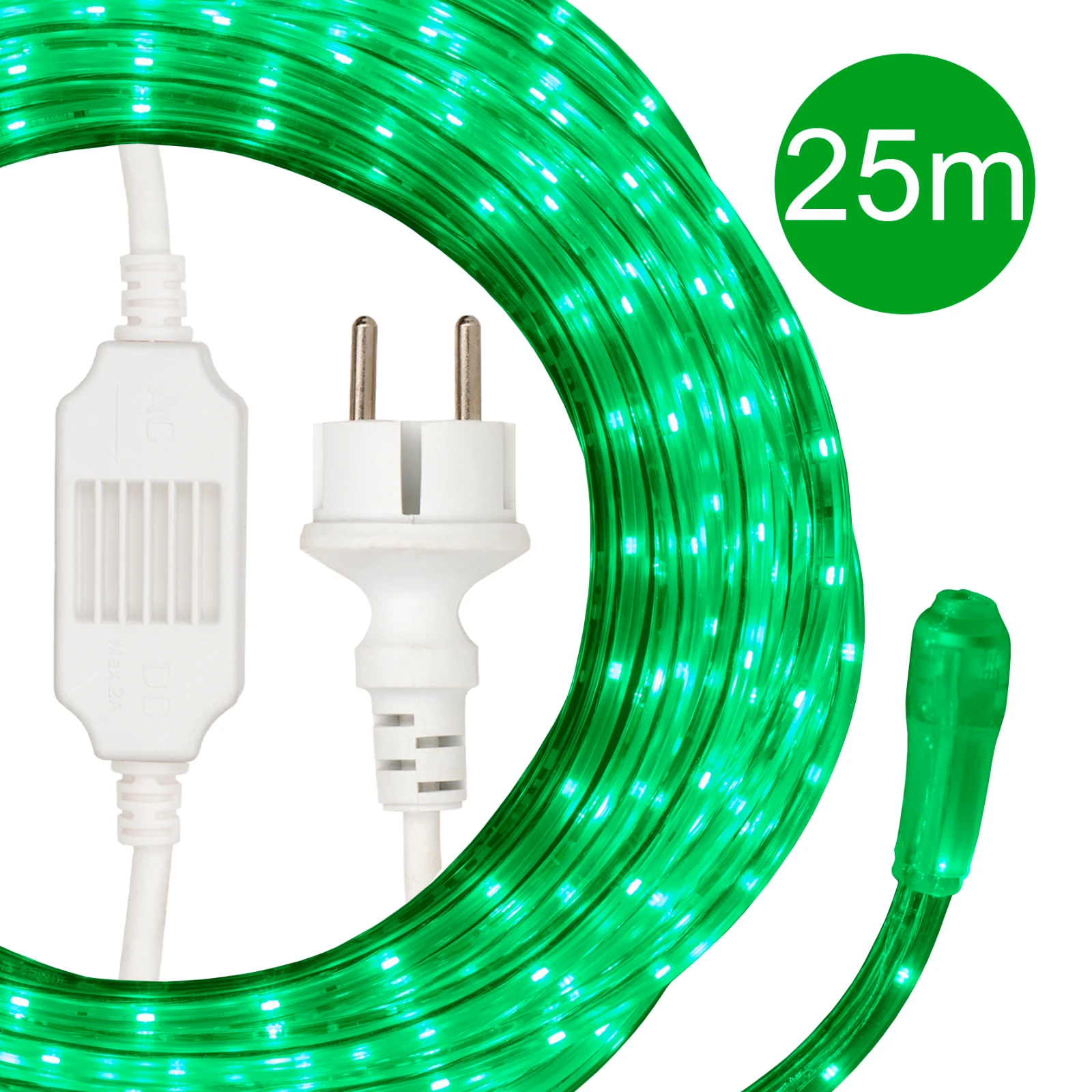

RoBust LED Rope 25M 5W/m 170lm/m Green IP65
Brand
Bailey
Productseries
Robust LED rope
Producttype
5W/m Green
GTIN
8714681457870
Manufacturer articlenumber
145787

ETIM specifications

Total length [m]
25
Luminous flux per meter [lm]
170
Colour of light
Green
Lamp voltage [V]
220 - 240
Degree of protection (IP)
IP65
Model
Hose
Mounting method
Other
Lamp type
LED not exchangeable
Number of nodes per meter
60
Lamp power per meter [W]
5
Voltage type
DC
Beam angle [°]
120
Type of control gear
LED operating device voltage-controlled
Suitable for dimmer
No
Exchangeable control gear
No
Energy efficiency class of the built-in lamp
Other
Rated lifetime L70/B50 at 25 °C [h]
10000
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) [%]
99
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) [%]
0
Protection class according to IEC 61140
II
Max. system power [W]
450
Constant light output (CLO)
Yes
Power factor
0.9
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Width [mm]
12
Height/depth [mm]
6
Length [mm]
25000
Lowest bending radius [mm]
30
Luminaire efficacy [lm/W]
34
Length of particular segments [mm]
1000
With end piece
Yes
With connection set
No
With protective cover
Yes
Self-adhesive
No
Type of wiring
Ending
Number of poles
2
Conductor cross section [mm²]
1
Connection type
Other
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Type of power supply
Mains power supply
