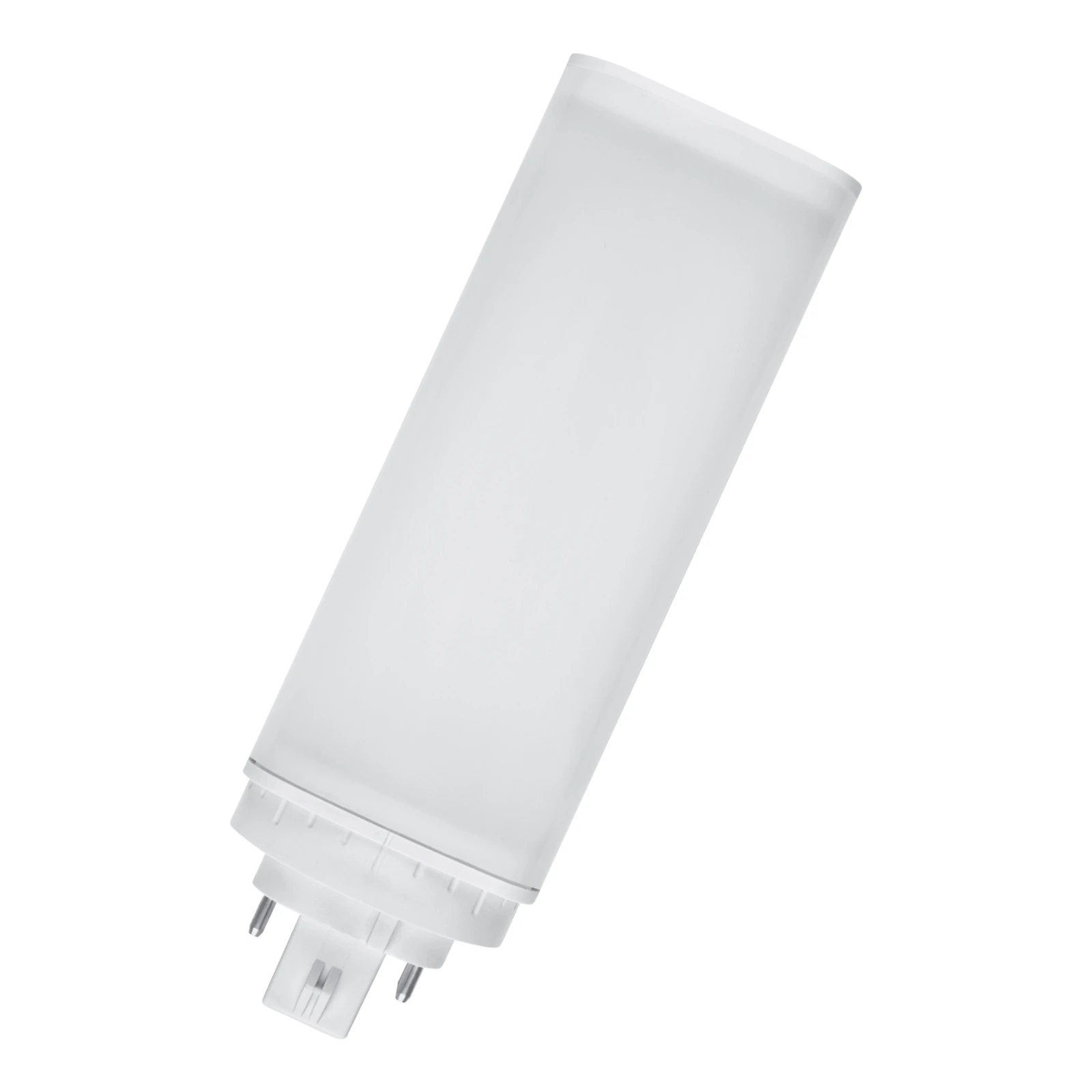

OSRAM DULUX® T/E LED GX24q-3 HF & AC 10W 840
Article number: 145778
OSR DULUX® T/E LED GX24q-3 ECG & AC 230V-240V 10W (26W) 1100lm 4000K 130° 45x145mm LED-lamp
OSRAM DULUX® T/E LED HF & AC MAINS LED replacement for CFLni with 4-pin GX24q base for ECG and AC mains operation.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
OSRAM DULUX® T/E LED GX24q-3 HF & AC 10W 840
Brand
OSRAM
Productseries
OSRAM DULUX® T/E LED HF & AC
Producttype
DULUX T/E HF & AC Mains 10W 4K
GTIN
4058075559417
Manufacturer articlenumber
4058075559417
ETIM specifications
Socket
GX24q-3
Luminous flux [lm]
1100 - 1100
Nominal voltage [V]
220 - 220
Lamp power [W]
10 - 10
Colour temperature [K]
4000 - 4000
Diameter [mm]
45
Length [mm]
140
Dimmable
No
Lamp shape
Tube, single-ended
Beam angle [°]
130 - 130
Colour
White
Type of glass/cover
Frosted
Lamp designation
Other
Colour rendering index CRI
80-89
Voltage type
AC
Filament lamp
No
Rated luminous flux according to IEC 62612 [lm]
1100
Power factor
0.9
Lamp efficacy [lm/W]
110
Nominal current [mA]
44 - 44
Colour of light according to EN 12464-1
Neutral white 3300-5300 K
Housing colour
White
Average nominal lifetime [h]
30000
Degree of protection (IP)
IP20
Energy Efficiency Index (EEI)
0.12
Energy efficiency class
E
Colour consistency (McAdam ellipse)
SDCM6
Min. number of switching cycles
200000
Total harmonic distortion
30
Weighted energy consumption in 1000 hours [kWh]
10
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
Yes
With twilight switch
No
