RoBust LED Rope 5M 5W/m 380lm/m 4000K IP65

Article number: 145637

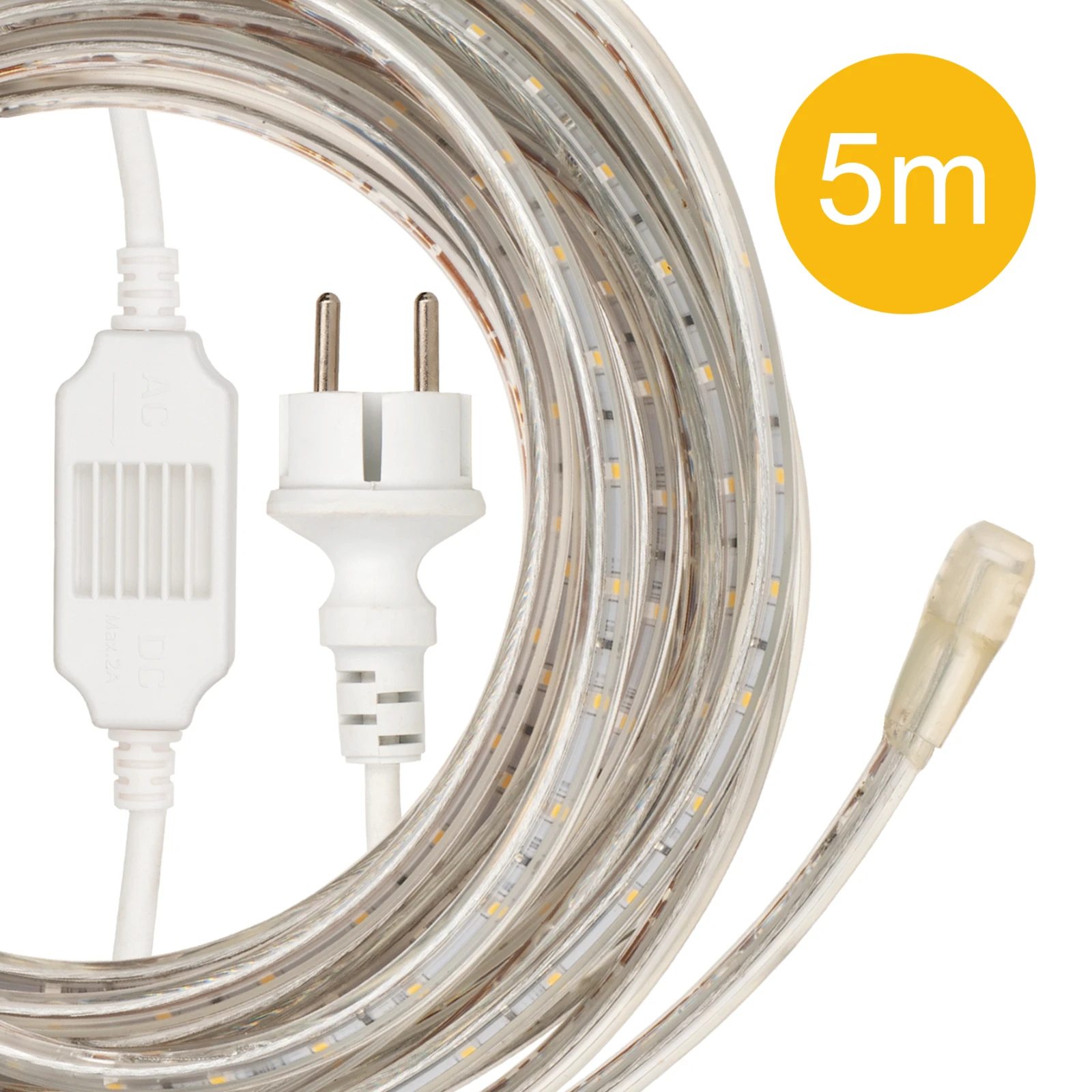

BAI RoBust LED Rope 5 Meter 5W/m 380lm/m 4000K 120° IP65 IK10 12x6mm + Power Cable 1.5 meter with built-in AC/DC adapter and glue & endcap Max. 20x interconnectable (100M)

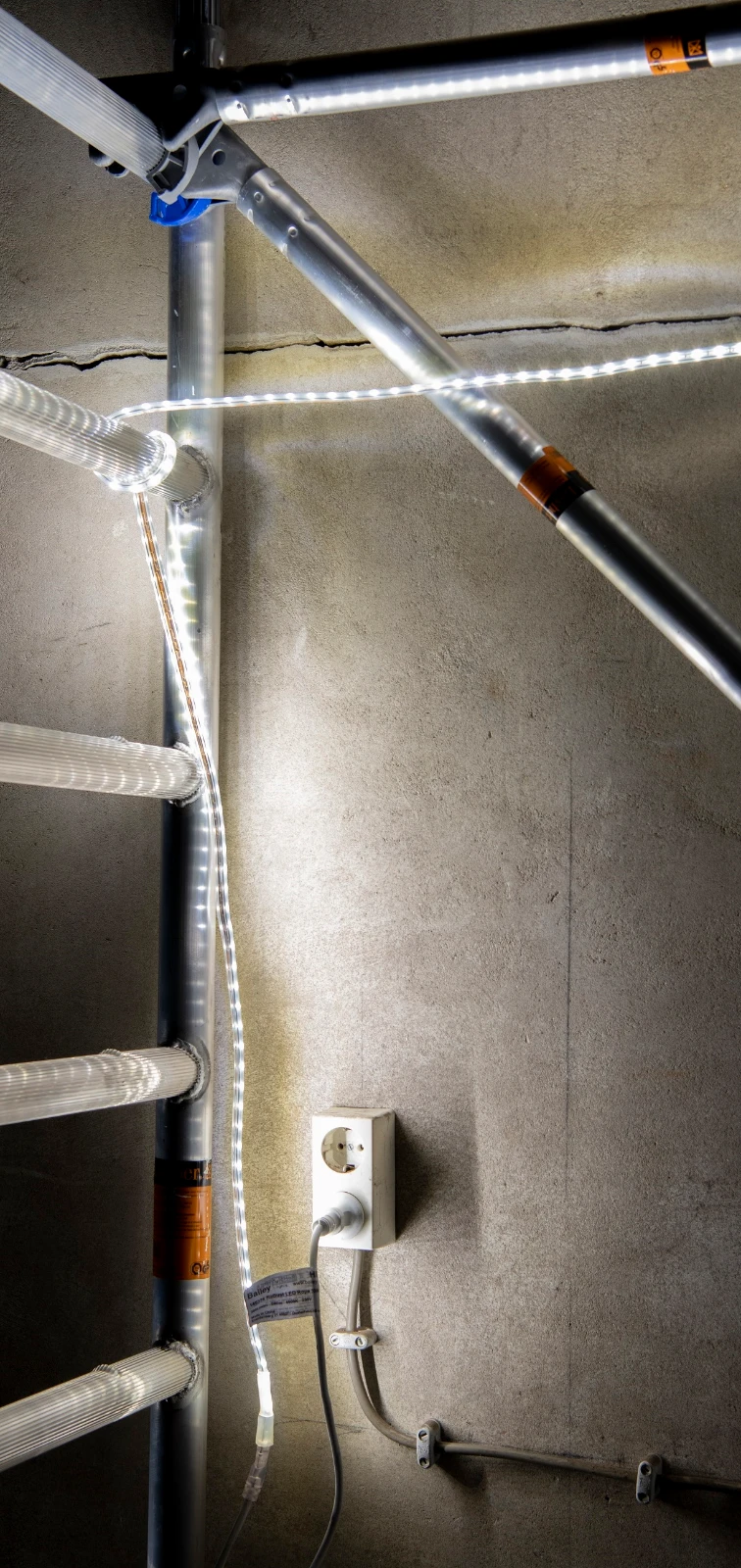

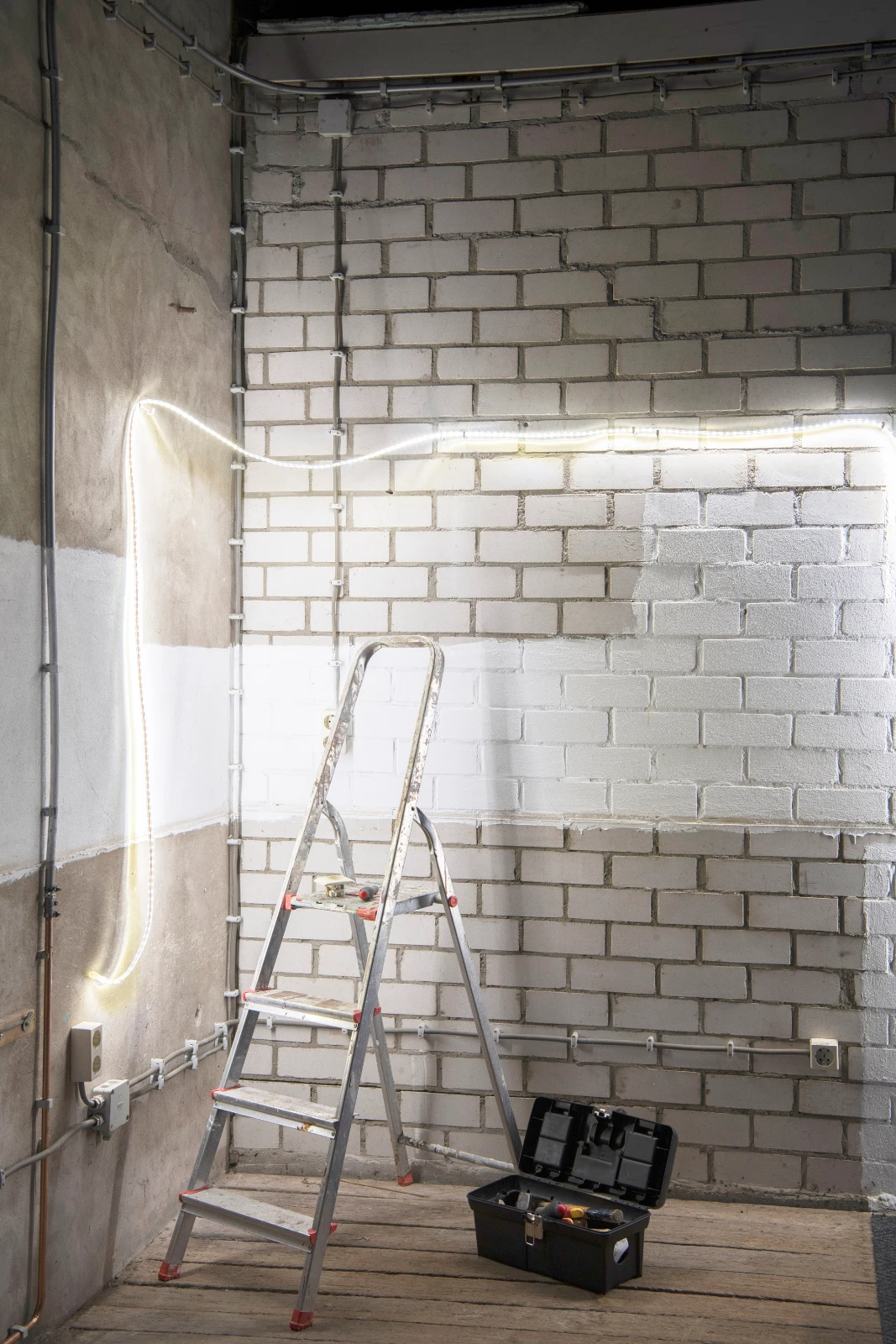

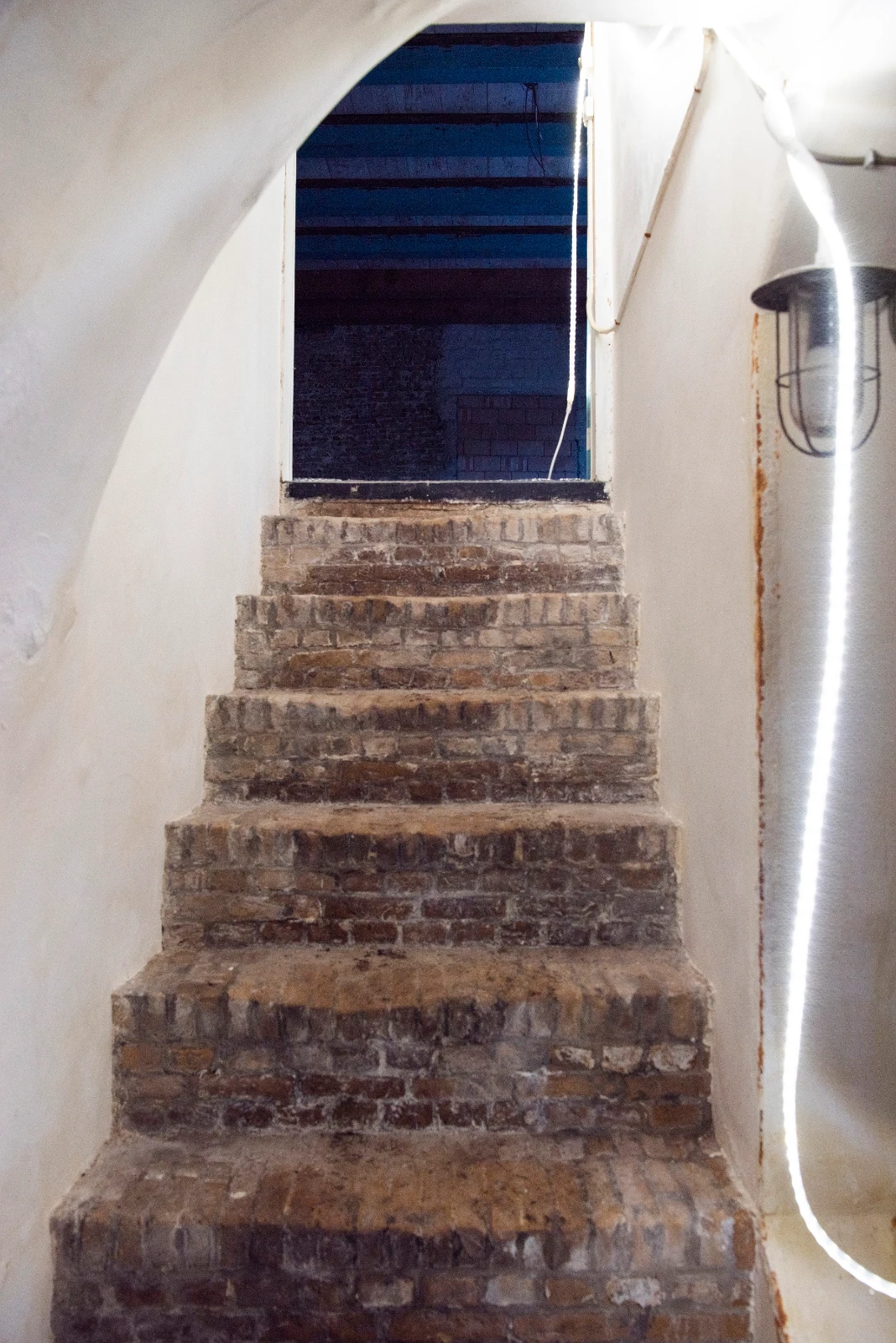

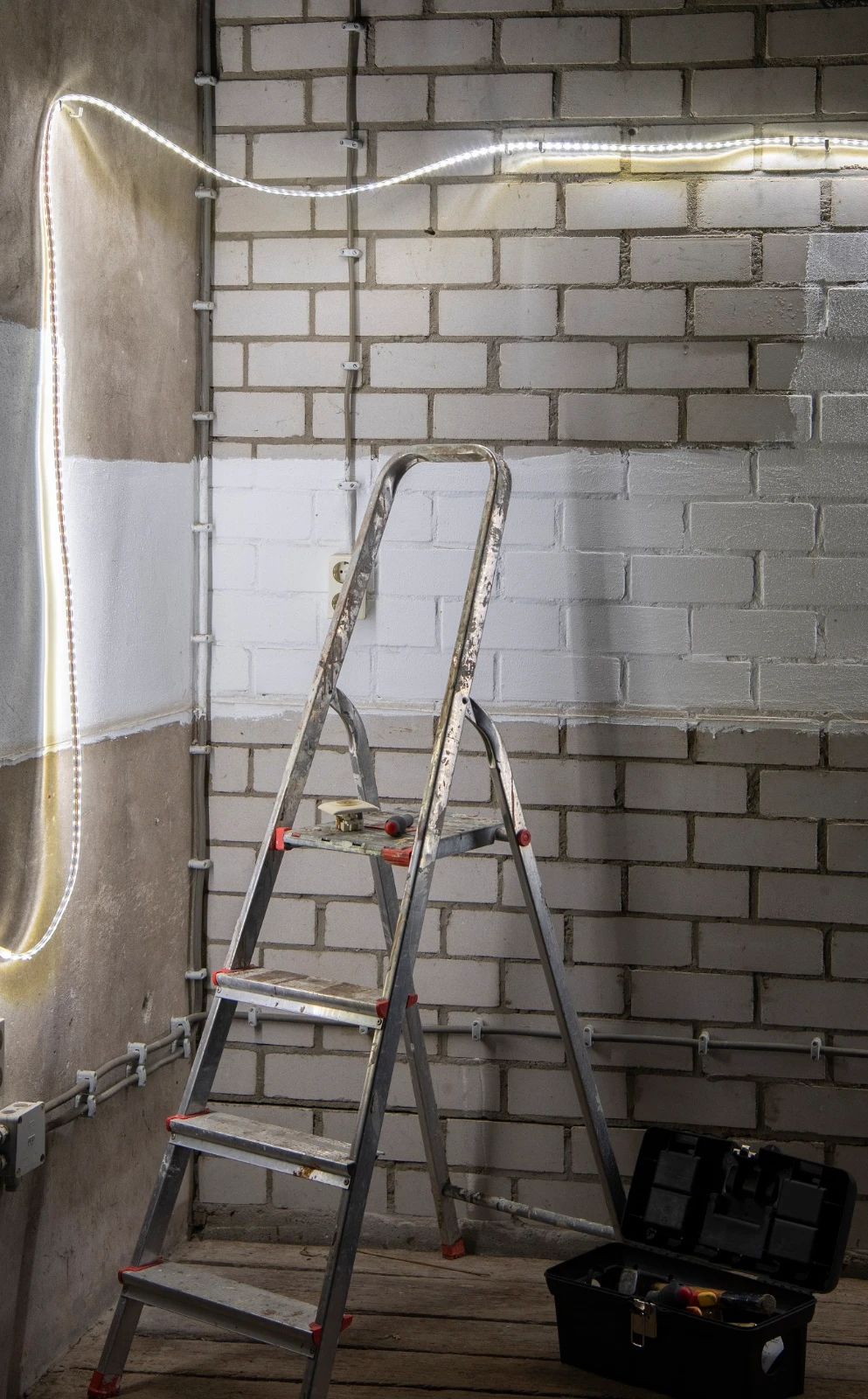

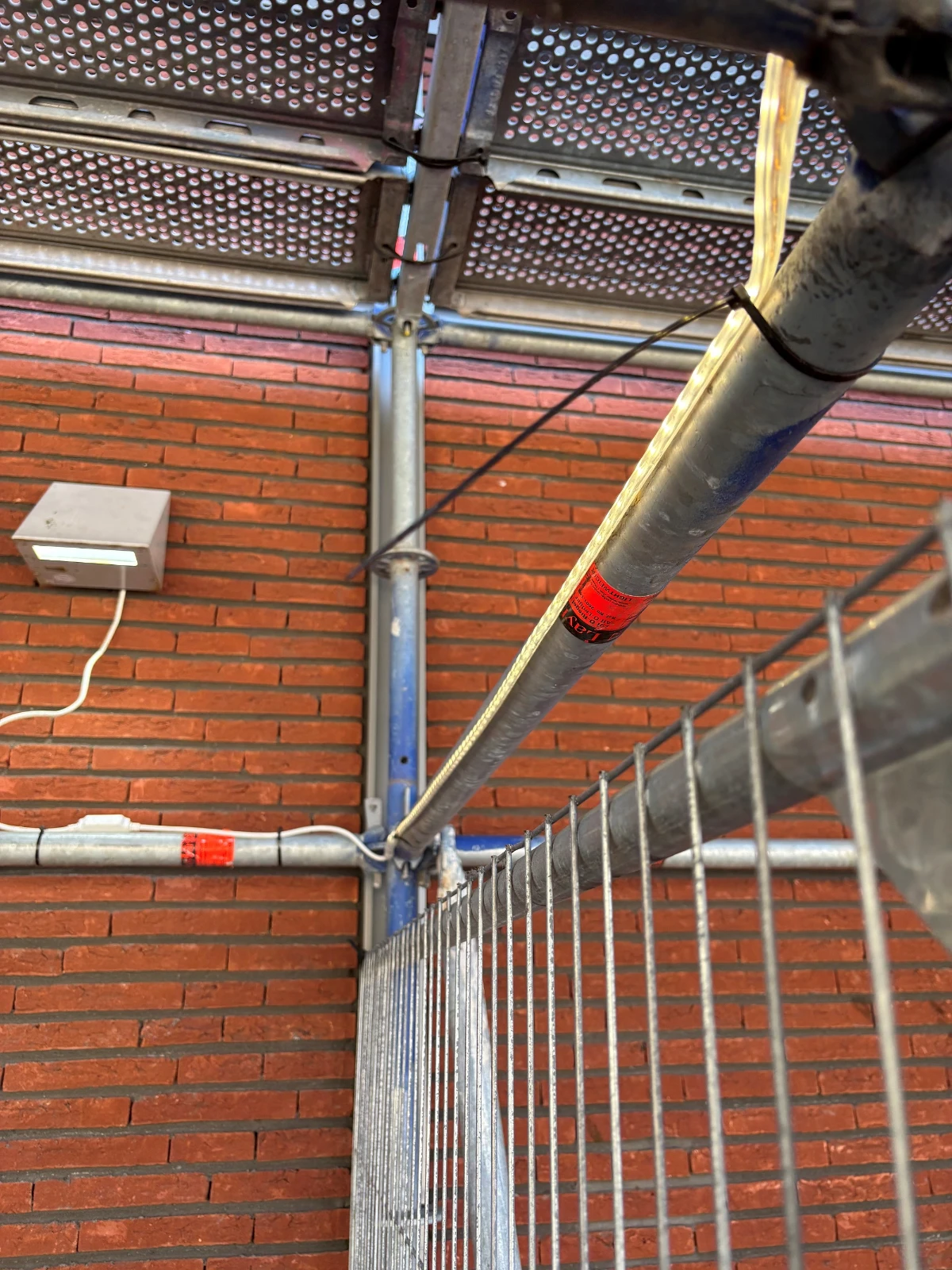

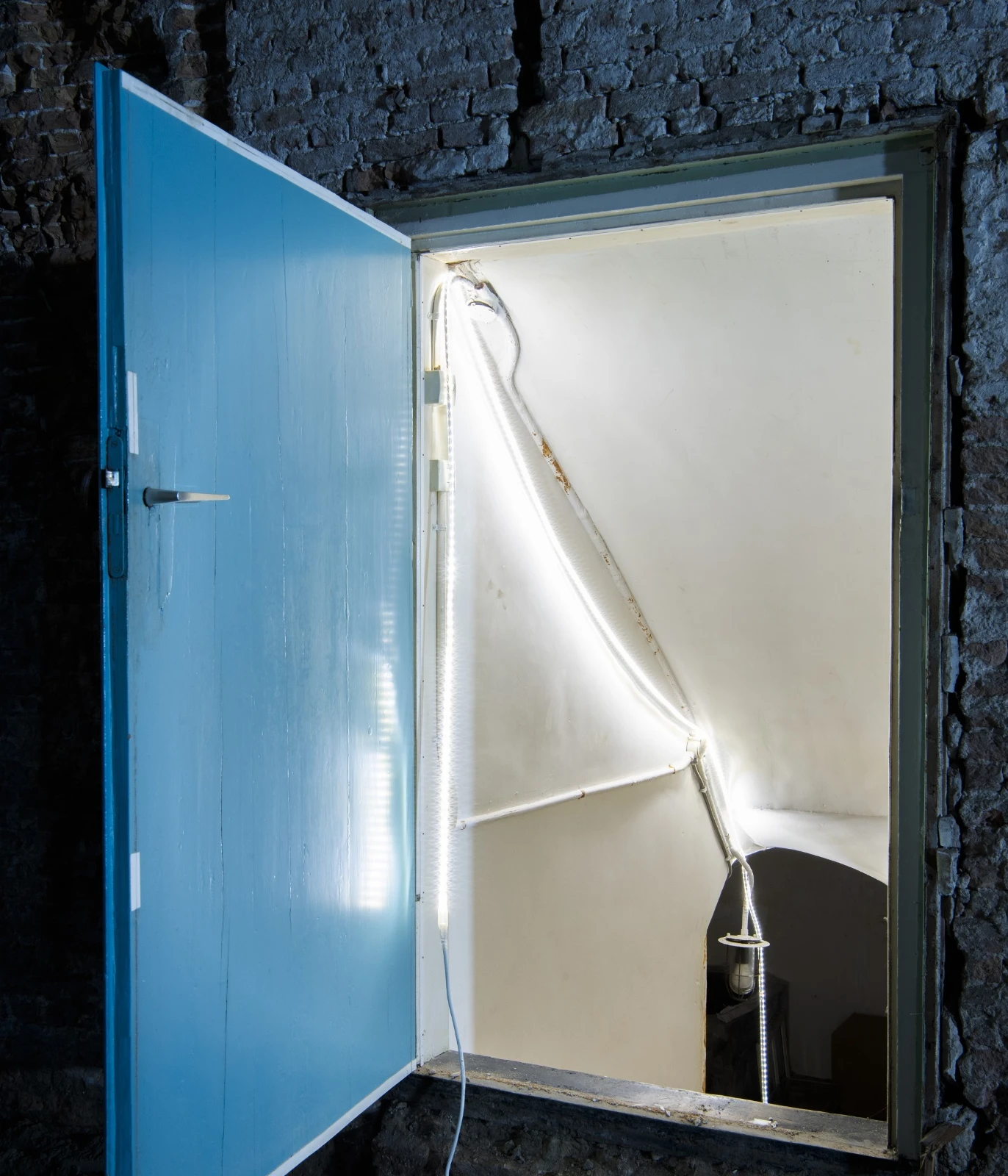

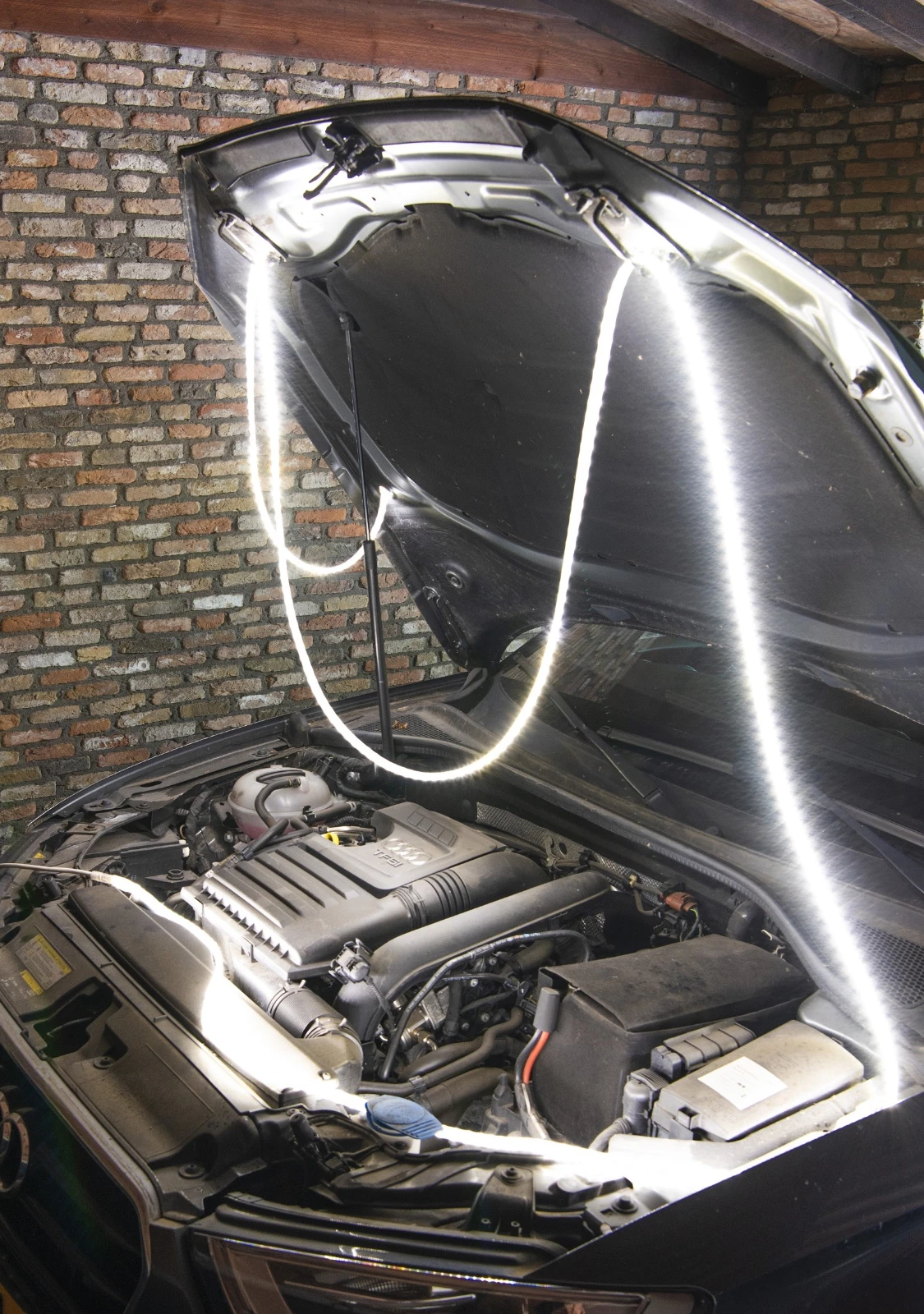

The Robust LED Rope is part of the Bailey Robust work lighting series. It is a robust rope light of 5 meters to illuminate construction sites and yards and to secure the walkways and work paths. This Class II rope light is water resistant (IP65) and can take a beating (IK10) because it is cast in silicone. With 60 Epistar LEDs per meter (380 lumens per meter), the Rope gives 120˚ cold light (4000K). Supplied with a 230V power supply with a built-in AC/DC adapter and 1.5 meter power cable. Mounting clips are available (item 145378).The Rope is easy to shorten by using standard PVC glue (not included) and end cap (also available separately with article number 145376). Suitable for ambient temperatures from -20°C to +40°C.

Please read the manual before use. Fully unroll LED Rope before use.

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

Click here for Eprel specifications

General ETIM properties

ETIM group
Luminaires
ETIM class
Light ribbon/-hose/-strip
Name
RoBust LED Rope 5M 5W/m 380lm/m 4000K IP65
Brand
Bailey
Productseries
Robust LED rope
Producttype
5W/m
GTIN
8714681456378
Manufacturer articlenumber
145637

ETIM specifications

Total length [m]
5
Luminous flux per meter [lm]
380
Colour temperature [K]
4000 - 4000
Colour of light
White
Lamp voltage [V]
220 - 240
Degree of protection (IP)
IP65
Model
Hose
Mounting method
Other
Lamp type
LED not exchangeable
Number of nodes per meter
60
Lamp power per meter [W]
5
Voltage type
AC
Beam angle [°]
120
Type of control gear
LED operating device voltage-controlled
Suitable for dimmer
No
Exchangeable control gear
No
Energy efficiency class of the built-in lamp
Other
Rated lifetime L70/B50 at 25 °C [h]
10000
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) [%]
96
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) [%]
5
Protection class according to IEC 61140
II
Max. system power [W]
250
Constant light output (CLO)
Yes
Colour rendering index CRI
80-89
Power factor
0.9
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Width [mm]
12
Height/depth [mm]
6
Length [mm]
5000
Lowest bending radius [mm]
30
Luminaire efficacy [lm/W]
76
Length of particular segments [mm]
1000
With end piece
Yes
With connection set
Yes
With protective cover
Yes
Self-adhesive
No
Type of wiring
Ending
Number of poles
2
Conductor cross section [mm²]
1
Connection type
Other
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Energy efficiency class of the light source according to EU regulation 2019/2015
G
Type of power supply
Mains power supply
Downloads
Manual
IM_RobustLedRope12x6-02.pdf

Complementary articles

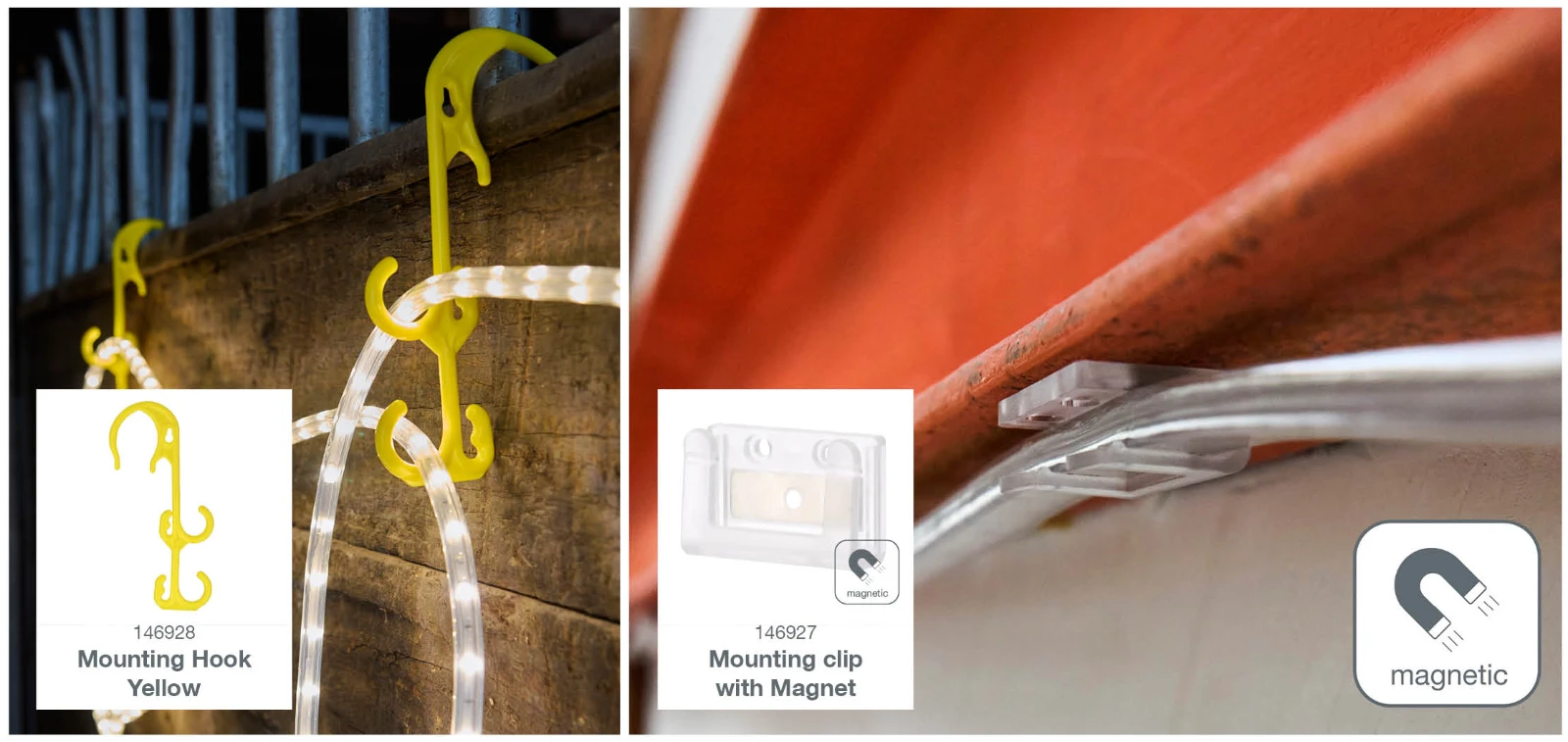

Mounting clip with Magnet for LED Rope
