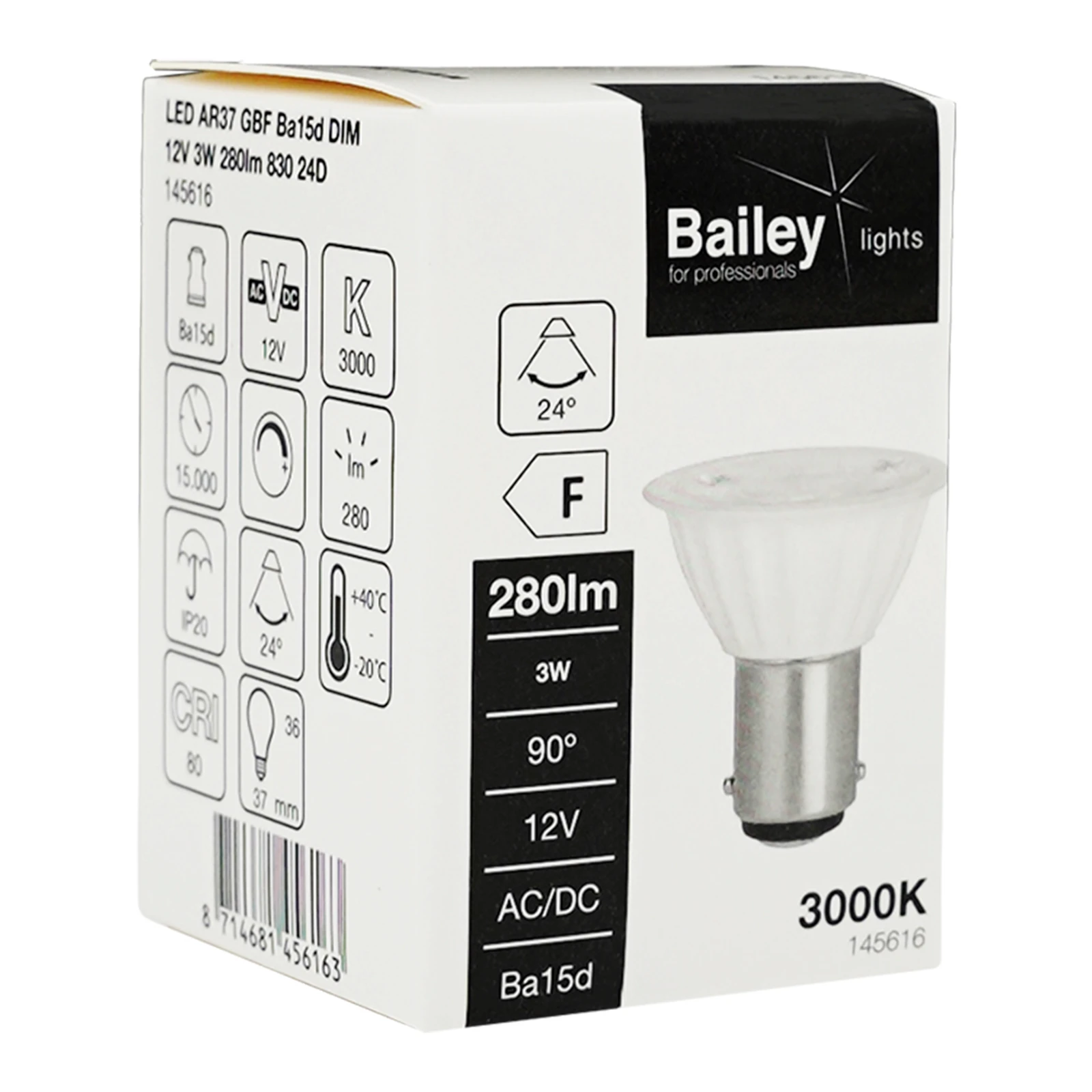

LED AR37 GBF Ba15d DIM 12V 3W (20W) 280lm 830 24°

Article number: 145616

BAI BaiSpot LED Reflector AR37 Ba15d 12V AC/DC 3W 280lm (20W) 3000K 24° Dimmable 36x37mm Ceramic reflector Alt. Aluline GBF 6435 LED-lamp

The so-called LED spots from the BaiSpot series are characterized by a much longer lifespan and considerably less energy consumption than their Aluline halogen predecessors. Due to the compact design with LED technology in a traditional aluminum housing, they are easily interchangeable. This dimmable lamp is ideal for use in typical AR37 applications such as general and accent lighting in shops, restaurants, households, elevators, trains and museums. Ambient temperature range: -20°C to +40°C.

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

Click here for Eprel specifications

General ETIM properties

ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED AR37 GBF Ba15d DIM 12V 3W (20W) 280lm 830 24°
Brand
Bailey
Productseries
BaiSpot LED LV
Producttype
AR37
GTIN
8714681456163
Manufacturer articlenumber
145616

ETIM specifications

Socket
BA15d
Luminous flux [lm]
280 - 280
Nominal voltage [V]
12 - 12
Lamp power [W]
3 - 3
Colour temperature [K]
3000 - 3000
Diameter [mm]
37
Length [mm]
36
Dimmable
Yes
Lamp shape
Reflector
Beam angle [°]
24 - 24
Colour
White
Type of glass/cover
Frosted
Lamp designation
A-type
Colour rendering index CRI
80-89
Voltage type
AC/DC
Filament lamp
No
Luminous intensity [cd]
780
Rated luminous flux according to IEC 62612 [lm]
280
Power factor
0.9
Lamp efficacy [lm/W]
93
Nominal current [mA]
290 - 290
Colour of light according to EN 12464-1
Warm white < 3300 K
Housing colour
White
Average nominal lifetime [h]
15000
Degree of protection (IP)
IP20
Energy Efficiency Index (EEI)
98
Energy efficiency class
No
Colour consistency (McAdam ellipse)
SDCM6
Min. number of switching cycles
30000
Weighted energy consumption in 1000 hours [kWh]
3
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG1
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
Yes
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
No
Energy efficiency class according to EU regulation 2019/2015
No
With twilight switch
No
Downloads
Dimmer compatibility list
BAI_DCL_145616.pdf
