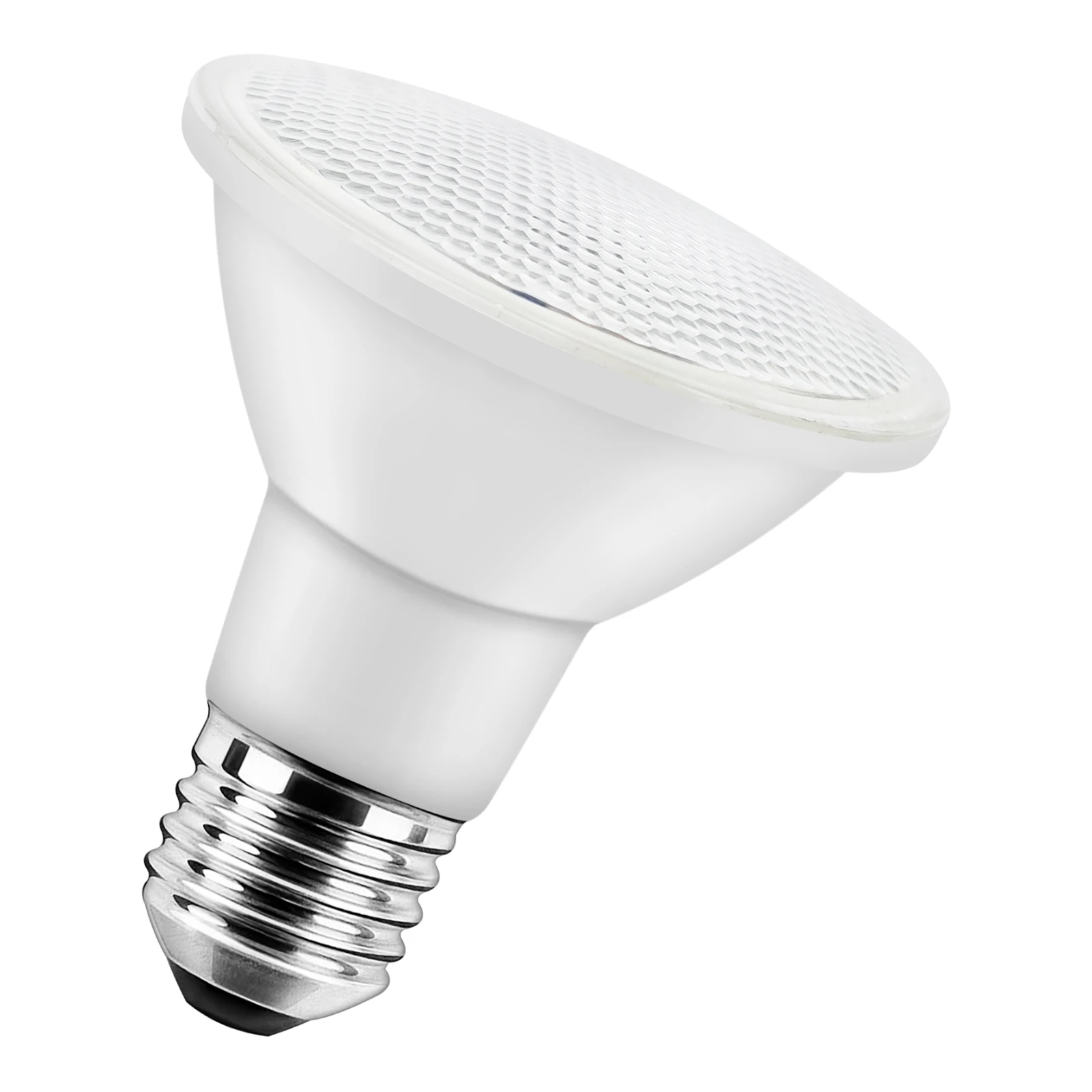

LED Spot PAR20 E27 DIM 7W (50W) 560lm 830 40° IP65

Article number: 145513

BAI BaiSpot LED PAR20 E27 7W (50W) 560lm 3000K 40° Dimmable 230V-240V 62x78mm Only the cover is IP65 LED-lamp

The so-called LED spots from the BaiSpot series are characterized by a much longer lifespan and significantly less energy consumption than their halogen predecessors. Due to the compact design, they are easily interchangeable. Spots are mainly used to provide directed light from the ceiling or wall. This version of the BaiSpot is dimmable. Use the correct LED dimmer. IP65 front disc: suitable for outdoor use if the lamp base is protected against contact with water. Ambient temperature range: -20°C to +45°C.

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

Click here for Eprel specifications

General ETIM properties

ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED Spot PAR20 E27 DIM 7W (50W) 560lm 830 40° IP65
Brand
Bailey
Productseries
BaiSpot LED MV
Producttype
PAR20
GTIN
8714681455135
Manufacturer articlenumber
145513

ETIM specifications

Socket
E27
Luminous flux [lm]
560 - 560
Nominal voltage [V]
220 - 240
Lamp power [W]
7 - 7
Colour temperature [K]
3000 - 3000
Diameter [mm]
62
Length [mm]
78
Dimmable
Yes
Lamp shape
Reflector
Beam angle [°]
40 - 40
Colour
White
Type of glass/cover
Clear
Lamp designation
PAR20
Colour rendering index CRI
80-89
Voltage type
AC
Filament lamp
No
Luminous intensity [cd]
833
Rated luminous flux according to IEC 62612 [lm]
80
Power factor
0.8
Nominal current [mA]
38 - 38
Colour of light according to EN 12464-1
Warm white < 3300 K
Housing colour
White
Average nominal lifetime [h]
15000
Degree of protection (IP)
IP65
Energy efficiency class
No
Colour consistency (McAdam ellipse)
SDCM6
Min. number of switching cycles
15000
Weighted energy consumption in 1000 hours [kWh]
7
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG1
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
Yes
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
No
Energy efficiency class according to EU regulation 2019/2015
No
With twilight switch
No
Downloads
Dimmer compatibility list
BAI_DCL_PAR20-145513.pdf
