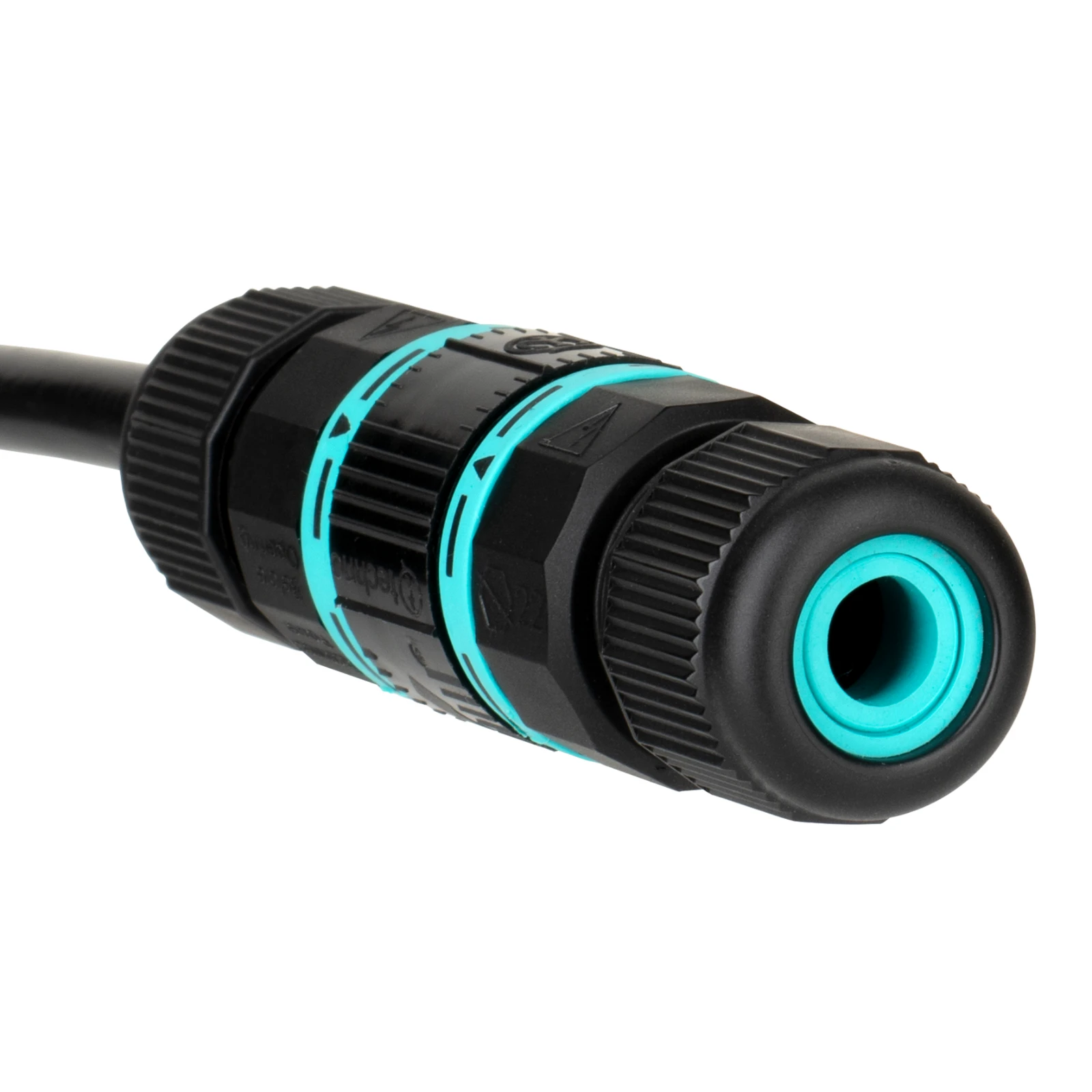

Mini Connector TH387 Plug-Socket 3P IP68
Article number: 145141
BAI Watertight Mini Connector TH387 Tee Straight Plug & Socket 1 way in - 1 way out 3 poles x 4mm² (max) 17.5A 500V/AC IP68 23x85mm Black
Waterproof IP68 mini cable connector equipped with male and female plug-in sockets. IMPORTANT: for safety reasons, the voltage may only be connected to the female plug-in socket. 2 pole + earth. Wire cross section (stripped cable) 0.5mm2-4.0mm2. Cable diameter 7.0mm-12.0mm. Thermal resistance: -40°C +125°C.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Accessories for lighting
ETIM class
Electrical accessories/spare parts for luminaires
Name
Mini Connector TH387 Plug-Socket 3P IP68
Brand
Bailey
Productseries
Watertight connector
Producttype
TH387
GTIN
8714681451410
Manufacturer articlenumber
145141
ETIM specifications
Number of cores
3
Nominal cross section [mm²]
4
Length [mm]
85
Width [mm]
23
Height/depth [mm]
23
Type of accessory/spare part
Coupler/connector straight
Colour
Black
Accessory
Yes
Spare part
No
Supporting protocol for ZigBee
No
