LED GY6.35 DIM 12V 3W (29W) 310lm 827 Clear
Article number: 145102

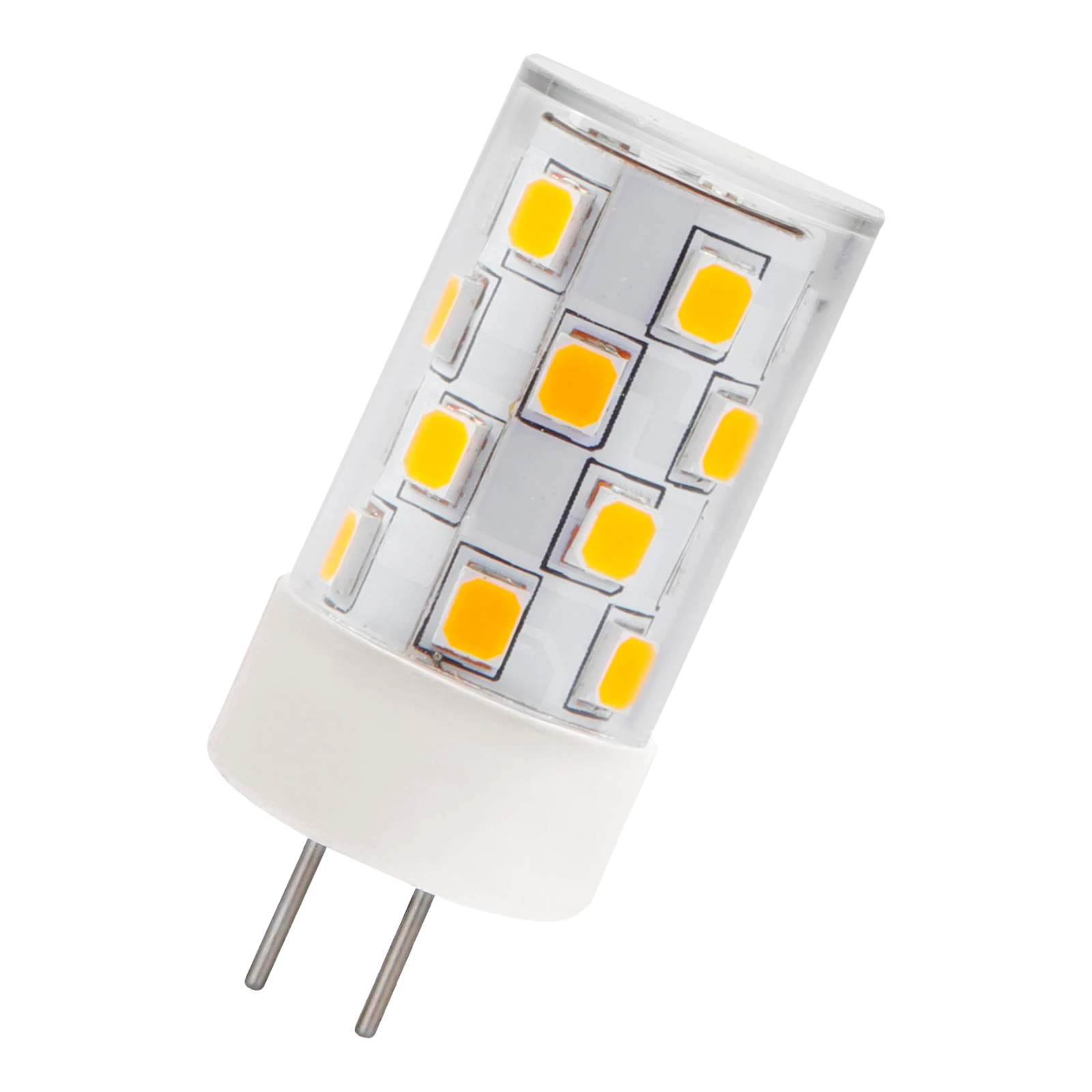

BAI LED GY6.35 Dimmable 12V AC/DC 3W (29W) 310lm 2700K Clear 360° 17.5x39mm LED-lamp
The LED compact series consists of lamps that are ideal as replacements for halogen lamps due to their compact design. This GY6.35 version can be used in standard 12Vac low-voltage systems as well as in systems with direct voltage (DC). Ambient temperature range: -40°C to +40°C.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED GY6.35 DIM 12V 3W (29W) 310lm 827 Clear
Brand
Bailey
Productseries
LED Capsule
Producttype
GY6.35 DIM
GTIN
8714681451021
Manufacturer articlenumber
145102
ETIM specifications
Socket
GY6.35
Luminous flux [lm]
310 - 310
Nominal voltage [V]
12 - 12
Lamp power [W]
3 - 3
Colour temperature [K]
2700 - 2700
Diameter [mm]
17.5
Length [mm]
39
Dimmable
Yes
Lamp shape
Tube, single-ended
Beam angle [°]
360 - 360
Colour
White
Type of glass/cover
Clear
Lamp designation
Other
Colour rendering index CRI
80-89
Voltage type
AC/DC
Filament lamp
No
Rated luminous flux according to IEC 62612 [lm]
310
Power factor
0.9
Lamp efficacy [lm/W]
103
Nominal current [mA]
250 - 250
Colour of light according to EN 12464-1
Warm white < 3300 K
Housing colour
Colourless
Average nominal lifetime [h]
15000
Degree of protection (IP)
IP20
Energy efficiency class
No
Colour consistency (McAdam ellipse)
SDCM6
Min. number of switching cycles
7500
Weighted energy consumption in 1000 hours [kWh]
3
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG1
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
Yes
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
No
Energy efficiency class according to EU regulation 2019/2015
No
With twilight switch
No
Material of light bulb
Plastic
Dimmer compatibility list
