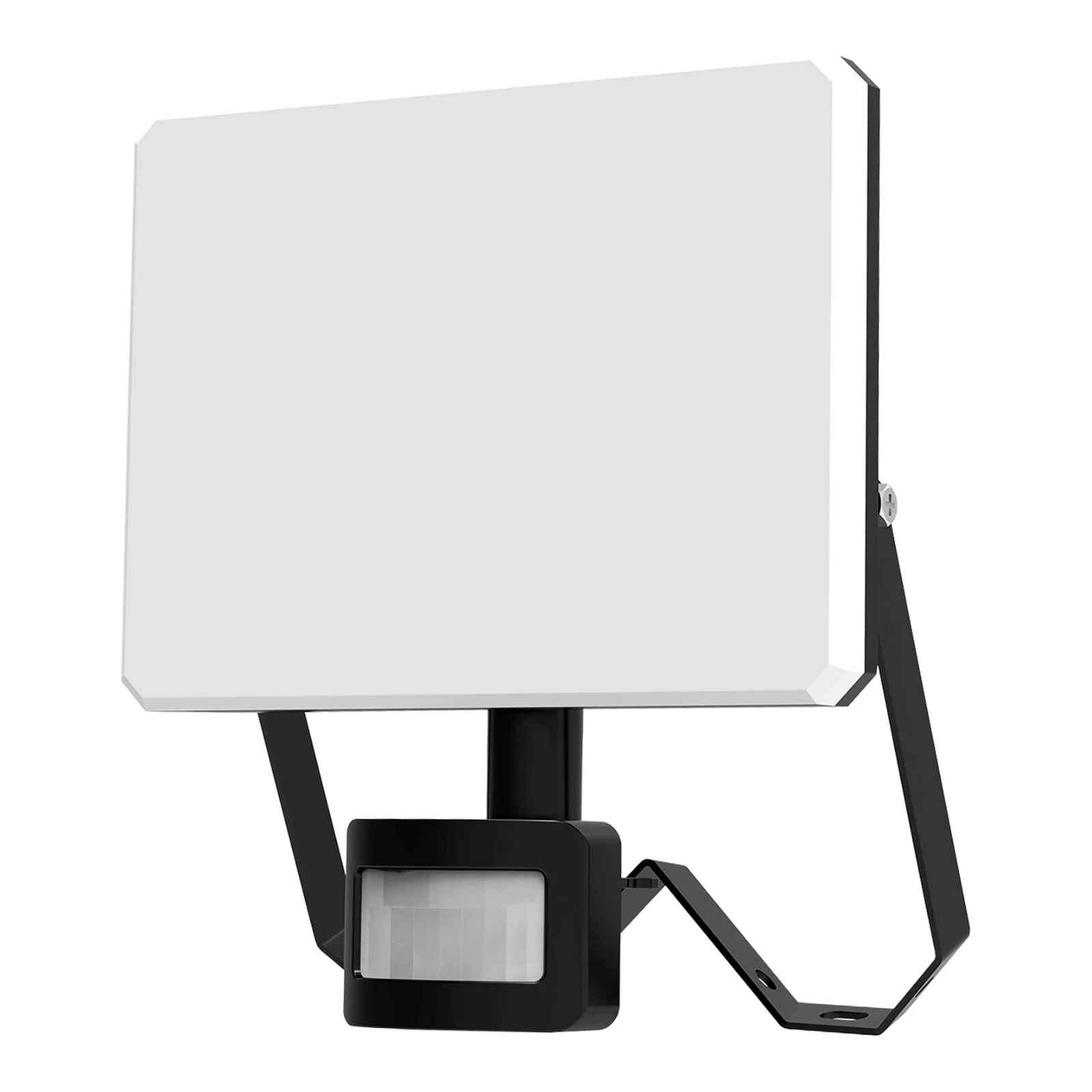

Smart Outdoor LED Security Light 20W 2000lm Sensor
Article number: 144976
CAL Smart Outdoor LED Security Light + PIR motion sensor 20W 2000lm 220-240V IP44 140x50x170mm Bluetooth mesh protocol
To control this product via Wifi you need the Smart Outdoor Link Bluetooth Mesh Gateway (144980). Without the gateway, you can control the product within a range of 8-10 meters via Bluetooth. Sensor time 10±5sec.- 10±2min. Sensor distance 10 meters. Including 15cm H05RN-& 3G1.0mm2 cable + IP68 connector.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Luminaires
ETIM class
Downlight/spot/floodlight
Name
Smart Outdoor LED Security Light 20W 2000lm Sensor
Brand
Calex
Productseries
CAL Smart Outdoor
Producttype
Bluetooth Luminaire
GTIN
8712879149750
Manufacturer articlenumber
429340
ETIM specifications
Luminous flux [lm]
2500 - 2500
Max. system power [W]
24
Colour temperature [K]
3000 - 6500
Nominal voltage [V]
220 - 240
With movement sensor
Yes
Lamp holder
None
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Adjustability
Rotatable
With light sensor
No
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Housing material
Plastic
Surface protection
Plastic-coated
Housing colour
Black
Material cover
Plastic, opal
Surface brushed
No
Voltage type
AC
LED nominal current at constant current [mA]
135 - 135
Type of control gear
LED operating device current-controlled
With control gear
No
Exchangeable control gear
No
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
Yes
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
No
Reflector
None
Light distributor
None
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Colour rendering index CRI
80-89
Energy efficiency class
Other
Energy efficiency class of the built-in lamp
Other
Degree of protection (IP)
IP44
Degree of protection (NEMA)
Other
Impact strength
IK02
Protection class according to IEC 61140
II
Suitable for lamp power [W]
20 - 20
Colour of light
White
Emergency power supply system
None
Rated luminous flux according to IEC 62722-2-1 [lm]
2500
Constant light output (CLO)
No
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Width [mm]
140
Height/depth [mm]
50
Length [mm]
170
Type of wiring
Ending
Conductor cross section [mm²]
1
Connection type
Other
Power factor
0.7
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
None
Luminaire efficacy [lm/W]
100
Photobiological safety according to EN 62471
Other
Dimmable
Yes
Movement sensor/presence detector technology
Passive infrared
Covering of the luminaire with thermally insulating material possible
No
Number of poles
2
Suitable for workplace according to EN 12464-1
No
Compatible with Apple HomeKit
No
Colour consistency (McAdam ellipse)
Other
Dimming Sine Wave Reduction
No
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
Yes
With presence detector
No
IFTTT support available
No
Containing product according to 2019/2020/EU
No
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP44
Rated luminous flux according to IEC 62722-2- 1 [lm]
2500 - 2500
Luminaire efficacy [lm/W]
100 - 100
Compatible with Casambi
No
UK Building Regs Part B fire rated - 30 minutes
No
UK Building Regs Part B fire rated - 60 minutes
No
UK Building Regs Part B fire rated - 90 minutes
No
