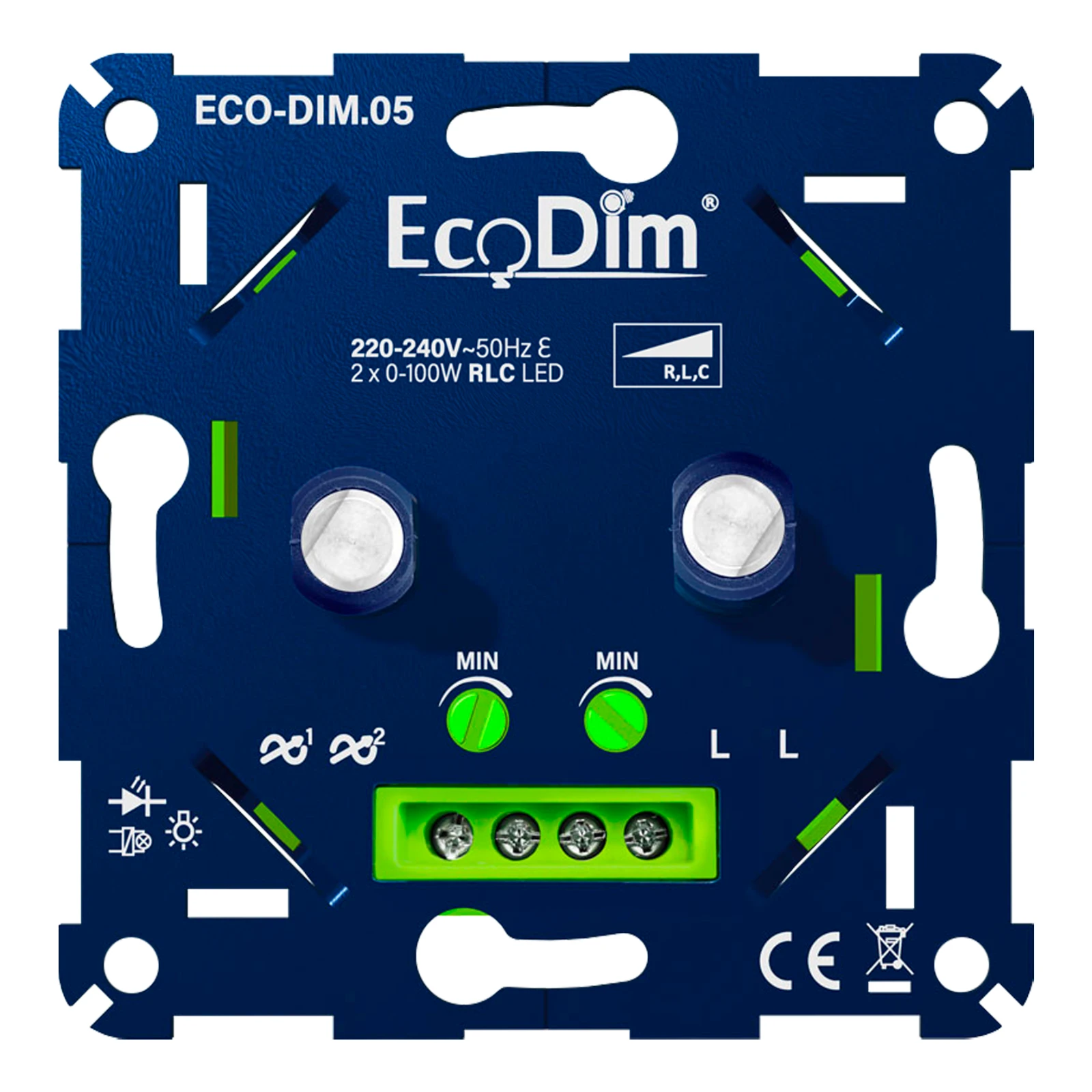

EcoDim ECO-DIM.05 LED Dimmer Duo 2x 0-100W Phase Cut (RC)
Article number: 144248
ECO DIM ECO-DIM.05 LED Wall Dimmer duo 2x 0-100W Phase Cut (RC)
Duo LED dimmer phase cut (RC) 2x 0-100W LED. Suitable for all duo dimmer buttons with D-axis. Optimal dimmability & light stability. Small installation depth (23mm). MIN setting. Soft start Press/turn. Matching cover material available.
Please read the manual before use.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Domestic switching devices
ETIM class
Dimmer
Name
EcoDim ECO-DIM.05 LED Dimmer Duo 2x 0-100W Phase Cut (RC)
Brand
EcoDim
Productseries
Dimmers
Producttype
2x0-100W R,C
GTIN
8719322370723
Manufacturer articlenumber
ECO-DIM.05
ETIM specifications
Assembly arrangement
Basic element
Mounting method
Flush-mounted
Method of operation
Turn/push button
Number of modules (module system)
0
Dimming phase cut-on (leading edge)
No
Dimming phase cut-off (trailing edge)
Yes
Serial dimmer
No
Type of load
Universal and LED Retrofit
Substation input
No
Light value memory
Yes
Applicable with button
No
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Type of fastening
Mounting with screw
App control via Bluetooth
No
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Blue
RAL-number (similar)
5017
Transparent
No
Suitable for degree of protection (IP)
IP20
Impact strength
IK00
Nominal voltage [V]
230 - 230
Frequency [Hz]
50 - 60
Control voltage [V]
230 - 230
Nominal power resistive load [W]
100 - 100
Nominal power inductive load [VA]
0 - 0
Nominal power capacitive load [VA]
100 - 100
Max. switching power LED [W]
100
Connection type
Screwed terminal
Core cross section [mm²]
3 - 5
Device width [mm]
71
Device height [mm]
71
Device depth [mm]
23
Min. depth of built-in installation box [mm]
40
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Number of units
1
Min. brightness controllable
Yes
Power consumption [W]
0
