EcoDim ED-10002 Frame+cover+button White
Article number: 144239

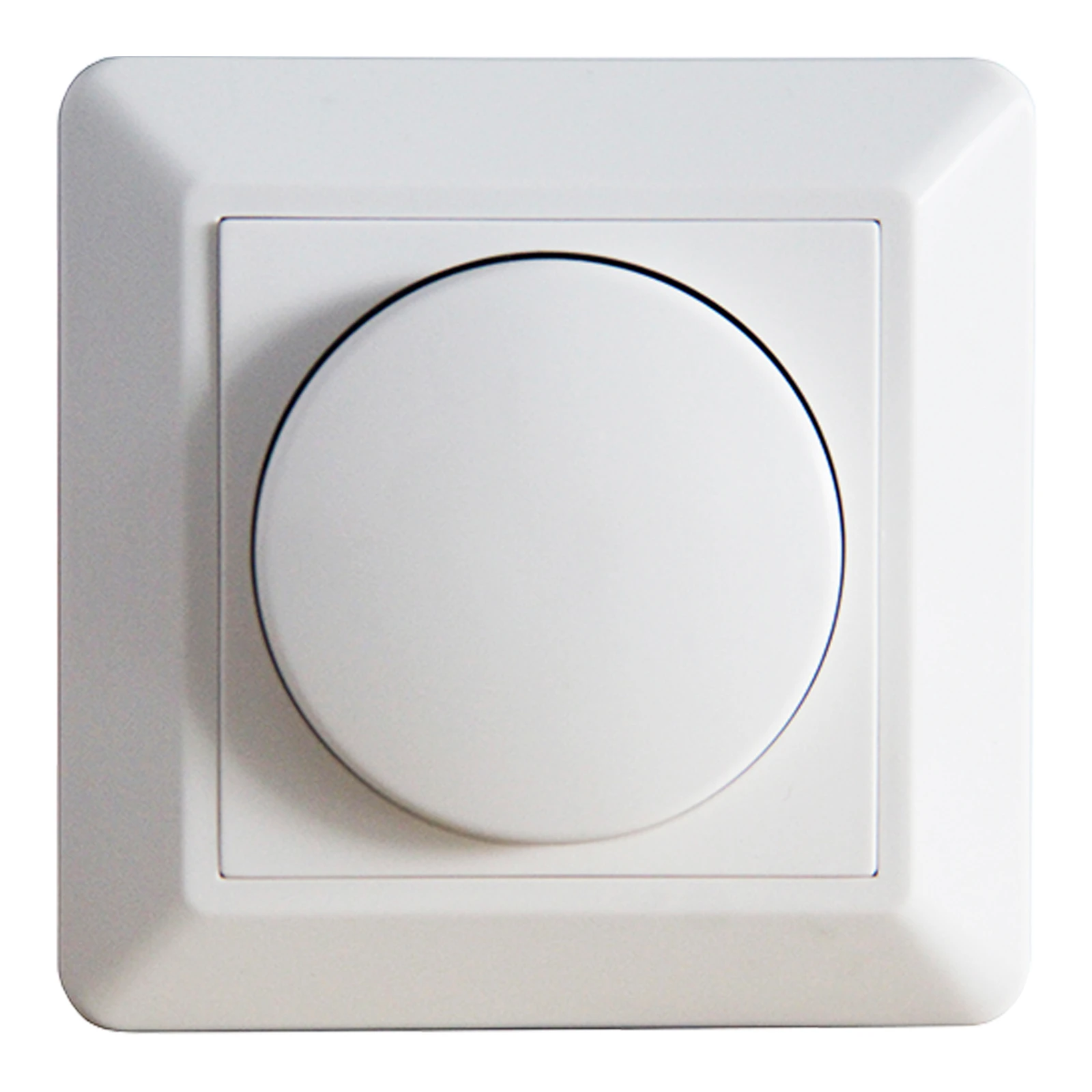

ECO DIM ED-10002 Button incl. Cover and Frame
Dimmer button incl. cover and frame. Push/turn. RAL9010. Suitable for dimmers with ø4mm dimmer shaft. External dimensions cover material: 84*84*11mm (HxWxD). Diameter rotary knob: ø49mm. Diameter rotary shaft: ø4mm.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Domestic switching devices
ETIM class
Control element/cover plate for domestic switching devices
Name
EcoDim ED-10002 Frame+cover+button White
Brand
EcoDim
Productseries
Schakelmateriaal
Producttype
ED-10002
GTIN
8719322370884
Manufacturer articlenumber
ED-10002
ETIM specifications
Colour
White
Surface finishing
Glossy
Impact strength
IK00
Width [mm]
84
Height [mm]
3.31
Depth [mm]
11
Model
Turn button
RAL-number (similar)
9003
Utilization
Dimmer
Imprint/indication
None
Scannable symbol/barrier free
No
Suitable for touch sensor connector for bus system
No
Type of fastening
Screw mounting
Monitoring window/light outlet
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Anti-bacterial treatment
No
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
IP20
