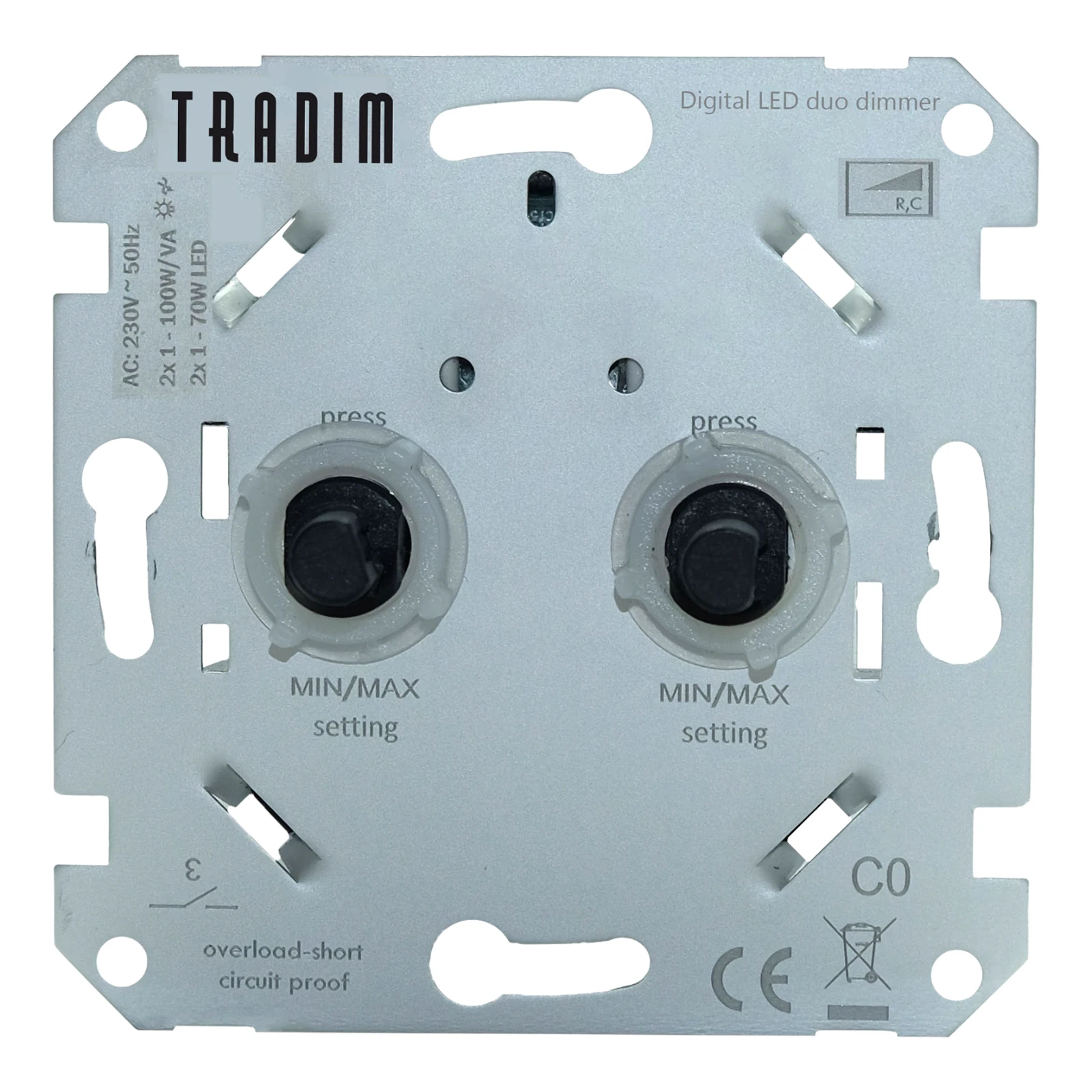

Tradim 2496 Digital Duo Dimmer LED 2 x 1-100W

Article number: 144089

Tradim 2496 Digital Duo Wall dimmer duo 2 x 1-100W/VA LED till 50W/230V per channel RC Rotary dimmer

Digital Tradim duo LED wall dimmer (230VAC/50Hz, 2 x 1-100W/VA). This R,C dimmer is suitable for dimming (filament) led, halogen and incandescent lamps. Precise light control through digital dimming technology. Soft start protects lamps and dimmer. Easy to install because the installation depth is only 17mm! Easy setting of the minimum and maximum dimming position per channel. No flickering, silent dimming. Stable light image. No neutral wire needed. 220-240V and in combination with electronic transformer (driver) suitable for LV led.

Please read the manual before use.

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

General ETIM properties

ETIM group
Domestic switching devices
ETIM class
Dimmer
Name
Tradim 2496 Digital Duo Dimmer LED 2 x 1-100W
Brand
Bailey
Productseries
Tradim
Producttype
LED Wall
GTIN
8714681440896
Manufacturer articlenumber
144089

ETIM specifications

Assembly arrangement
Basic element
Mounting method
Flush-mounted
Method of operation
Turn/push button
Number of modules (module system)
0
Dimming phase cut-on (leading edge)
No
Dimming phase cut-off (trailing edge)
Yes
Serial dimmer
No
Type of load
Universal and LED Retrofit
Substation input
No
Light value memory
Yes
Applicable with button
No
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Type of fastening
Mounting with screw
App control via Bluetooth
No
Material
Metal
Material quality
Other
Halogen free
Yes
Surface protection
Anodised
Surface finishing
Matt
Colour
Aluminium
Transparent
No
Suitable for degree of protection (IP)
IP20
Impact strength
IK00
Nominal voltage [V]
220 - 240
Frequency [Hz]
50 - 50
Connection type
Screwed terminal
Core cross section [mm²]
2.5 - 2.5
Device width [mm]
70
Device height [mm]
70
Device depth [mm]
17
Min. depth of built-in installation box [mm]
33
Downloads
Manual
Manual_Tradim2496.pdf
