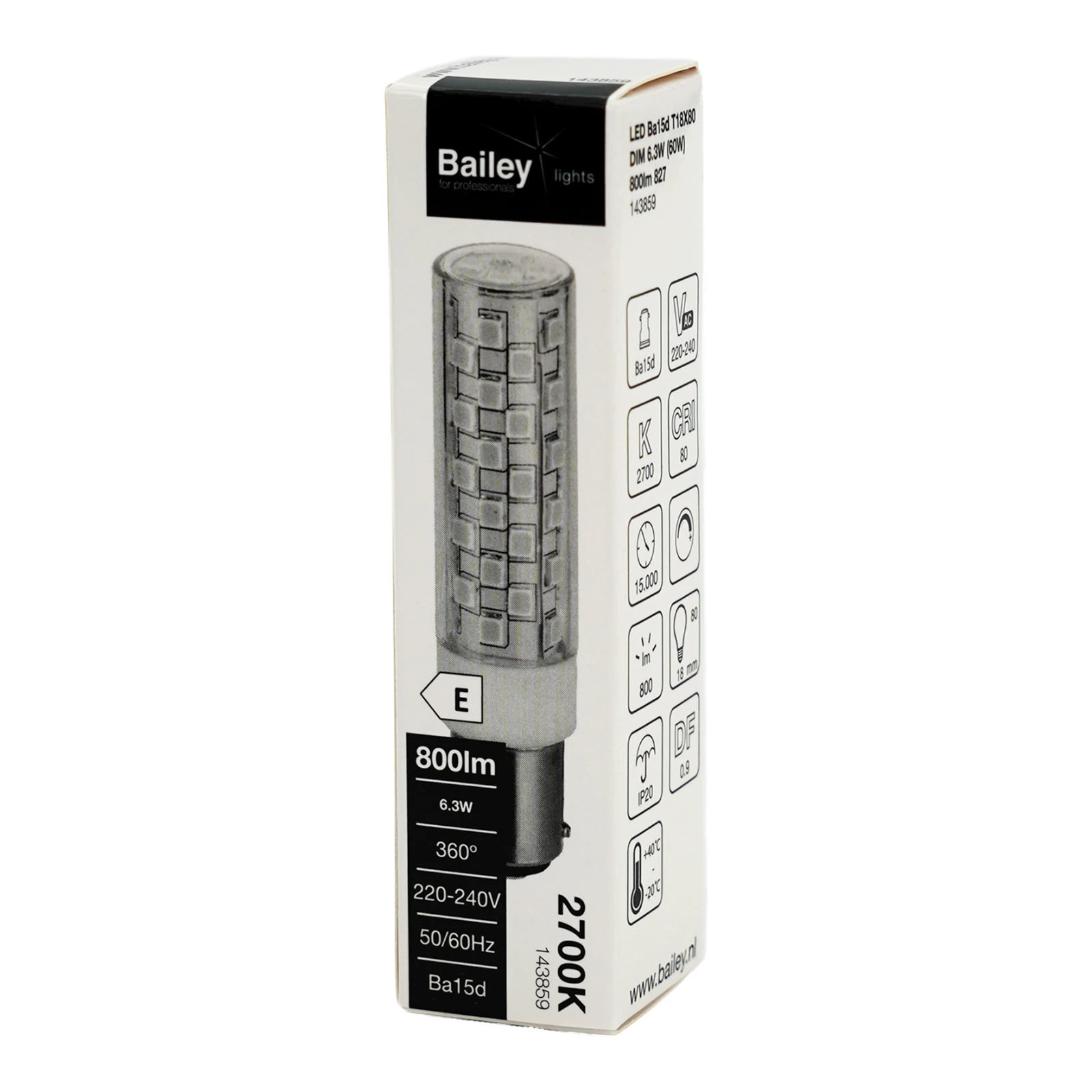

LED Special Ba15d T18X80 DIM 6.3W (60W) 800lm 827
Article number: 143859
BAI LED Compact Tube 18x80mm Ba15d 230V-240V 6.3W 2700K 800lm (60W) Dimmable Clear 300° B15d LED-lamp
The LED compact series consists of lamps that are ideal as replacements for conventional lamps due to their compact design and high luminous flux. These lamps are dimmable with the right dimmer. Consult the dimmer list on the Bailey site for this. We recommend the Bailey Wonderwall wall dimmer. Ambient temperature range: -20°C to +40°C.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED Special Ba15d T18X80 DIM 6.3W (60W) 800lm 827
Brand
Bailey
Productseries
LED Special
Producttype
Tube Ba15d
GTIN
8714681438596
Manufacturer articlenumber
143859
ETIM specifications
Socket
BA15d
Luminous flux [lm]
800 - 800
Nominal voltage [V]
220 - 240
Lamp power [W]
6.3 - 6.3
Colour temperature [K]
2700 - 2700
Diameter [mm]
18
Length [mm]
80
Dimmable
Yes
Lamp shape
Tube, single-ended
Beam angle [°]
300 - 300
Colour
White
Type of glass/cover
Clear
Lamp designation
Other
Colour rendering index CRI
80-89
Voltage type
AC
Filament lamp
No
Rated luminous flux according to IEC 62612 [lm]
800
Power factor
0.9
Lamp efficacy [lm/W]
127
Nominal current [mA]
30 - 30
Colour of light according to EN 12464-1
Warm white < 3300 K
Housing colour
White
Average nominal lifetime [h]
15000
Degree of protection (IP)
IP20
Energy Efficiency Index (EEI)
0.1
Energy efficiency class
E
Colour consistency (McAdam ellipse)
SDCM6
Min. number of switching cycles
12500
Weighted energy consumption in 1000 hours [kWh]
7
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG1
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
Yes
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
No
Energy efficiency class according to EU regulation 2019/2015
E
With twilight switch
No
Material of light bulb
Plastic
Dimmer compatibility list
