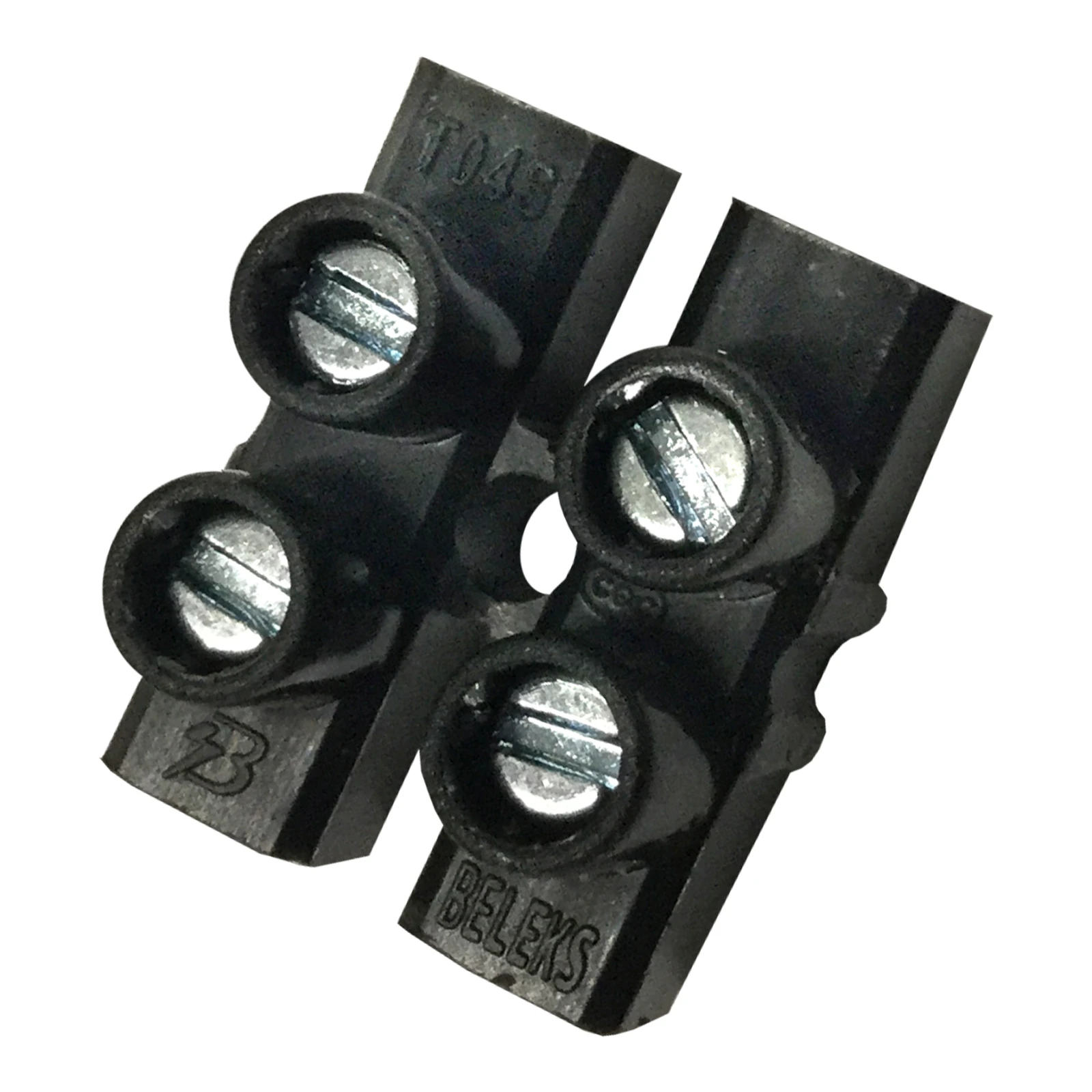

Terminal block 2-pole 2.5mm Black
Article number: 143663
BAI Terminal block 2-pole 2.5mm² Black
A terminal block is a block in which electricity wires are connected to each other.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Terminal blocks
ETIM class
Single- and multi-pole terminal strip
Name
Terminal block 2-pole 2.5mm Black
Brand
Bailey
Productseries
Accessories
Producttype
Terminal block
GTIN
8714681436639
Manufacturer articlenumber
143663
ETIM specifications
Explosion-tested version 'Ex e'
No
Connectable conductor cross section fine-strand without cable end sleeve [mm²]
2.5 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve [mm²]
2.5 - 2.5
Connectable conductor cross section solid-core [mm²]
2.5 - 2.5
Connectable conductor cross section multi-wired [mm²]
2.5 - 2.5
Rated current In [A]
24
Rated voltage [V]
450
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of poles
2
Number of clamp positions per pole
1
Mounting method
Direct mounting
Material insulation body
Thermoplastic
Operating temperature [°C]
0 - 90
Inflammability class of insulation material according to UL94
Other
Width [mm]
115
Height [mm]
15
Closing plate required
No
Colour
Black
Transparent
No
