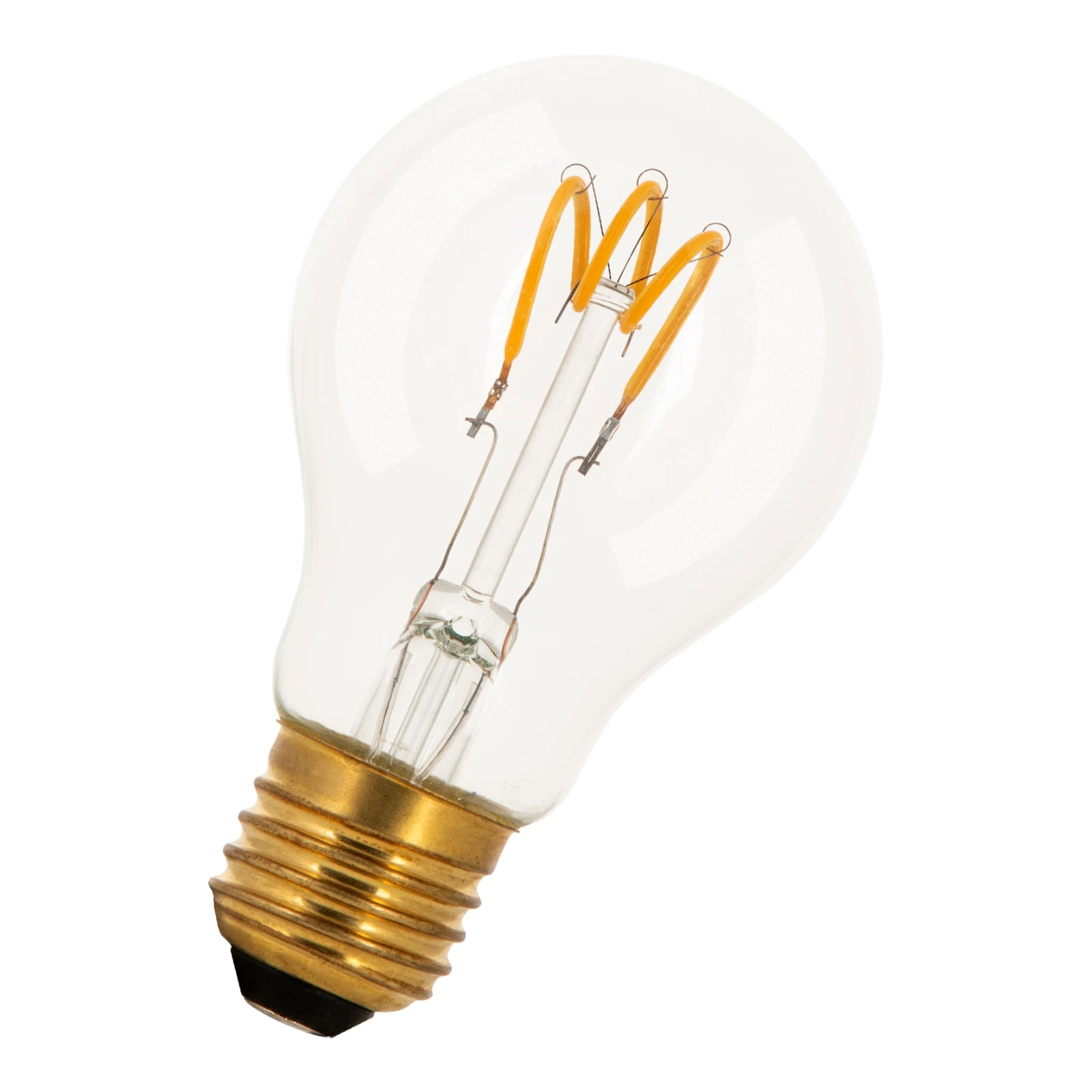

SPIRALED Basic A60 E27 DIM 3W (20W) 190lm 822 Clear
Article number: 143618
BAI Spiraled Basic GLS A60 E27 3W 2200K Clear 190lm (20W) Dimmable 230V-240V 320° 60x105mm DECO LED Filament lamp
With the Spiraled Basic series, Bailey offers LED filament lamps with the same appearance as the original Spiraled® series but at a lower price. They are of course energy efficient and have a long service life. Spiraled® is a protected brand name. These lamps are dimmable with the right dimmer. Consult the dimmer list on the Bailey website for this. We recommend the Bailey Wonderwall wall dimmer.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
SPIRALED Basic A60 E27 DIM 3W (20W) 190lm 822 Clear
Brand
Bailey
Productseries
Spiraled Basic
Producttype
A60
GTIN
8714681436189
Manufacturer articlenumber
143618
ETIM specifications
Socket
E27
Luminous flux [lm]
190 - 190
Nominal voltage [V]
220 - 240
Lamp power [W]
3 - 3
Colour temperature [K]
2200 - 2200
Diameter [mm]
60
Length [mm]
105
Dimmable
Yes
Lamp shape
Pear-shape
Beam angle [°]
320 - 320
Colour
White
Type of glass/cover
Clear
Lamp designation
A-type
Colour rendering index CRI
80-89
Voltage type
AC
Filament lamp
Yes
Rated luminous flux according to IEC 62612 [lm]
190
Power factor
0.9
Lamp efficacy [lm/W]
63
Nominal current [mA]
16 - 16
Colour of light according to EN 12464-1
Warm white < 3300 K
Housing colour
Colourless
Average nominal lifetime [h]
15000
Degree of protection (IP)
IP20
Energy Efficiency Index (EEI)
0.14
Energy efficiency class
G
Colour consistency (McAdam ellipse)
SDCM6
Min. number of switching cycles
15000
Weighted energy consumption in 1000 hours [kWh]
3
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
Yes
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
No
Energy efficiency class according to EU regulation 2019/2015
G
With twilight switch
No
Material of light bulb
Glass
Dimmer compatibility list
