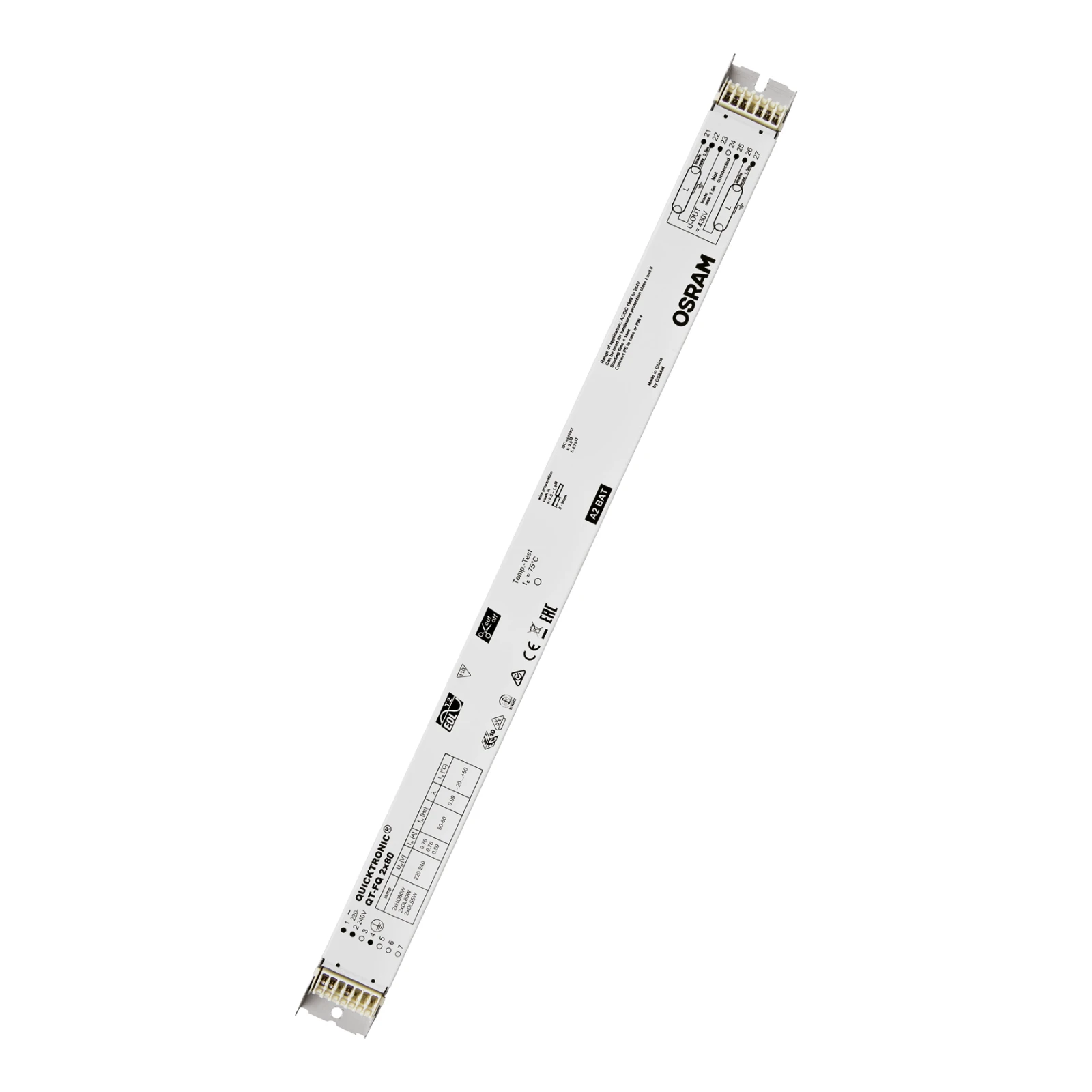

QUICKTRONIC® FQ® T5 G5 2x80W PL-L 2x55W 2x80W

Article number: 143112

OSR QUICKTRONIC® FQ® T5 G5 2x80W PL-L 2x55W 2x80W

Product benefits: Long lamp life. No adverse effects from frequent on/off switching. Automatic restart after lamp replacement. Perfect lamp start for applications with motion sensors. VDE/VDE EMC certified system. Very high energy efficiency thanks to innovative technology. Product features: Supply voltage: 220…240 V. Line voltage: 198…264 V. Line frequency: 50 Hz | 60 Hz. Lamp starts with optimum preheating of the filament. Service life: up to 100,000 hours (temperature at Tc = 65 °C, max. 10% error rate). Energy efficiency index EEI: A2. Safety: according to EN 61347-2-3. Automatic switch-off of defective lamps and at end of service life (EoL T.2). Areas of application: Industry. Open-plan offices, corridors and warehouses. Public buildings. Sports halls and factories. Light strips. Modernisation of existing systems.

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

General ETIM properties

ETIM group
Light control
ETIM class
Ballast (electrical)
Name
QUICKTRONIC® FQ® T5 G5 2x80W PL-L 2x55W 2x80W
Brand
OSRAM
Productseries
QUICKTRONIC® FQ®
Producttype
QT-FQ 2X80
GTIN
4050300825564
Manufacturer articlenumber
4050300825564

ETIM specifications

Model
Electronic
Suitable for number of lamps
2 - 2
Suitable for lamp power [W]
80 - 80
Multiwatt model
No
Suitable for lamp power (2 lamps) [W]
80 - 80
For lamp type HI
No
For lamp type HM
No
For lamp type HS
No
For lamp type LS
No
For lamp type T7
No
For lamp type T16
Yes
For lamp type T16-R
No
For lamp type T26
No
For lamp type T38
No
For lamp type T-U
No
For lamp type TC-D
Yes
For lamp type T-R
No
For lamp type TC-DD
No
For lamp type TC-DEL
No
For lamp type TC-F
No
For lamp type TC-QEL
No
For lamp type TC-S
No
For lamp type TC-L
Yes
For lamp type TC-SEL
Yes
For lamp type TC-T
No
For lamp type TC-TEL
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DSI
No
Dimming DMX
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Nominal voltage [V]
220 - 240
Housing
Metal housing
With strain relief
No
Degree of protection (IP)
IP20
Protection class according to IEC 61140
II
Length [mm]
424
Width [mm]
30
Height [mm]
21
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
Yes
Operation by Bluetooth
No
Compatible with Casambi
No
Downloads
Datasheet
Datasheet_143112.pdf
