LED G9 Glass 2W (22W) 220lm 827 Frosted
Article number: 142598

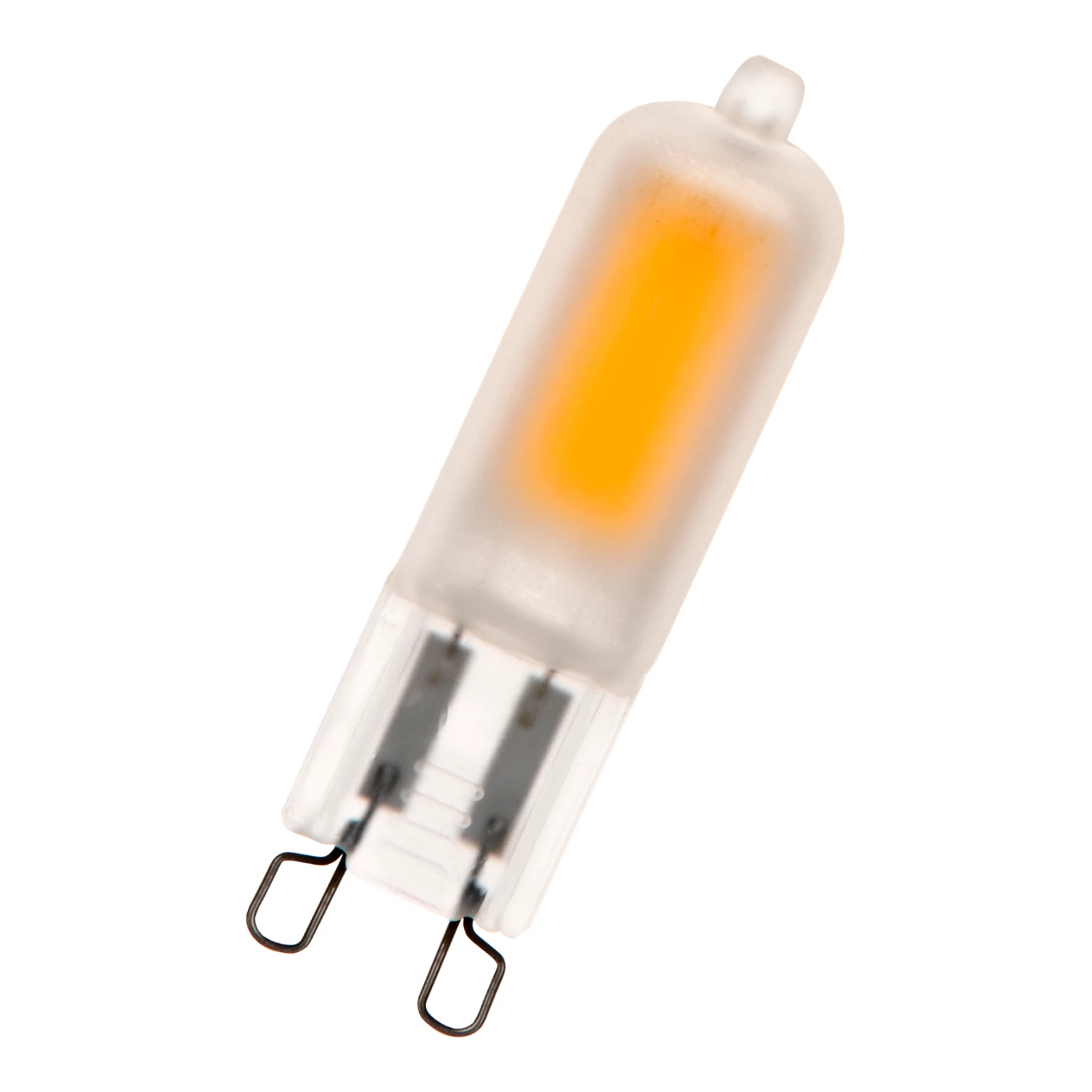

BAI LED Compact G9 Glass 230V-240V 2W 220lm (22W) 2700K Frosted 300° 13x55mm Capsule LED-lamp
The LED compact series consists of lamps that are ideal as replacements for the 230V halogen lamps with G9 base due to their compact design. LED technology in a traditional halogen capsule for the same look & feel. Ambient temperature range: -20°C to +40°C.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED G9 Glass 2W (22W) 220lm 827 Frosted
Brand
Bailey
Productseries
LED Capsule
Producttype
G9 Glass
GTIN
8714681425985
Manufacturer articlenumber
142598
ETIM specifications
Socket
G9
Luminous flux [lm]
220 - 220
Nominal voltage [V]
220 - 240
Lamp power [W]
2 - 2
Colour temperature [K]
2700 - 2700
Diameter [mm]
13
Length [mm]
55
Dimmable
No
Lamp shape
Capsule/stick
Beam angle [°]
300 - 300
Colour
White
Type of glass/cover
Frosted
Lamp designation
Other
Colour rendering index CRI
80-89
Voltage type
AC
Filament lamp
No
Rated luminous flux according to IEC 62612 [lm]
220
Power factor
0.5
Lamp efficacy [lm/W]
110
Nominal current [mA]
17 - 17
Colour of light according to EN 12464-1
Warm white < 3300 K
Housing colour
Other
Average nominal lifetime [h]
15000
Degree of protection (IP)
IP20
Energy Efficiency Index (EEI)
90
Energy efficiency class
E
Colour consistency (McAdam ellipse)
SDCM6
Min. number of switching cycles
10000
Weighted energy consumption in 1000 hours [kWh]
2
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG1
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
Yes
Energy efficiency class according to EU regulation 2019/2015
E
With twilight switch
No
Material of light bulb
Glass
