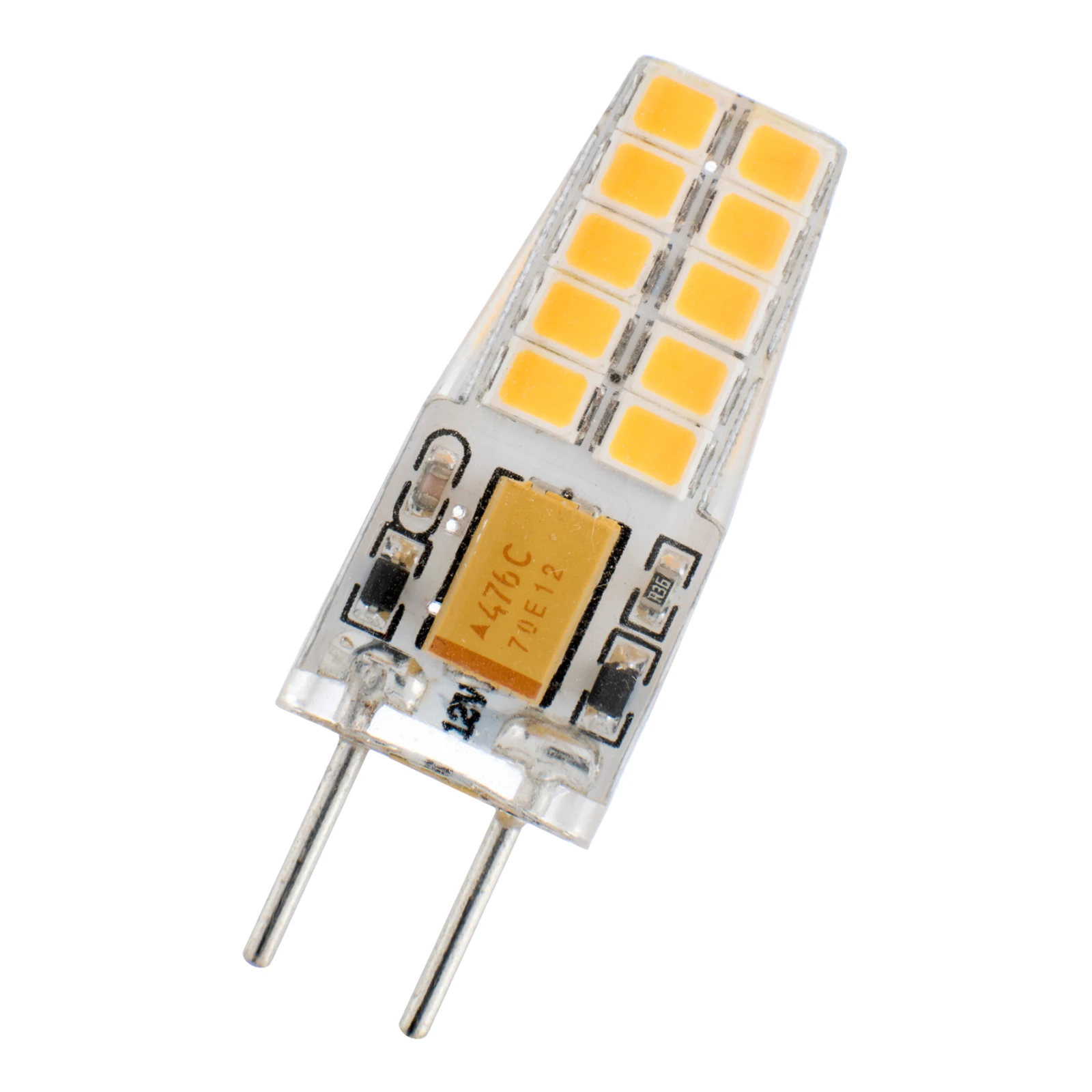

LED GY6.35 24V-28V 2.5W (27W) 280lm 830 Clear
Article number: 142448
BAI LED Compact GY6.35 24V-28V AC/DC 2.5W 3000K 280lm (27W) Clear 270° 12x37mm LED-lamp
The LED compact series consists of lamps that are ideal as replacements for halogen lamps due to their compact design. This GY6.35 version is suitable for applications with a 24-28V voltage source such as batteries and generators.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED GY6.35 24V-28V 2.5W (27W) 280lm 830 Clear
Brand
Bailey
Productseries
LED Capsule
Producttype
GY6.35
GTIN
8714681424483
Manufacturer articlenumber
142448
ETIM specifications
Socket
GY6.35
Luminous flux [lm]
280 - 280
Nominal voltage [V]
24 - 28
Lamp power [W]
2.5 - 2.5
Colour temperature [K]
3000 - 3000
Diameter [mm]
12
Length [mm]
37
Dimmable
No
Lamp shape
Capsule/stick
Beam angle [°]
270 - 270
Colour
White
Type of glass/cover
Clear
Lamp designation
Other
Colour rendering index CRI
80-89
Voltage type
AC/DC
Filament lamp
No
Rated luminous flux according to IEC 62612 [lm]
280
Power factor
0.7
Lamp efficacy [lm/W]
112
Nominal current [mA]
207 - 207
Colour of light according to EN 12464-1
Warm white < 3300 K
Housing colour
Colourless
Average nominal lifetime [h]
20000
Degree of protection (IP)
IP20
Energy Efficiency Index (EEI)
0.17
Energy efficiency class
No
Colour consistency (McAdam ellipse)
SDCM6
Min. number of switching cycles
10000
Weighted energy consumption in 1000 hours [kWh]
3
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
Other
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
Yes
Energy efficiency class according to EU regulation 2019/2015
No
With twilight switch
No
Material of light bulb
Plastic
