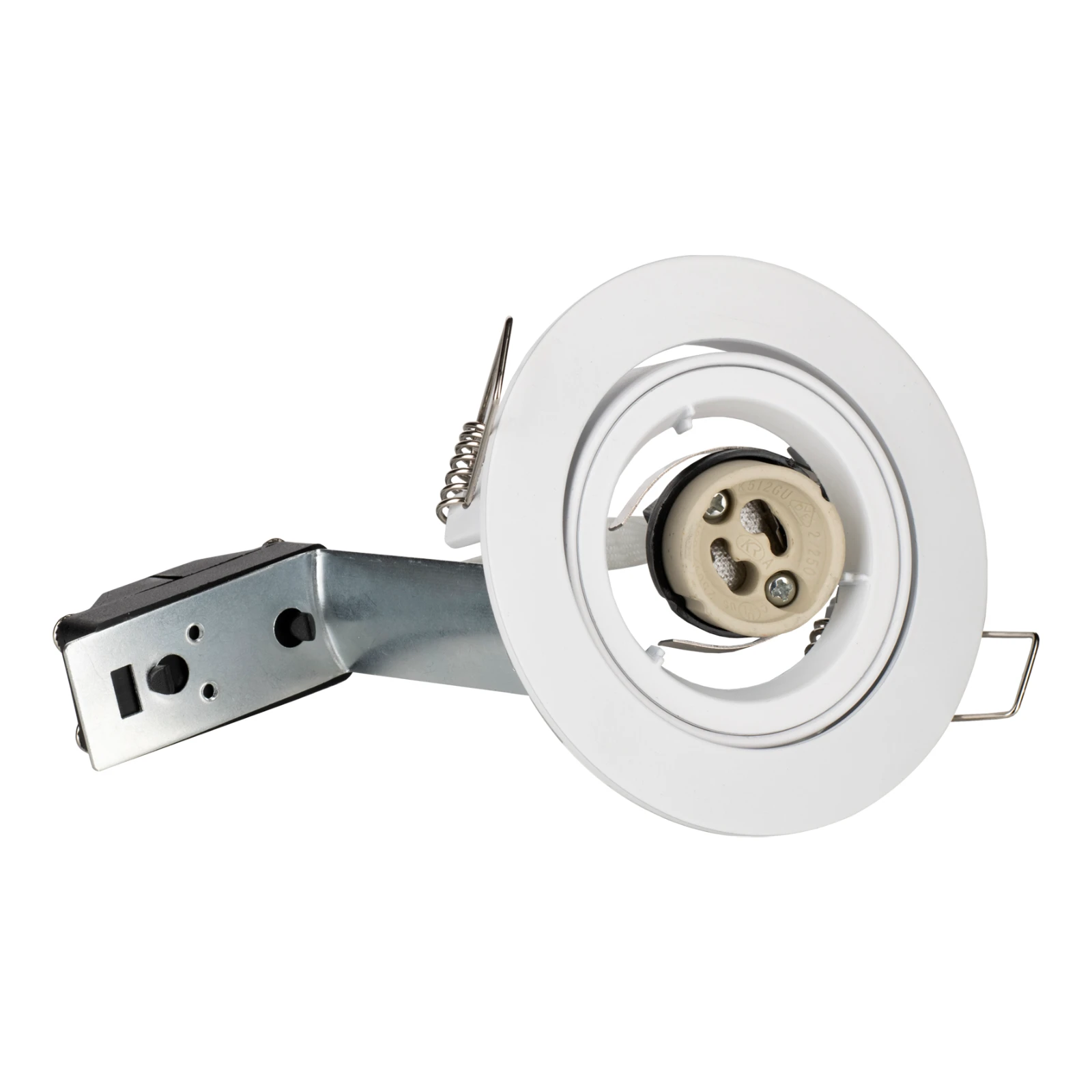

Spot GU10 Set Alu White Adjustable
Article number: 141968
BAI Spot Recessed Adjustable GU10 230V Matt White Alu Frame 93x100mm Twist Lock CLII Downlight Set Built-in 80mm
Recessed spot with aluminum frame. Suitable for mains voltage GU10 / GZ10 halogen / LED lamps. Maximum 50W. Includes GU10 mounting kit (lamp holder, bracket and junction box). Can be swiveled up to 20°.
Please read the manual before use.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Luminaires
ETIM class
Downlight/spot/floodlight
Name
Spot GU10 Set Alu White Adjustable
Brand
Bailey
Productseries
BaiLum recessed
Producttype
Spot GU10 Adjustable
GTIN
8714681419687
Manufacturer articlenumber
141968
ETIM specifications
Max. system power [W]
60
Nominal voltage [V]
220 - 240
With movement sensor
No
Lamp holder
GU10
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for wall mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Adjustability
Swivelling
With light sensor
No
Lamp type
HV halogen lamp
With light source
No
Suitable for number of light sources
1
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
White
Material cover
Without cover
Surface brushed
No
Voltage type
AC
Type of control gear
Not required
With control gear
No
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Reflector
None
Light distributor
None
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Energy efficiency class
A++
Degree of protection (IP)
IP20
Degree of protection (NEMA)
Other
Impact strength
IK00
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1 [°C]
-45 - 50
Suitable for lamp power [W]
3 - 50
Colour of light
Other
Emergency power supply system
None
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Height/depth [mm]
100
Outer diameter [mm]
93
Built-in height/depth [mm]
100
Built-in diameter [mm]
80 - 80
Type of wiring
Suitable for loop-through wiring
Conductor cross section [mm²]
0.75
Connection type
Screwed terminal
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
None
Photobiological safety according to EN 62471
Other
Dimmable
No
Built-in length [mm]
80 - 80
Built-in width [mm]
80 - 80
Built-in height [mm]
100 - 100
Number of poles
2
Compatible with Apple HomeKit
No
Dimming Sine Wave Reduction
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
With presence detector
No
IFTTT support available
No
Containing product according to 2019/2020/EU
No
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
Other
Operation by Bluetooth
No
Compatible with Casambi
No
UK Building Regs Part B fire rated - 30 minutes
No
UK Building Regs Part B fire rated - 60 minutes
No
UK Building Regs Part B fire rated - 90 minutes
No
