Pendant York E27 White 1.5M 2C Black/White
Article number: 141475
BAI Pendant Light York E27 Porcelain White with 1.5M Textile Cable Black/White 2x0.75mm² and Ceiling Cup CLII Max 60W Max. 2.5KG

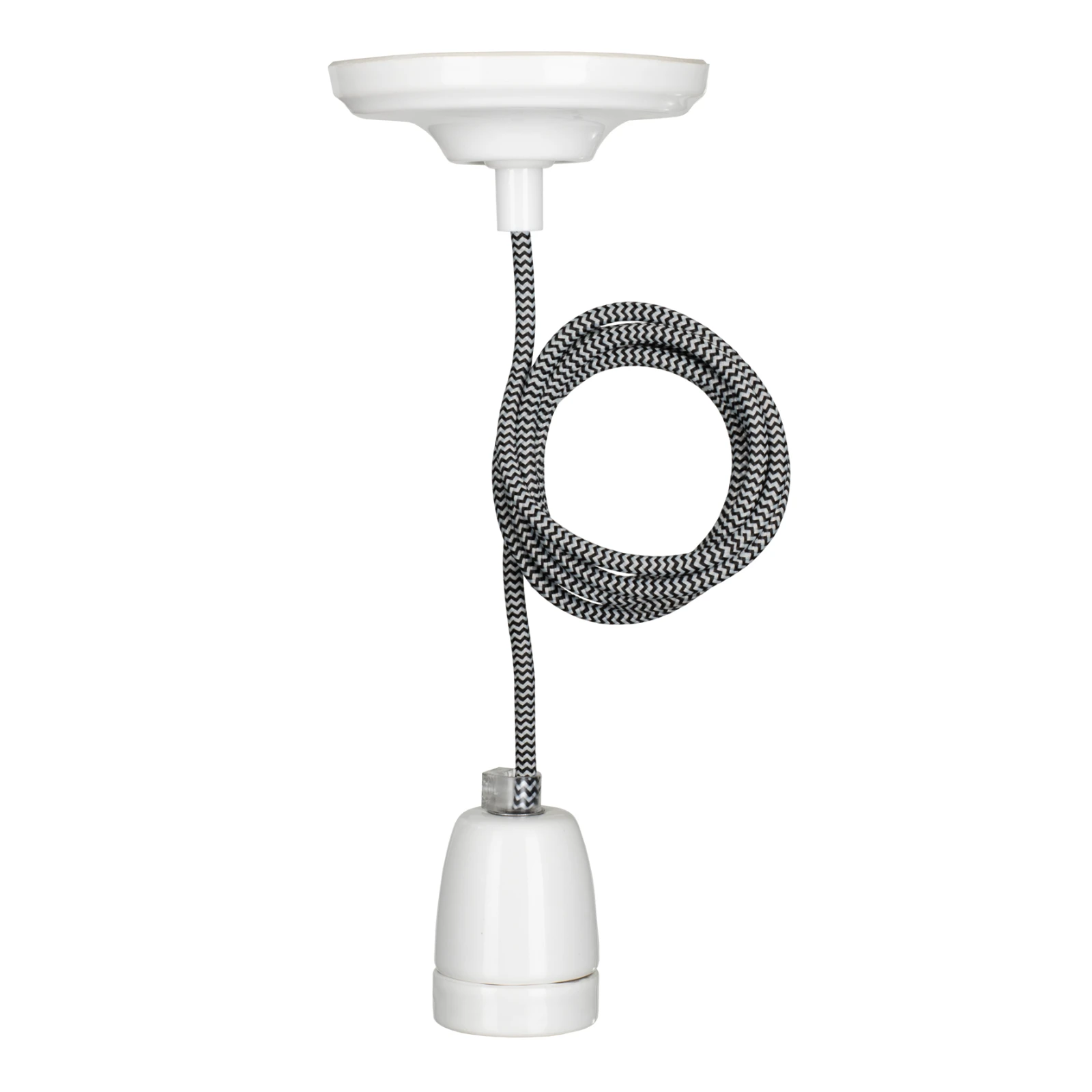

The retro look pendant set York consists of a porcelain ceiling cup, a black and white textile iron cable of 1.5 mtr and a porcelain lamp holder. Because the lamp holder has a separate screw ring, a separate lamp shade can possibly be attached to it. Suitable for E27 lamps. Max. load applicable 2.5KG.
Please read the manual before use.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Luminaires
ETIM class
Pendant luminaire
Name
Pendant York E27 White 1.5M 2C Black/White
Brand
Bailey
Productseries
BaiLum pendant
Producttype
Porcelain
GTIN
8714681414750
Manufacturer articlenumber
141475
ETIM specifications
Housing colour
White
Lamp holder
E27
Housing material
Other
Suitable for workplace according to EN 12464-1
No
Lamp type
LED exchangeable
Pendant length [mm]
1500 - 1500
With light source
No
Suitable for number of light sources
1
Suitable for light line configuration
No
Material cover
Without cover
Type of grid
None
Voltage type
AC
Nominal voltage [V]
220 - 240
Type of control gear
Not required
With control gear
No
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming programmable
No
Dimming DSI
No
Dimming RF
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
None
Reflector
None
Light distribution
Symmetric
Light outlet
Direct
Direct-/indirect proportion separately controllable
No
Degree of protection (IP)
IP20
Impact strength
IK02
Protection class according to IEC 61140
II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Suitable for emergency lighting
No
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
None
Suitable for lamp power [W]
1 - 60
Length [mm]
72
Diameter [mm]
47
With suspension
Yes
Type of wiring
Ending
Number of poles
2
Conductor cross section [mm²]
0.75
Connection type
Other
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation by Bluetooth
No
Dimmable
No
Containing product according to 2019/2020/EU
No
Emergency power supply system
None
With movement sensor
No
With presence detector
No
With light sensor
No
Connectable conductor cross section [mm²]
0.5 - 0.75
Compatible with Casambi
No
